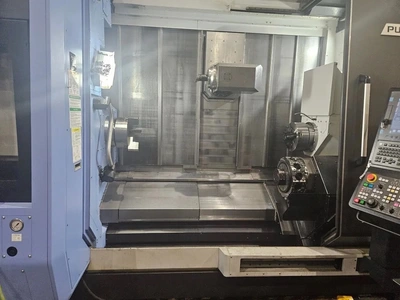

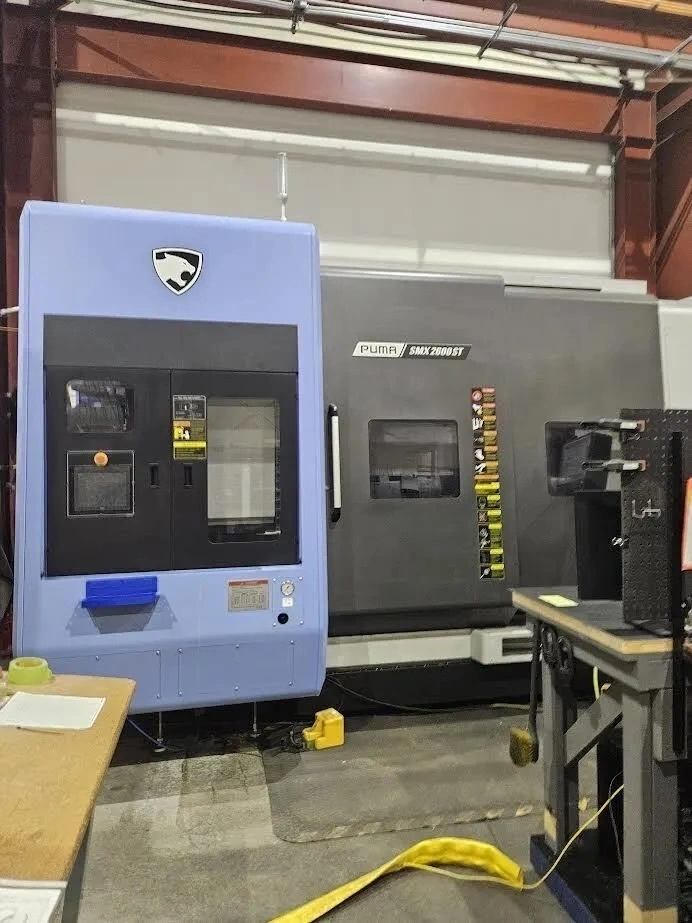

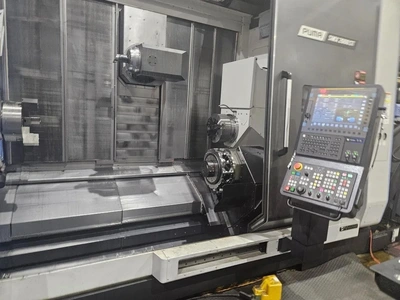

Used 2023 DN SOLUTIONS SMX 2600ST | Lathes CNC, Y-Axis / Multi Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
DN SOLUTIONS
Model:
SMX 2600ST
Year:
2023
Stock #:
10229
Status:
For Sale

Description

Explore the 2023 DN SOLUTIONS SMX 2600ST used CNC lathe with Y-Axis/Multi Axis. Equipped with FANUC 31IB control, auto door, and chip conveyor. Features include 12" B-axis travel and 80 ATC. Lightly used with less than 400 hours in R&D.

Swing Over Bed26"660.4 mm
Turning Diameter15.9"403.86 mm
Turning Length60.6"1,539.2 mm
Chuck Size 110"254 mm
Spindle Nose 1A2-8A2-8
Spindle Bore Diameter 13.6"91.44 mm
Bar Capacity 13.2"81.28 mm
Spindle Speeds 14,000 RPM4,000 RPM
Spindle Horsepower 140.2 hp30 kW
Chuck Size 210"254 mm
Spindle Nose 2A2-8A2-8
Spindle Bore Diameter 23.6"91.44 mm
Bar Capacity 23.2"81.28 mm
Spindle Speeds 24,000 RPM4,000 RPM
Spindle Horsepower 240.2 hp30 kW
B - Axis Head Travel63.2"63.2"
B - Axis Head Indexing00
B - Axis Milling Spindle TaperCapto C6Capto C6
B - Axis Milling Spindle Speed12,000 RPM12,000 RPM
B - Axis Milling Spindle Horse Power34.9 hp26 kW
ATC For Milling Spindle8080
Tool Diameter3.5" / 5.1"3.5" / 5.1"
Tool Length17.7"449.58 mm
Tool Weight26.5 lb12 kg
X1 - Axis Travel27.4"695.96 mm
X2 - Axis Travel60.6"1,539.2 mm
Z1 - Axis Travel62.4"1,585 mm
Z2 - Axis Travel60.6"1,539.2 mm
Y1 - Axis Travel11.8"299.72 mm
C - Axis Indexing 10.00010.0001
C - Axis Indexing 20.0010.001
Rapid Traverse Rate - X11889 ipm
Rapid Traverse Rate - X2945 ipm
Rapid Traverse Rate - Z11889 ipm
Rapid Traverse Rate - Z21417 ipm
Rapid Traverse Rate - Y11417 ipm
Turret Tool Positions 112 station12 station
Turret Rotary Tool Speeds 15,000 RPM5,000 RPM
Machine Weight39,683 lb17,999.9 kg
ControlCNC (FANUC 31 IB CNC COLOR CONTROL)CNC (FANUC 31 IB CNC COLOR CONTROL)
Dimensions193" x 119" x 111"193" x 119" x 111"
Weight3968339683

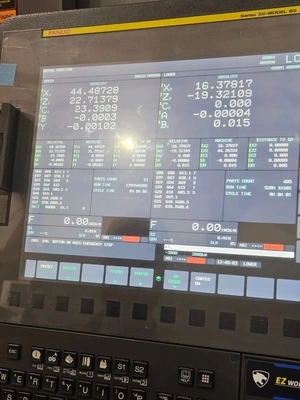

FANUC 31IB CNC CONTROL
SCALES
AUTO DOOR
TOOL PRESETTER

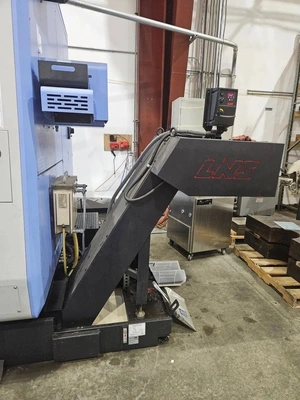

CHIP CONVEYOR

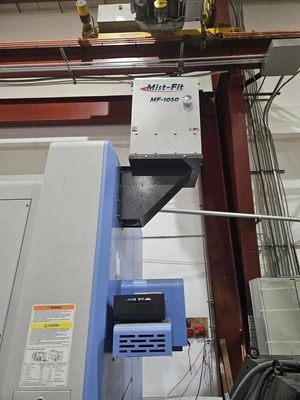

MIST COLLECTOR

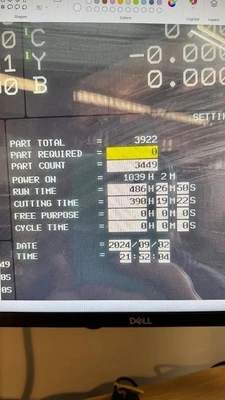

LESS THAN 400 HOURS OF USE, OUT OF R&D ENVIRONMENT

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
DN SOLUTIONS
Model:
SMX 2600ST
Year:
2023
Stock #:
10229
Status:
For Sale

Description

Explore the 2023 DN SOLUTIONS SMX 2600ST used CNC lathe with Y-Axis/Multi Axis. Equipped with FANUC 31IB control, auto door, and chip conveyor. Features include 12" B-axis travel and 80 ATC. Lightly used with less than 400 hours in R&D.

Specifications

Imperial

Swing Over Bed26"
Turning Diameter15.9"
Turning Length60.6"
Chuck Size 110"
Spindle Nose 1A2-8
Spindle Bore Diameter 13.6"
Bar Capacity 13.2"
Spindle Speeds 14,000 RPM
Spindle Horsepower 140.2 hp
Chuck Size 210"
Spindle Nose 2A2-8
Spindle Bore Diameter 23.6"
Bar Capacity 23.2"
Spindle Speeds 24,000 RPM
Spindle Horsepower 240.2 hp
B - Axis Head Travel63.2"
B - Axis Head Indexing0
B - Axis Milling Spindle TaperCapto C6
B - Axis Milling Spindle Speed12,000 RPM
B - Axis Milling Spindle Horse Power34.9 hp
ATC For Milling Spindle80
Tool Diameter3.5" / 5.1"
Tool Length17.7"
Tool Weight26.5 lb
X1 - Axis Travel27.4"
X2 - Axis Travel60.6"
Z1 - Axis Travel62.4"
Z2 - Axis Travel60.6"
Y1 - Axis Travel11.8"
C - Axis Indexing 10.0001
C - Axis Indexing 20.001
Rapid Traverse Rate - X11889 ipm
Rapid Traverse Rate - X2945 ipm
Rapid Traverse Rate - Z11889 ipm
Rapid Traverse Rate - Z21417 ipm
Rapid Traverse Rate - Y11417 ipm
Turret Tool Positions 112 station
Turret Rotary Tool Speeds 15,000 RPM
Machine Weight39,683 lb
ControlCNC (FANUC 31 IB CNC COLOR CONTROL)
Dimensions193" x 119" x 111"
Weight39683

Equipped With

FANUC 31IB CNC CONTROL
SCALES
AUTO DOOR
TOOL PRESETTER
CHIP CONVEYOR
MIST COLLECTOR
LESS THAN 400 HOURS OF USE, OUT OF R&D ENVIRONMENT
