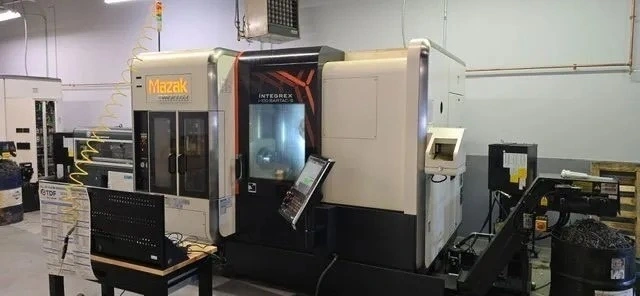

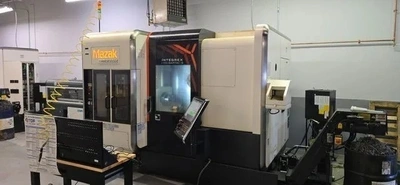

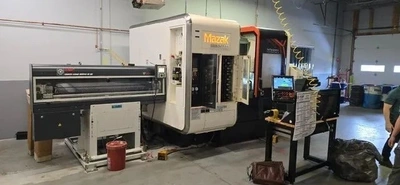

Used 2017 MAZAK INTEGREX I-100 BARTAC-S | Lathes CNC, Y-Axis / Multi Axis
Have one to sell?
ConditionUsed
1 available
2017 MAZAK INTEGREX I-100 BARTAC-S: Used CNC lathe with Y-Axis/multi-axis capabilities. Key features: MAZATROL SMOOTHX control, barfeed, high-pressure coolant, parts catcher, and more. Swing: 20.87", Chuck size: 8", Spindle speed: 2,000 RPM.

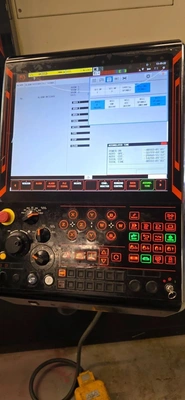

MAZATROL SMOOTHX CNC CONTROL

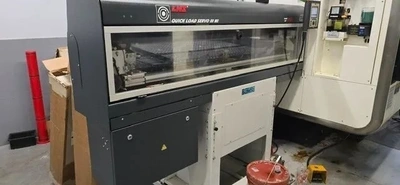

LNS QUICKLOAD S3 BARFEED
213 PSI HIGH PRESSURE COOLANT
PARTS CATCHER

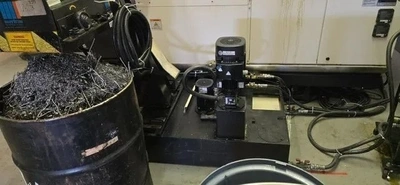

CHIP CONVEYOR
RENISHAW PROBE
2017 MAZAK INTEGREX I-100 BARTAC-S: Used CNC lathe with Y-Axis/multi-axis capabilities. Key features: MAZATROL SMOOTHX control, barfeed, high-pressure coolant, parts catcher, and more. Swing: 20.87", Chuck size: 8", Spindle speed: 2,000 RPM.
Imperial
| Swing Over Bed | 20.87" |
| Turning Diameter | 19.67" |
| Turning Length | 33.62" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2-8 |
| Spindle Bore Diameter 1 | 4.4" |
| Bar Capacity 1 | 4" |
| Spindle Speeds 1 | 2,000 RPM |
| Spindle Horsepower 1 | 15 hp |
| Chuck Size 2 | 6" |
| Spindle Nose 2 | A2-5 |
| Spindle Bore Diameter 2 | 2.4" |
| Bar Capacity 2 | 2" |
| Spindle Speeds 2 | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp |
| B - Axis Head Indexing | 240 |
| B - Axis Milling Spindle Taper | KM-63 |
| B - Axis Milling Spindle Speed | 12,000 RPM |
| B - Axis Milling Spindle Horse Power | 10 hp |

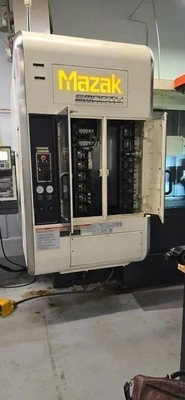

| ATC For Milling Spindle | 72 |
| Tool Diameter | 3.54" / 4.92" |
| Tool Length | 11.8" |
| Tool Weight | 22 lb |
| X1 - Axis Travel | 17.72" |
| Z1 - Axis Travel | 35.59" |
| Y1 - Axis Travel | 8.27" |
| C - Axis Indexing 1 | 0.0001 |
| W - Axis Travel Sub Spindle | 35.59" |
| Rapid Traverse Rate - X1 | 1969 ipm |
| Rapid Traverse Rate - Z1 | 1969 ipm |
| Rapid Traverse Rate - Y1 | 1575 ipm |
| Machine Weight | 29,960 lb |
MAZATROL SMOOTHX CNC CONTROL
LNS QUICKLOAD S3 BARFEED
213 PSI HIGH PRESSURE COOLANT
PARTS CATCHER
CHIP CONVEYOR
RENISHAW PROBE
