| Turning Length | 14.96" | 379.98 mm |
| Distance Between Spindles | 19.92" | 505.97 mm |
| Chuck Size 1 | 8" | 203.2 mm |
| Spindle Nose 1 | A2 - 6 | A2 - 6 |
| Spindle Bore Diameter 1 | 2.87" | 72.898 mm |
| Bar Capacity 1 | 2.5" | 63.5 mm |
| Spindle Speeds 1 | 4,500 RPM | 4,500 RPM |
| Spindle Horsepower 1 | 15 hp | 11.2 kW |
| Chuck Size 2 | 6" | 152.4 mm |
| Spindle Nose 2 | FLAT NOSE | FLAT NOSE |
| Bar Capacity 2 | 2" | 50.8 mm |
| Spindle Speeds 2 | 4,500 RPM | 4,500 RPM |
| Spindle Horsepower 2 | 10 hp | 7.5 kW |
| X1 - Axis Travel | 8.7" | 220.98 mm |
| Z1 - Axis Travel | 15.75" | 400.05 mm |
| Y1 - Axis Travel | 3.94" | 100.08 mm |
| C - Axis Indexing 1 | 0.001 | 0.001 |
| C - Axis Indexing 2 | 0.001 | 0.001 |
| W - Axis Travel Sub Spindle | 19.92" | 505.97 mm |
| Rapid Traverse Rate - X1 | 945 ipm | |
| Rapid Traverse Rate - Z1 | 1062 ipm | |
| Rapid Traverse Rate - Y1 | 472 ipm | |
| Turret Tool Positions 1 | 12 station | 12 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 5 hp | 3.7 kW |
| Machine Weight | 13,007 lb | 5,899.9 kg |
| Control | CNC (FANUC 0I - TD CNC COLOR CONTROL) | CNC (FANUC 0I - TD CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |

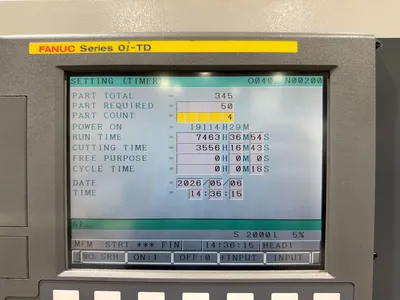

FANUC OI - TD CNC CONTROL
8.4" COLOR LCD
8", 6" 3 JAW HYDRAULIC CHUCKS
ROYAL COLLET CHUCKS FOR BOTH SPINDLES
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
TOOL EYE
WORK CATCHER
RIGID TAP ON THE MILLING HEAD
CUSTOM MACRO
VARIABLE LEAD THREAD CUTTING
EDGE MAGAZINE SHORT BAR LOAD SYSTEM
BARFEED INTERFACE
PATROL LIGHT
This equipment is currently unavailable. Similar equipment available now is shown below.
