| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 25.6" | 650.24 mm |
| Table Size - W | 23.6" | 599.44 mm |
| Weight On Table | 1,322 lb | 599.6 kg |
| Main Spindle Horse Power | 30 hp | 22.4 kW |
| Main Spindle Speeds | 18,000 RPM | 18,000 RPM |
| Max Workpiece Diameter and Height | 33.1" X 19.7" HT. | 33.1" X 19.7" HT. |
| Main Spindle Taper | 40 | 40 |
| X - Axis Travel | 29.5" | 749.3 mm |
| Y - Axis Travel | 30.9" | 784.86 mm |
| Z - Axis Travel | 23.6" | 599.44 mm |
| A - Axis Travel | + - 120 | + - 120 |

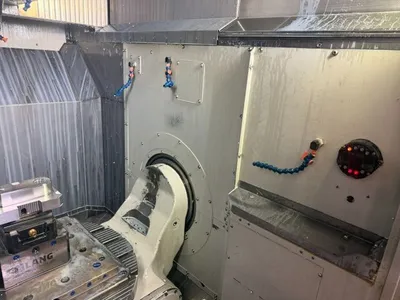

| C - Axis Travel Table Indexing | 360 | 360 |
| Rapid Traverse Rate - X | 1,771 in/min. | 45 m/min. |
| Rapid Traverse Rate - Y | 1,771 in/min. | 45 m/min. |
| Rapid Traverse Rate - Z | 1,771 in/min. | 45 m/min. |
| Automatic Tool Changer | 60 | 60 |
| Tool Diameter | 3.0", 4.9" | 3.0", 4.9" |
| Tool Length | 11.8" | 299.72 mm |
| Tool Weight | 17.6 lb | 8 kg |
| Machine Weight | 31,967 lb | 14,500 kg |
| Control | CNC (FANUC SERIES 31i - B5 CNC COLOR CONTROL) | CNC (FANUC SERIES 31i - B5 CNC COLOR CONTROL) |
| Dimensions | 146" L. 97" W. 122" HT. | 146" L. 97" W. 122" HT. |
| Weight | 0.00 | 0.00 |

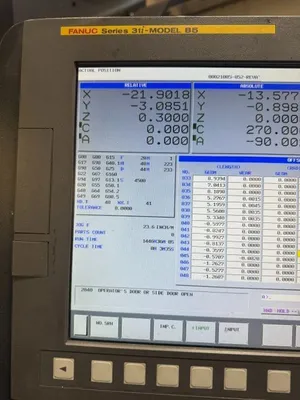

DOOSAN FANUC SERIES 31i - B5 CNC COLOR CONTROL
DSQ 3 AICC II 600 BLOCK LOOK AHEAD
1GB DATA SERVER
(IKC) INTELLIGENT KINEMATIC COMPENSATION FOR FINE CALIBRATION OF ROTARY AXES
6 PORT HYDRAULIC FIXTURE PREPERATION
EXTENDED MEMORY
SCALE FEEDBACK X, Y, Z AXIS
5 AXIS MACHINING CAPABILITY
RIGID TAPPING
SPINDLE CHILLER
RENISHAW NC4 LASER TOOL SETTER
RENISHAW RMP 600 SPINDLE PROBE
RENISHAW CT 40 TOOL SETTER CALIBRATION
COOLANT THROUGH SPINDLE
1446 RUN TIME HOURS
CHIP CONVEYOR
This equipment is currently unavailable. Similar equipment available now is shown below.
