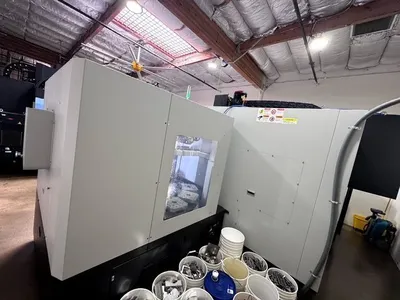

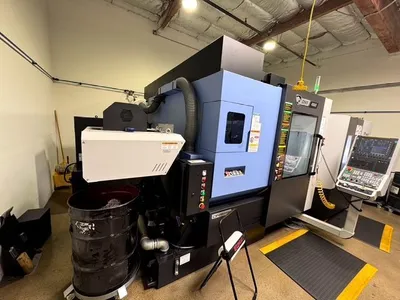

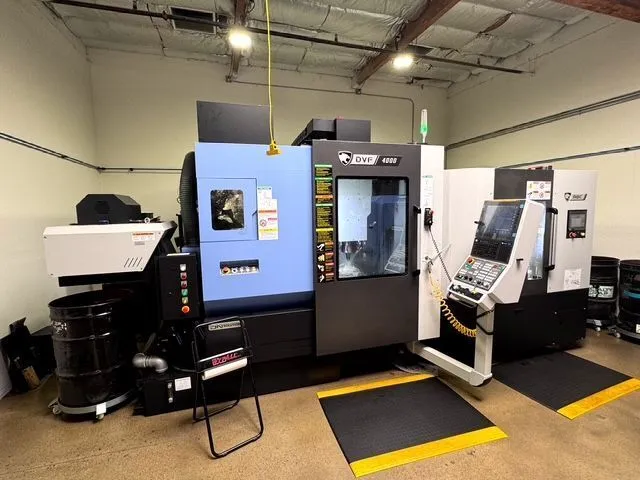

DOOSAN DVF 4000 5 AXIS VERTICAL MACHINING CENTER WITH 12 AWC PALLET CHANGER

DOOSAN DVF 4000 5 AXIS VERTICAL MACHINING CENTER WITH 12 AWC PALLET CHANGER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
DN SOLUTIONS
Model:
DVF 4000 12 AWC
Year:
2023
Stock #:
10234
Status:
For Sale

Description

DN Solutions Doosan DVF 4000, 5-axis CNC, 2023, used. Features 12 AWC pallet changer, 24.8 hp spindle, 15,000 RPM, and FANUC 31i-B5 control. Table size 9.8" x 9.8", weight capacity 287 lb, travels: X 24.4", Y 17.3", Z 16.9", 1,492 cutting hours.

Number Of Tables / Pallets1212
Table Size - L9.8"248.92 mm
Table Size - W9.8"248.92 mm
Weight On Table287 lb130.2 kg
Main Spindle Horse Power24.8 hp18.5 kW
Main Spindle Speeds15,000 RPM15,000 RPM
Max Workpiece Diameter and Height11.8" DIA. X 13.8" HT.11.8" DIA. X 13.8" HT.
Main Spindle Taper40.040.0
X - Axis Travel24.4"619.76 mm
Y - Axis Travel17.3"439.42 mm
Z - Axis Travel16.9"429.26 mm
B - Axis Travel-30 TO +110 DEGREES-30 TO +110 DEGREES
C - Axis Travel Table Indexing360 DEGREES360 DEGREES
Rapid Traverse Rate - X1,417 in/min.36 m/min.
Rapid Traverse Rate - Y1,417 in/min.36 m/min.
Rapid Traverse Rate - Z1,417 in/min.36 m/min.
Automatic Tool Changer6060
Tool Diameter3.0" , 4.9"3.0" , 4.9"
Tool Length11.8"299.72 mm
Tool Weight17.6 lb8 kg
Machine Weight16,535 lb7,500.2 kg
ControlCNC (FANUC 31I B5 CNC COLOR CONTROL)CNC (FANUC 31I B5 CNC COLOR CONTROL)

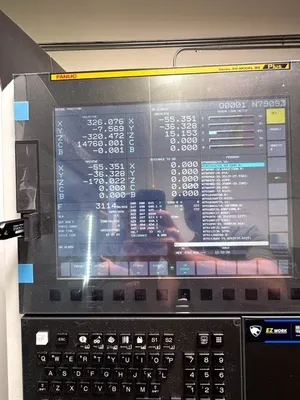

FANUC 31i - B5 PLUS CNC COLOR CONTROL
EZ GUIDE I CONVERSATIONAL PROGRAMMING

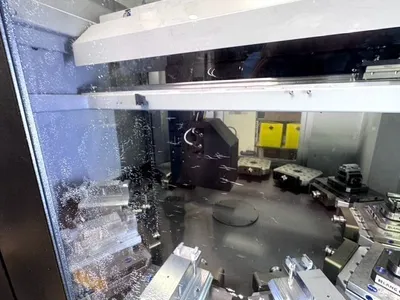

12 PALLET AUTO WORPIECE CHANGER
THROUGH SPINDLE COOLANT
SPINDLE CHILLER

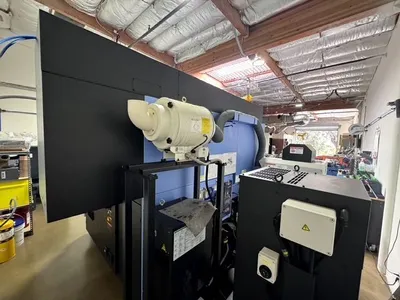

MIST COLLECTOR
RENISHAW OMP 600 SPINDLE PROBE
RENISHAW TOOL LENGTH MEASUREMENT LASER
1492 CUTTING HOURS
CHIP CONVEYOR
