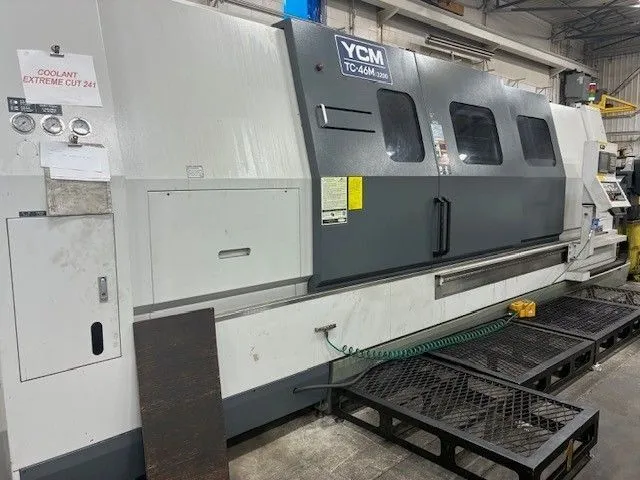

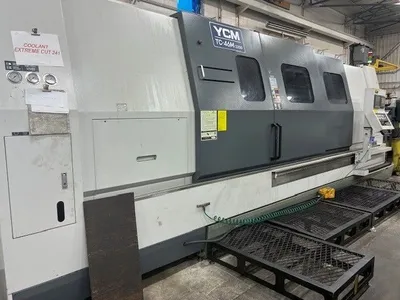

YCM TC - 46M/3200 CNC UNIVERSAL TURNING CENTER WITH MILLING & HYDRAULIC STEADY REST
Have one to sell?
ConditionUsed
1 available
YCM TC-46M/3200 CNC Turning Center, used 2013 model. Features include 33.46" swing, 134.45 machining length, FANUC TXP 200 FS control, automatic tool setter, hydraulic steady rest, and chip conveyor. Equipped for precision and versatility.

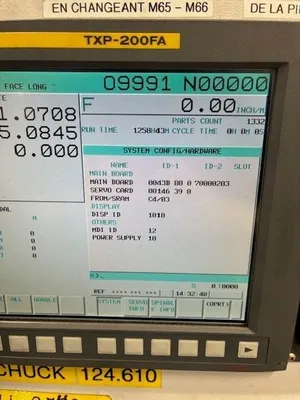

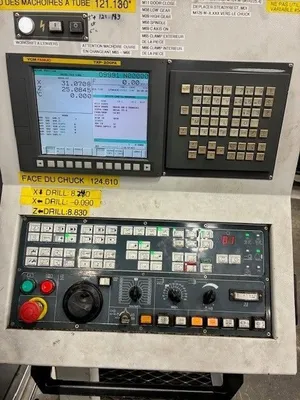

FANUC YCM TXP 200 FS CNC COLOR CONTROL
PROGRAMMABLE TAILSTOCK
AUTOMATIC TOOL SETTER
HYDRAULIC OPEN & CLOSE STEADY REST SLUB - 5 - ZS 1.9" - 12.2"
.001 C-AXIS INDEXING

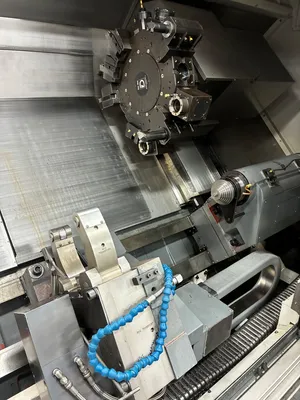

BMT 85 TURRET ROTARY TOOLS

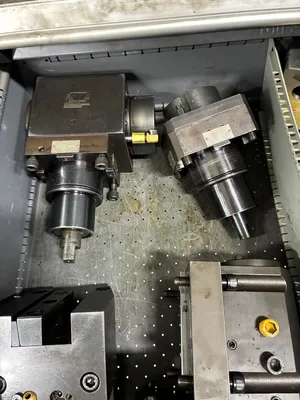

(3) I. D. ROTARY HEADS
(3) O. D. ROTARY HEADS
SPINDLE CHILLER
CUSTOM MACRO
CHIP CONVEYOR
1300 CUTTING HOURS
YCM TC-46M/3200 CNC Turning Center, used 2013 model. Features include 33.46" swing, 134.45 machining length, FANUC TXP 200 FS control, automatic tool setter, hydraulic steady rest, and chip conveyor. Equipped for precision and versatility.
Imperial
| Swing Over Bed | 33.46" |
| Machining Length | 125.98" |
| Distance Between Centers | 134.45" |
| Turning Diameter, Shaft Diameter | 28.53" |

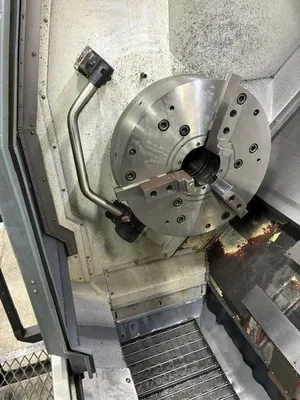

| Chuck Size 1 | 18" |
| Spindle Nose 1 | A2 - 15 |
| Spindle Bore Diameter 1 | 7.1" |
| Spindle Bar Capacity 1 | 6.5" |
| Spindle Speeds 1 | 1,200 RPM |
| Spindle Horsepower 1 | 50 hp |
| X1 - Axis Travel | 15.94" |
| Z1 - Axis Travel | 125.98" |
| C1 - Axis Travel | .001 |
| Rapid Traverse Rate - X1 | 640 in/min. |
| Rapid Traverse Rate - Z1 | 472 in/min. |
| Spindle Torque | 3900 |
| Gear Ranges | 2 |
| Turret Configuration 1 | 10 |
| Turret Rotary Tool Spindle Speed 1 | 3,000 RPM |
| Turret Rotary Tool Horse Power 1 | 30 hp |
| Tailstock Quill Diameter | 5.91" |
| Tailstock Taper | MT 5 |
| Tailstock Quill Travel | 5.91" |
| Programmable Tailstock | YES |
| Tailstock Travel | 119.1" |
| # Axis | 3 |
| Bar Capacity | 0.2559" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Control | CNC (FANUC TXP 200FS CNC COLOR CONTROL) |
| Weight | 0.00 |
FANUC YCM TXP 200 FS CNC COLOR CONTROL
PROGRAMMABLE TAILSTOCK
AUTOMATIC TOOL SETTER
HYDRAULIC OPEN & CLOSE STEADY REST SLUB - 5 - ZS 1.9" - 12.2"
.001 C-AXIS INDEXING
BMT 85 TURRET ROTARY TOOLS
(3) I. D. ROTARY HEADS
(3) O. D. ROTARY HEADS
SPINDLE CHILLER
CUSTOM MACRO
CHIP CONVEYOR
1300 CUTTING HOURS
