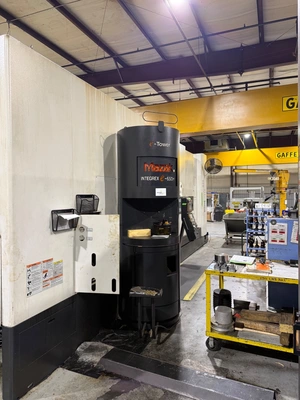

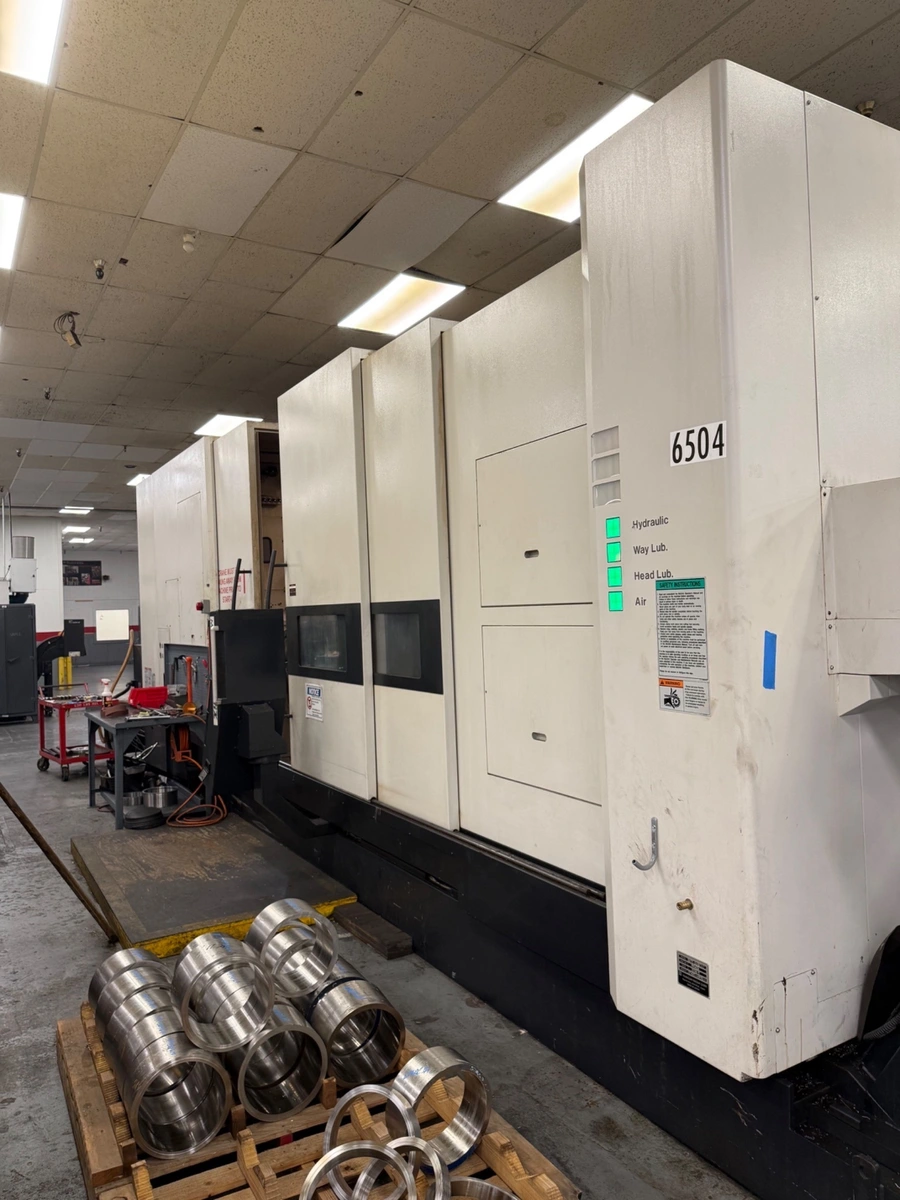

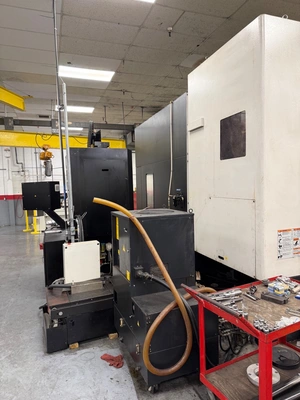

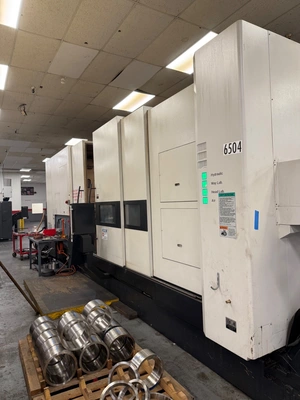

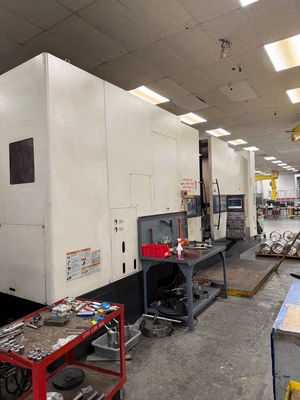

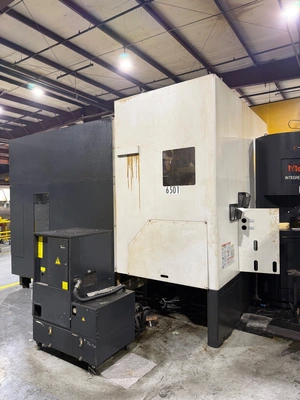

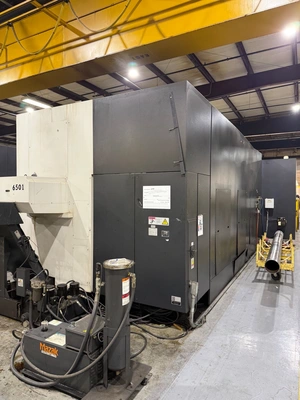

MAZAK E 650H/3000 CNC MULTI TASKING CENTER
Have one to sell?
ConditionUsed
1 available
Swing Over Bed: 36.2"
Turning Diameter: 36.2"
Turning Length: 120"
Distance Between Centers: 126"
Distance Between Spindles: 0

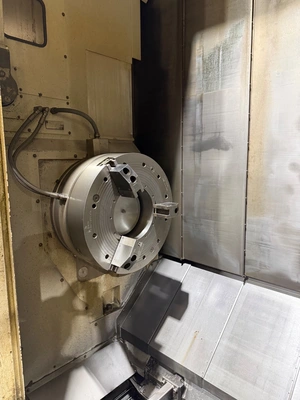

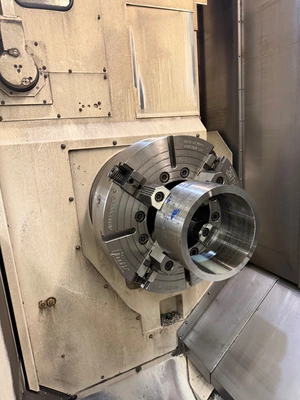

Chuck Size 1, 2: 18"
Spindle Nose 1, 2: A2 - 11
Spindle Bore Diameter 1, 2: 6.69"
Bar Capacity 1, 2: 0
Spindle Speeds 1, 2: 1600 RPM
Spindle Horsepower 1, 2: 70 HP

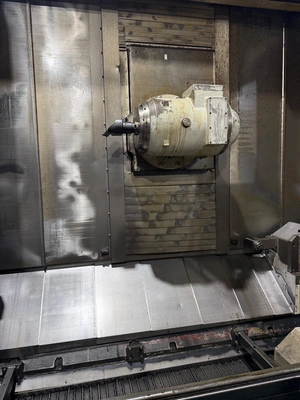

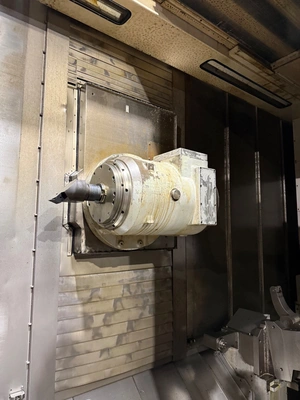

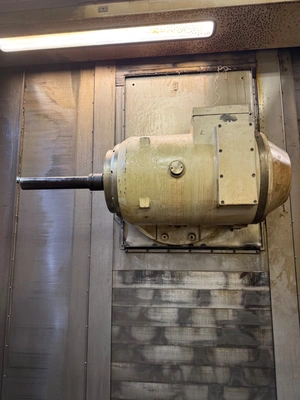

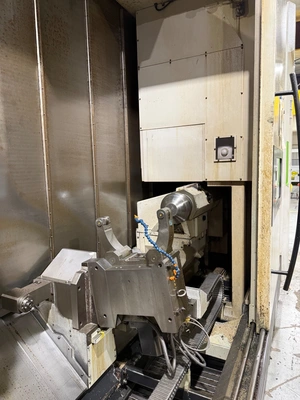

B - Axis Head Indexing: -30 ~ +210
B - Axis Milling Spindle Speed: 10,000 RPM
B - Axis Milling Spindle Taper: 50 CT
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 80 ATC
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 40.35"
Z - Axis Travel Z1, Z2, Z3: 122.91"
Y - Axis Travel Y1, Y2, Y3: 25.6"
C - Axis Indexing 1, 2: .0001 Degrees
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2, X3: 1575 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1575 IPM
Turret Tool Positions 1, 2, 3: 0
Turret Rotary Tool Speeds 1, 2, 3: 0
Turret Rotary Tool Horse Power 1, 2, 3: 0
Tailstock Quill Diameter: 0
Tailstock Taper: MT 6
Tailstock Quill Travel: 6.30"
Programmable Tailstock: Yes
Tailstock Travel: 118.15"
Machine Weight: 96900 Lbs.

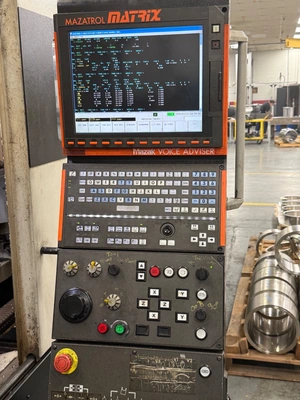

MAZATROL MATRIX E TOWER CNC CONVERSATIONAL CONTROL
CHIP CONVEYOR
RENISHAW PROBING
HIGH PRESSURE COOLANT THRU SPINDLE 1000 PSI
MIST COLLECTOR
AUTO TOOL MEASUREMENT
SPINDLE CHILLER
Y AXIS CONTROL
.0001 DEGREE B-AXIS INDEXING

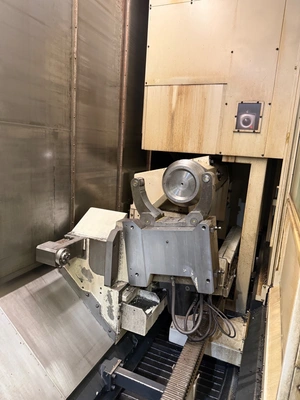

PROGRAMMABLE HYDRAULIC STEADY REST

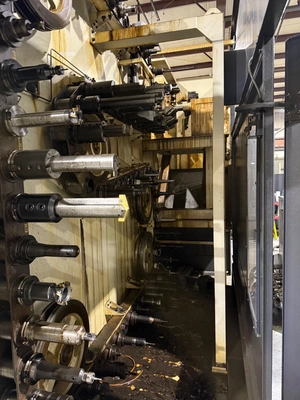

LARGE AUTOMATIC BORING BAR STOCKER SYSTEM
AUTO DOORS
DUAL FOOT TRIPS
Imperial
| Swing Over Bed | 36.2" |
| Turning Diameter | 36.2" |
| Turning Length | 120" |
| Distance Between Centers | 126" |
| Chuck Size 1 | 24" |
| Spindle Nose 1 | A2-11 |
| Spindle Bore Diameter 1 | 6.69" |
| Bar Capacity 1 | 6.69" |
| Spindle Speeds 1 | 1,600 RPM |
| Spindle Horsepower 1 | 60 hp |
| B - Axis Head Indexing | 0.0001 |
| B - Axis Milling Spindle Taper | #50 CT |
| B - Axis Milling Spindle Speed | 10,000 RPM |
| ATC For Milling Spindle | 80 |
| Tool Diameter | 5.31 |
| Tool Length | 19.69" |
| Tool Weight | 66 lb |
| X1 - Axis Travel | 40.35" |
| Z1 - Axis Travel | 122.91" |
| Y1 - Axis Travel | 25.6" |
| C - Axis Indexing 1 | 0.0001 |
| Rapid Traverse Rate - X1 | 1575 ipm |
| Rapid Traverse Rate - Z1 | 1575 ipm |
| Rapid Traverse Rate - Y1 | 1575 ipm |
| Tailstock Taper | MT #6 |
| Tailstock Quill Travel | 6.3" |
| Programmable Tailstock | 'Yes' |
| Tailstock Travel | 118.15 |
| Machine Weight | 77,900 lb |
| Control | CNC |
| Dimensions | 368" x 155" x 155" |
| Weight | 97900.00 |
Swing Over Bed: 36.2"
Turning Diameter: 36.2"
Turning Length: 120"
Distance Between Centers: 126"
Distance Between Spindles: 0
Chuck Size 1, 2: 18"
Spindle Nose 1, 2: A2 - 11
Spindle Bore Diameter 1, 2: 6.69"
Bar Capacity 1, 2: 0
Spindle Speeds 1, 2: 1600 RPM
Spindle Horsepower 1, 2: 70 HP
B - Axis Head Indexing: -30 ~ +210
B - Axis Milling Spindle Speed: 10,000 RPM
B - Axis Milling Spindle Taper: 50 CT
B - Axis Milling Spindle Horse Power: 0
ATC For Milling Spindle: 80 ATC
Tool Diameter: 0
Tool Length: 0
Tool Weight: 0
X - Axis Travel X1, X2, X3: 40.35"
Z - Axis Travel Z1, Z2, Z3: 122.91"
Y - Axis Travel Y1, Y2, Y3: 25.6"
C - Axis Indexing 1, 2: .0001 Degrees
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2, X3: 1575 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1575 IPM
Turret Tool Positions 1, 2, 3: 0
Turret Rotary Tool Speeds 1, 2, 3: 0
Turret Rotary Tool Horse Power 1, 2, 3: 0
Tailstock Quill Diameter: 0
Tailstock Taper: MT 6
Tailstock Quill Travel: 6.30"
Programmable Tailstock: Yes
Tailstock Travel: 118.15"
Machine Weight: 96900 Lbs.
MAZATROL MATRIX E TOWER CNC CONVERSATIONAL CONTROL
CHIP CONVEYOR
RENISHAW PROBING
HIGH PRESSURE COOLANT THRU SPINDLE 1000 PSI
MIST COLLECTOR
AUTO TOOL MEASUREMENT
SPINDLE CHILLER
Y AXIS CONTROL
.0001 DEGREE B-AXIS INDEXING
PROGRAMMABLE HYDRAULIC STEADY REST
LARGE AUTOMATIC BORING BAR STOCKER SYSTEM
AUTO DOORS
DUAL FOOT TRIPS
