Used 2015 MAZAK POWERMASTER UNIVERSAL 3000 | Lathes CNC, 2-Axis & 3-Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
MAZAK
Model:
POWERMASTER UNIVERSAL 3000
Year:
2015
Stock #:
10239
Status:
For Sale

Description

For sale: 2015 MAZAK POWERMASTER UNIVERSAL 3000 CNC lathe. Features 34" swing over bed, 122.5" distance between centers, 25" chuck, 60 hp, 750 RPM spindle. Equipped with MAZATROL 640MT control, chip conveyor, and high-pressure coolant system.

Swing Over Bed34"863.6 mm
Machining Length117.52"2,985 mm
Distance Between Centers122.5"3,111.5 mm
Turning Diameter, Shaft Diameter21.65"549.91 mm
Chuck Size 125"635 mm
Spindle Nose 1A2 - 20A2 - 20
Spindle Bore Diameter 112.5"317.5 mm
Spindle Bar Capacity 112.5"317.5 mm
Spindle Speeds 1750 RPM750 RPM
Spindle Horsepower 160 hp44.7 kW
X1 - Axis Travel25.79"655.07 mm
Z1 - Axis Travel123"3,124.2 mm
Rapid Traverse Rate - X1472 in/min.199.8 mm/sec.
Rapid Traverse Rate - Z1472 in/min.199.8 mm/sec.
Turret Configuration 188
Turret Configuration 26 station6 station
Tailstock Quill Diameter5.9"149.86 mm
Tailstock TaperMT 5MT 5
Tailstock Quill Travel6.2"157.48 mm
Programmable TailstockYESYES
Tailstock Travel100"2,540 mm
# Axis22
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (MAZATROL 640T CNC COLOR CONTROL)CNC (MAZATROL 640T CNC COLOR CONTROL)

MAZATROL 640MT CONTROL

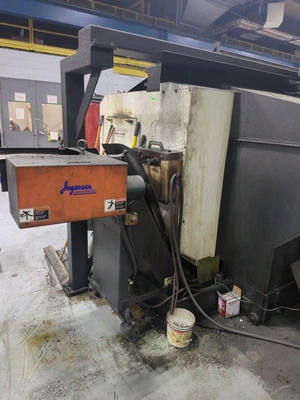

CHIP CONVEYOR

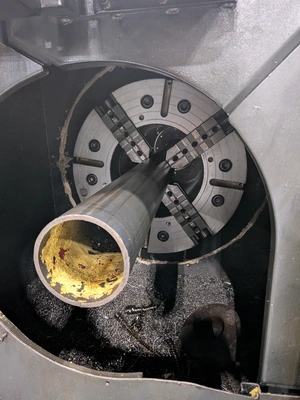

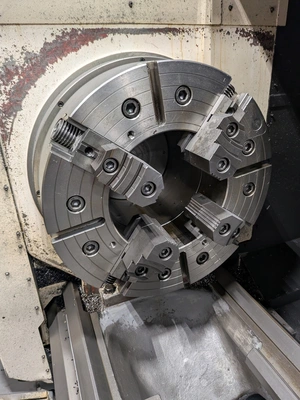

25" 4317-25 20A2-12.5 HD 4-JAW FRONT AND REAR
REAR CHUCK PREP
RE-THREAD FUNCTION
HI PRESSURE COOLANT 71PSI
