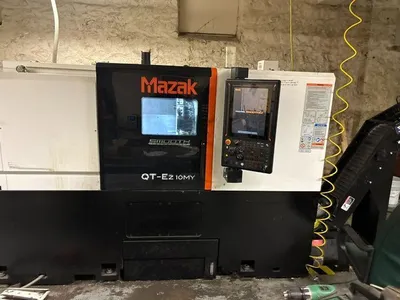

MAZAK QT EZ 10MY CNC LATHE W/MILLING,Y AXIS
Have one to sell?
ConditionUsed
1 available
Boost your productivity with the 2022 Mazak QT EZ 10MY CNC Lathe with Y-axis and milling. Features a 21.45" swing over bed, 10" hydraulic chuck, 1700 cutting hours, and a versatile 12-station turret. Ideal for precision tasks.
KITAGAWA 10" 3 JAW HYDRAULIC CHUCK
AUTOMATIC TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR

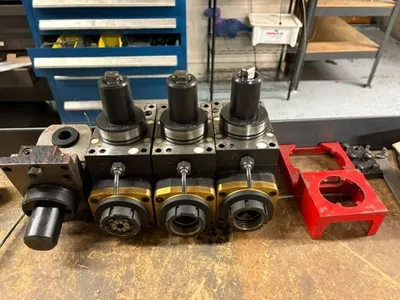

(3) O.D. MILLING HOLDERS
(3) I.D. MILLING HOLDERS
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
AUTO TLM, G54.1, SYNC. MILL TAPING, VARIABLE 600 SETS,
EIA HELICAL, TAP AND PATTERN CYCELS
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
CYLINDER, COMPARISON STOP
TILTED WORK PLANE
1700 CUTTING HOURS
Boost your productivity with the 2022 Mazak QT EZ 10MY CNC Lathe with Y-axis and milling. Features a 21.45" swing over bed, 10" hydraulic chuck, 1700 cutting hours, and a versatile 12-station turret. Ideal for precision tasks.
Imperial
| Swing Over Bed | 21.45" |
| Turning Diameter | 16.53" |
| Turning Length | 22.05" |
| Chuck Size 1 | 10" |
| Spindle Nose 1 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.58" |
| Bar Capacity 1 | 3" |
| Spindle Speeds 1 | 4,200 RPM |
| Spindle Horsepower 1 | 20 hp |
| X1 - Axis Travel | 8.5" |
| Z1 - Axis Travel | 23.75" |
| Y1 - Axis Travel | 4" |
| C - Axis Indexing 1 | 0.001 |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1299 ipm |
| Rapid Traverse Rate - Y1 | 472 ipm |
| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Programmable Tailstock | 'Yes' |
| Tailstock Travel | 21.75 |
| Machine Weight | 12,000 lb |
| Control | CNC (MAZATROL SMOOTH EZ CNC COLOR CONTROL) |
| Weight | 0.00 |
KITAGAWA 10" 3 JAW HYDRAULIC CHUCK
AUTOMATIC TOOL EYE
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
(3) O.D. MILLING HOLDERS
(3) I.D. MILLING HOLDERS
EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
AUTO TLM, G54.1, SYNC. MILL TAPING, VARIABLE 600 SETS,
EIA HELICAL, TAP AND PATTERN CYCELS
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
CYLINDER, COMPARISON STOP
TILTED WORK PLANE
1700 CUTTING HOURS
