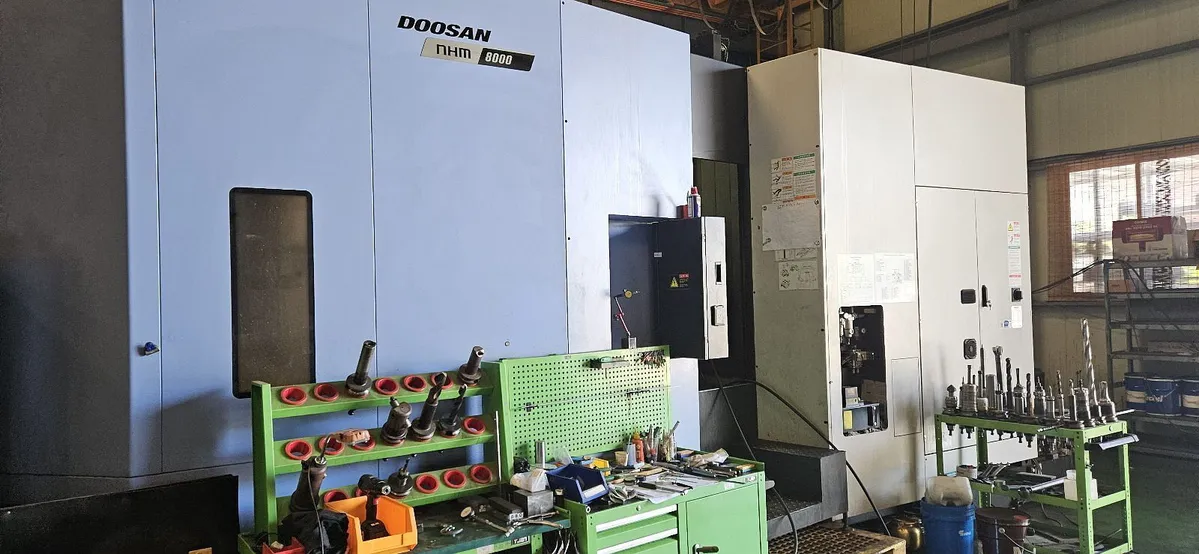

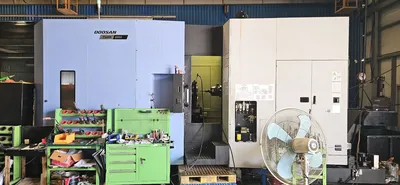

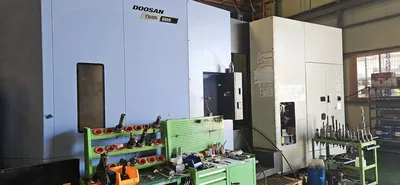

DOOSAN NHM 8000 CNC 3 AXIS HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2022 Doosan NHM 8000 CNC, 3 Axis Horizontal Machining Center with Fanuc 31iB control, 31.5" pallet size, 6,000 RPM spindle, 120-tool ATC, and features like HIGH PRESSURE THROUGH SPINDLE COOLANT, chip conveyor, and Ethernet function.

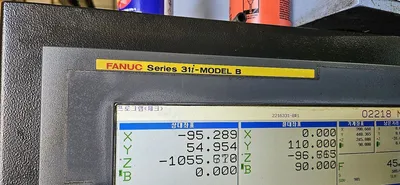

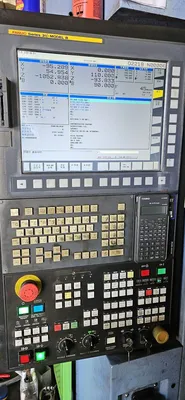

FANUC 31I - B CNC COLOR CONTROL
640 METERS MEMORY
PORTABLE MPG
EMBEDDED ETHERNET FUNCTION

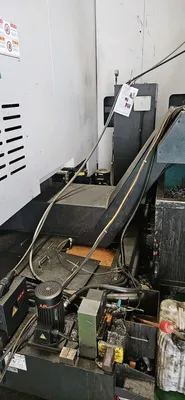

CHIP CONVEYOR
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE AIR CURTAIN
AUTO POWER OFF
OIL SKIMMER
200 PAIRS OF TOOL OFFSETS
HAND HELD MPG
EMBEDDED ETHERNET OPTION
WORK COORDINATE 48 PAIRS
COOLANT THRU SPINDLE
2022 Doosan NHM 8000 CNC, 3 Axis Horizontal Machining Center with Fanuc 31iB control, 31.5" pallet size, 6,000 RPM spindle, 120-tool ATC, and features like HIGH PRESSURE THROUGH SPINDLE COOLANT, chip conveyor, and Ethernet function.
Imperial
| Pallet Size - L | 31.5" |
| Pallet Size - W | 31.5" |
| Number of Pallets | 2 |
| Pallet Weight Capacity | 4,409 lb |
| Pallet Surface to Spindle Center | 2.8" ~ 44.3" |
| Pallet Center To Spindle Gage Line | 5.9" ~ 53.1" |
| Workpiece Dimensions | 57.1" x 61" |
| X - AxisTravel | 55.1" |
| Y - Axis Travel | 41.3" |
| Z - Axis Travel | 47.2" |
| B - Axis Travel | 1 DEGREE |
| Rapid Traverse Rate - X | 945 in/min. |
| Rapid Traverse Rate - Y | 945 ipm |
| Rapid Traverse Rate - Z | 945 ipm |
| Cutting Feed Rate | 472 in/sec. |
| Spindle Speed | 6,000 RPM |
| Spindle Taper | 50 |
| Number of Ranges | 2 |
| Main Motor | 46.9 hp |
| Automatic Tool Changer | 120 |
| Tool Diameter | 5.1", 12.6" |
| Tool Length | 24.8" |
| Tool Weight | 66 lb |
| Control | CNC (FANUC 31I - B CNC COLOR CONTROL) |
| Weight | 57000.00 |
FANUC 31I - B CNC COLOR CONTROL
640 METERS MEMORY
PORTABLE MPG
EMBEDDED ETHERNET FUNCTION
CHIP CONVEYOR
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE AIR CURTAIN
AUTO POWER OFF
OIL SKIMMER
200 PAIRS OF TOOL OFFSETS
HAND HELD MPG
EMBEDDED ETHERNET OPTION
WORK COORDINATE 48 PAIRS
COOLANT THRU SPINDLE
