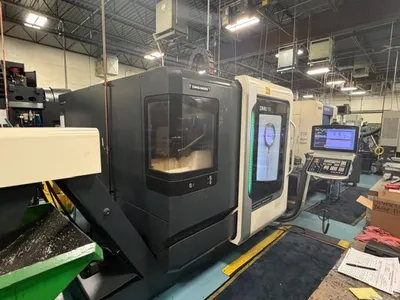

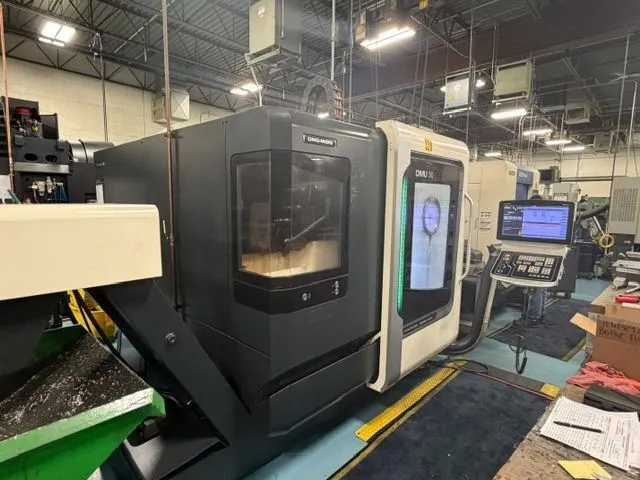

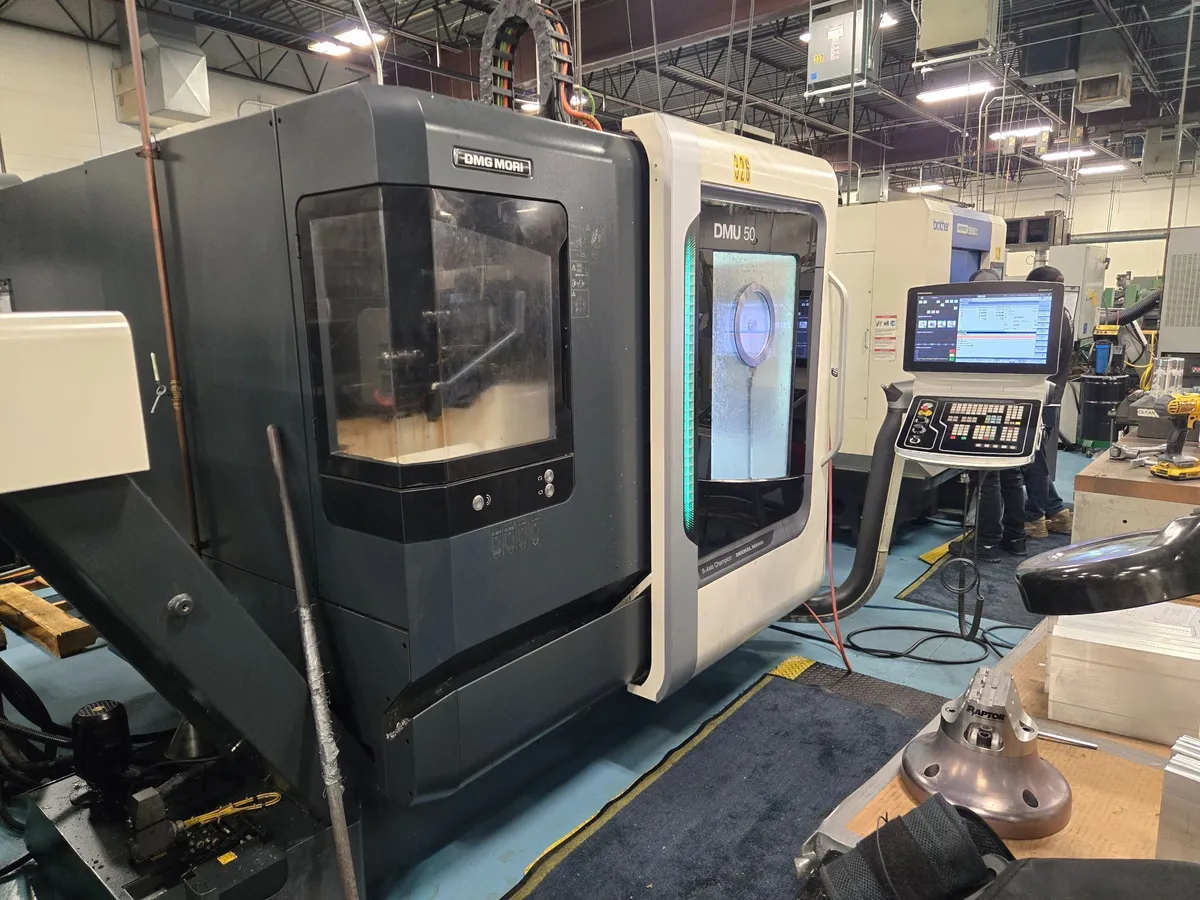

DMG MORI DMU 50 GEN II CNC 5 AXIS MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2017 DMG MORI DMU 50II CNC 5 Axis Machining Center: Features table size of 27.7"x19.7", 18,000 RPM spindle, 60 ATC, and cutting hours of 4500. Equipped with Siemens 840 DSL CNC control, spray gun, chip conveyor, and advanced measuring tools.
Number Of Tables / Pallets: 1
Table Size : 24.8" X 19.6"
Weight On Table: 660 LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 5.9" ~ 24.6"
Main Spindle Speeds: 18,000 RPM
Main Spindle Taper: HSK 63A
Main Spindle Horse Power: 20 HP
X - Axis Travel: 19.6"
Y - Axis Travel: 17.72"
Z - Axis Travel: 15.74"
A - Axis Travel: -5 +110 DEGREES
B - Axis Travel: 360 DEGREES
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 944, 944, 944, IPM
Cutting Feed Rate: 944 IPM
Vertical Turning Table Size, Number Of Tables: 0
Vertical Turning Table Speed: 0
Vertical Turning Table Horse Power: 0
Automatic Tool Changer: 60 ATC
Tool Diameter: 3.14" ~ 5.11 "
Tool Length: 11.8"
Tool Weight: 13.2 LBS.
Machine Weight: 11,462 LBS
CHIP CONVEYOR
ROTARY WINDOW
HAND HELD REMOTE PULSE GENERATOR

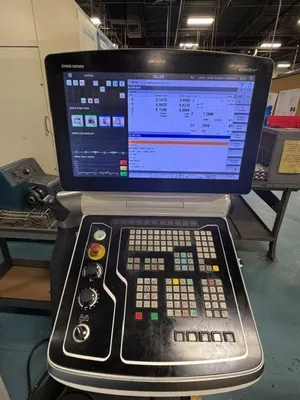

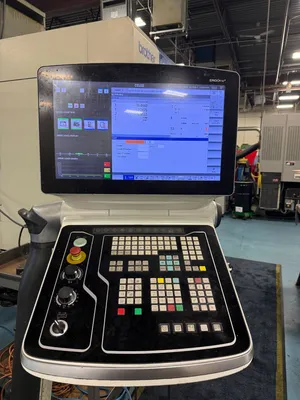

SIEMENS 840 DSL CNC CONTROL PREMIUM DESIGN WITH CELOS
AIR BLAST THROUGH SPINDLE CENTER
TOOL MEASURING IN MACHINING AREA BLUM LASER 3D QUICK SET
60 AUTO TOOL MAGAZINE
INFRARED MEASURING PROBE RENISHAW OMP 60
INTERNAL COOLANT WITH PAPER FILTER 40 BAR / 580 PSI COOLANT THROUGH SPINDLE
BAND PAST FILTRATION UNIT

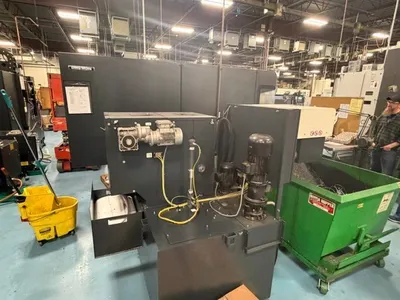

COOLANT TANK & CHIP CONVEYOR
2017 DMG MORI DMU 50II CNC 5 Axis Machining Center: Features table size of 27.7"x19.7", 18,000 RPM spindle, 60 ATC, and cutting hours of 4500. Equipped with Siemens 840 DSL CNC control, spray gun, chip conveyor, and advanced measuring tools.
Imperial
| Number Of Tables / Pallets | 1 |
| Table Size - L | 27.7" |
| Table Size - W | 19.7" |
| Weight On Table | 1,102 lb |
| Main Spindle Speeds | 18,000 RPM |
| Main Spindle Taper | HSK A 63 |
| X - Axis Travel | 19.7" |
| Y - Axis Travel | 17.7" |
| Z - Axis Travel | 15.7" |
| A - Axis Travel | - 5 +110 |
| B - Axis Travel | 360 |
| Rapid Traverse Rate - X | 1,181 in/min. |
| Rapid Traverse Rate - Y | 1,181 in/min. |
| Rapid Traverse Rate - Z | 1,181 in/min. |
| Cutting Feed Rate | 1,181 in/min. |
| Automatic Tool Changer | 60 |
| Tool Diameter | 3.1", 5.1" |
| Tool Length | 11.8" |
| Tool Weight | 13.2 lb |
| Machine Weight | 10,500 lb |
| Control | CNC (CELOS SIEMENS 840D CNC COLOR CONTROL) |
| Weight | 0.00 |
Number Of Tables / Pallets: 1
Table Size : 24.8" X 19.6"
Weight On Table: 660 LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 5.9" ~ 24.6"
Main Spindle Speeds: 18,000 RPM
Main Spindle Taper: HSK 63A
Main Spindle Horse Power: 20 HP
X - Axis Travel: 19.6"
Y - Axis Travel: 17.72"
Z - Axis Travel: 15.74"
A - Axis Travel: -5 +110 DEGREES
B - Axis Travel: 360 DEGREES
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 944, 944, 944, IPM
Cutting Feed Rate: 944 IPM
Vertical Turning Table Size, Number Of Tables: 0
Vertical Turning Table Speed: 0
Vertical Turning Table Horse Power: 0
Automatic Tool Changer: 60 ATC
Tool Diameter: 3.14" ~ 5.11 "
Tool Length: 11.8"
Tool Weight: 13.2 LBS.
Machine Weight: 11,462 LBS
CHIP CONVEYOR
ROTARY WINDOW
HAND HELD REMOTE PULSE GENERATOR
SIEMENS 840 DSL CNC CONTROL PREMIUM DESIGN WITH CELOS
AIR BLAST THROUGH SPINDLE CENTER
TOOL MEASURING IN MACHINING AREA BLUM LASER 3D QUICK SET
60 AUTO TOOL MAGAZINE
INFRARED MEASURING PROBE RENISHAW OMP 60
INTERNAL COOLANT WITH PAPER FILTER 40 BAR / 580 PSI COOLANT THROUGH SPINDLE
BAND PAST FILTRATION UNIT
COOLANT TANK & CHIP CONVEYOR
