MORI SEIKI SL 403B 800 CNC UNIVERSAL TURNING CENTER

MORI SEIKI SL 403B 800 CNC UNIVERSAL TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
MORI SEIKI
Model:
SL-403B 800
Year:
2006
Stock #:
10244
Status:
For Sale

Description

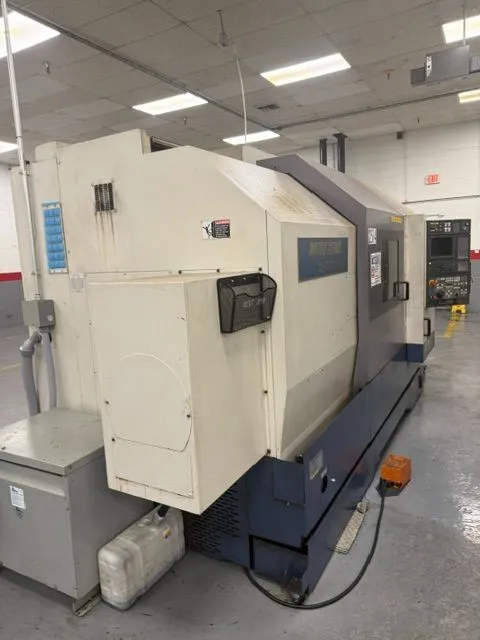

MORI SEIKI SL-403B 800 CNC Universal Turning Center, 2006. Featuring a 28" swing, 37.7" machining length, and 18" chuck. Equipped with FANUC MSG 501 18T CNC color control, tool presetter, and chip conveyor. Ideal for precision CNC operations.

Swing Over Bed28"711.2 mm
Machining Length37.7"957.58 mm
Distance Between Centers44.3"1,125.2 mm
Turning Diameter, Shaft Diameter24.4"619.76 mm
Chuck Size 118"457.2 mm
Spindle Nose 1A2 - 11A2 - 11
Spindle Bore Diameter 15.1"129.54 mm
Spindle Bar Capacity 14.5"114.3 mm
Spindle Speeds 12,400 RPM2,400 RPM
Spindle Horsepower 140 hp29.8 kW
X1 - Axis Travel13.6"345.44 mm
Z1 - Axis Travel39.2"995.68 mm
Rapid Traverse Rate - X1787 in/min.333.2 mm/sec.
Rapid Traverse Rate - Z1944 in/min.399.6 mm/sec.
Gear Ranges22
Turret Configuration 11212
Tailstock Quill Diameter4.3"109.22 mm
Tailstock TaperMT 5MT 5
Tailstock Quill Travel5.9"149.86 mm
Programmable TailstockYESYES
Tailstock Travel33.5"850.9 mm
# Axis22
Bar Capacity4.5"114.3 mm
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (FANUC 18T MSG 501 CNC COLOR CONVERSATIONAL CONTROL)CNC (FANUC 18T MSG 501 CNC COLOR CONVERSATIONAL CONTROL)
Weight24200.0024200.00

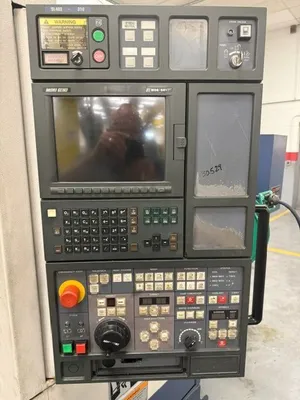

MORI FANUC MSG 501 18T CNC COLOR CONTROL
MAPPS CONVERSTIONAL PROGRAMMING
18" 3 JAW HYDRAULIC CHUCK PACKAGE
REMOVABLE TOOL PRESETTER

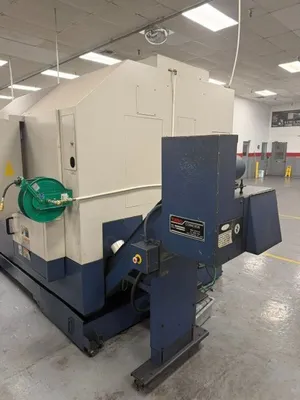

CHIP CONVEYOR
