DOOSAN PUMA GT 2600 CNC UNIVERSAL TURNING CENTER

DOOSAN PUMA GT 2600 CNC UNIVERSAL TURNING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DOOSAN
Model:
GT-2600
Year:
2021
Stock #:
10245
Status:
For Sale
Serial #:
ML0258-001891

Description

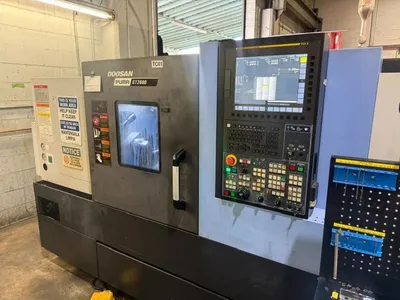

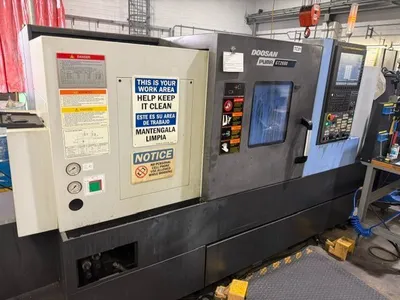

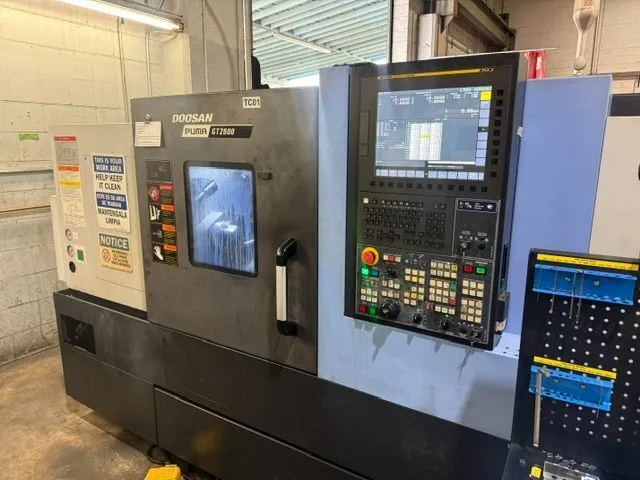

Used 2021 Doosan Puma GT 2600 CNC Turning Center, 2-axis, features a 24.8" swing over bed, 25.9" machining length, 30 hp spindle at 3,500 RPM, 10" 3-jaw hydraulic chuck, FANUC Series I Plus CNC, tool presetter, and chip conveyor included.

Swing Over Bed24.8"629.92 mm
Machining Length25.9"657.86 mm
Turning Diameter, Shaft Diameter18.1"459.74 mm
Chuck Size 110"254 mm
Spindle Nose 1A2 - 8A2 - 8
Spindle Bore Diameter 13.6"91.44 mm
Spindle Bar Capacity 13"76.2 mm
Spindle Speeds 13,500 RPM3,500 RPM
Spindle Horsepower 130 hp22.4 kW
X1 - Axis Travel10.4"264.16 mm
Z1 - Axis Travel26.8"680.72 mm
Rapid Traverse Rate - X1945 in/min.400.1 mm/sec.
Rapid Traverse Rate - Z11,181 in/min.500 mm/sec.
Gear Ranges22
Turret Configuration 11010
Tailstock Quill Diameter3.9"99.06 mm
Tailstock TaperMT 4MT 4
Tailstock Quill Travel3.9"99.06 mm
Programmable TailstockYESYES
Tailstock Travel26"660.4 mm
# Axis22
Bar Capacity3"76.2 mm
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
ControlCNC (FANUC SERIES I PLUS CNC COLOR CONTROL)CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)
Dimensions129" X 65" X 68"129" X 65" X 68"
Weight0.000.00

FANUC SERIES I PLUS CNC COLOR CONTROL
TOOL PRESETTER
CHIP CONVEYOR

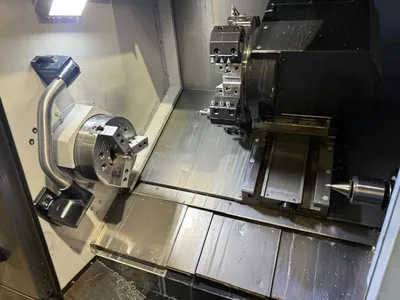

10" 3-JAW HYDRAULIC CHUCK
USB AND ETHERNET
SIGNAL TOWER

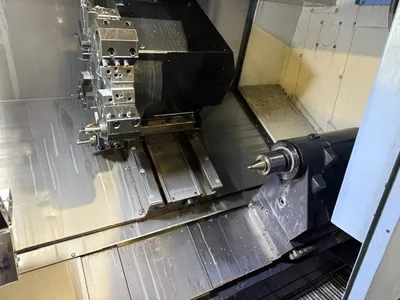

PROGRAMABLE BODY AND QUILL TAILSTOCK
