| Swing Over Bed | 23.2" | 589.28 mm |
| Machining Length | 50.6" | 1,285.2 mm |
| Distance Between Centers | 50.6" | 1,285.2 mm |
| Turning Diameter, Shaft Diameter | 15.7" | 398.78 mm |

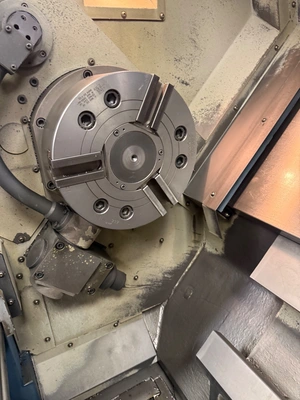

| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2-11 | A2-11 |
| Spindle Bore Diameter 1 | 4.53" | 115.06 mm |
| Spindle Bar Capacity 1 | 4.05" | 102.87 mm |
| Spindle Speeds 1 | 2,800 RPM | 2,800 RPM |
| Spindle Horsepower 1 | 35 hp | 26.1 kW |
| X1 - Axis Travel | 11.1" | 281.94 mm |
| Z1 - Axis Travel | 52.1" | 1,323.3 mm |
| Rapid Traverse Rate - X1 | 630 in/min. | 266.7 mm/sec. |
| Rapid Traverse Rate - Z1 | 945 in/min. | 400.1 mm/sec. |
| Gear Ranges | 2 | 2 |

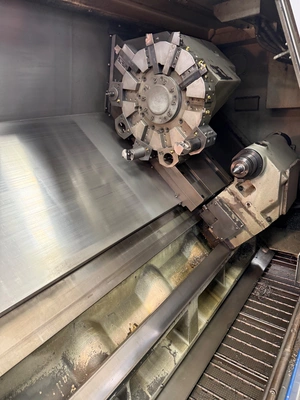

| Turret Configuration 1 | 10 | 10 |
| Tailstock Quill Diameter | 3.9" | 99.06 mm |
| Tailstock Quill Travel | 3.9" | 99.06 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 50.1" | 1,272.5 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 4" | 101.6 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Weight | 14580 | 14580 |

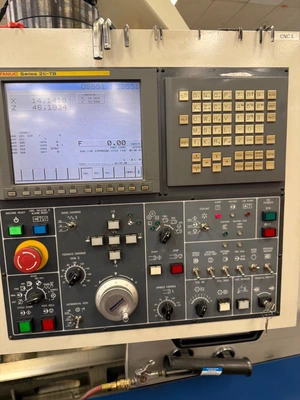

FANUC 21ITB CNC CONTROL
TOOL PRESETTER

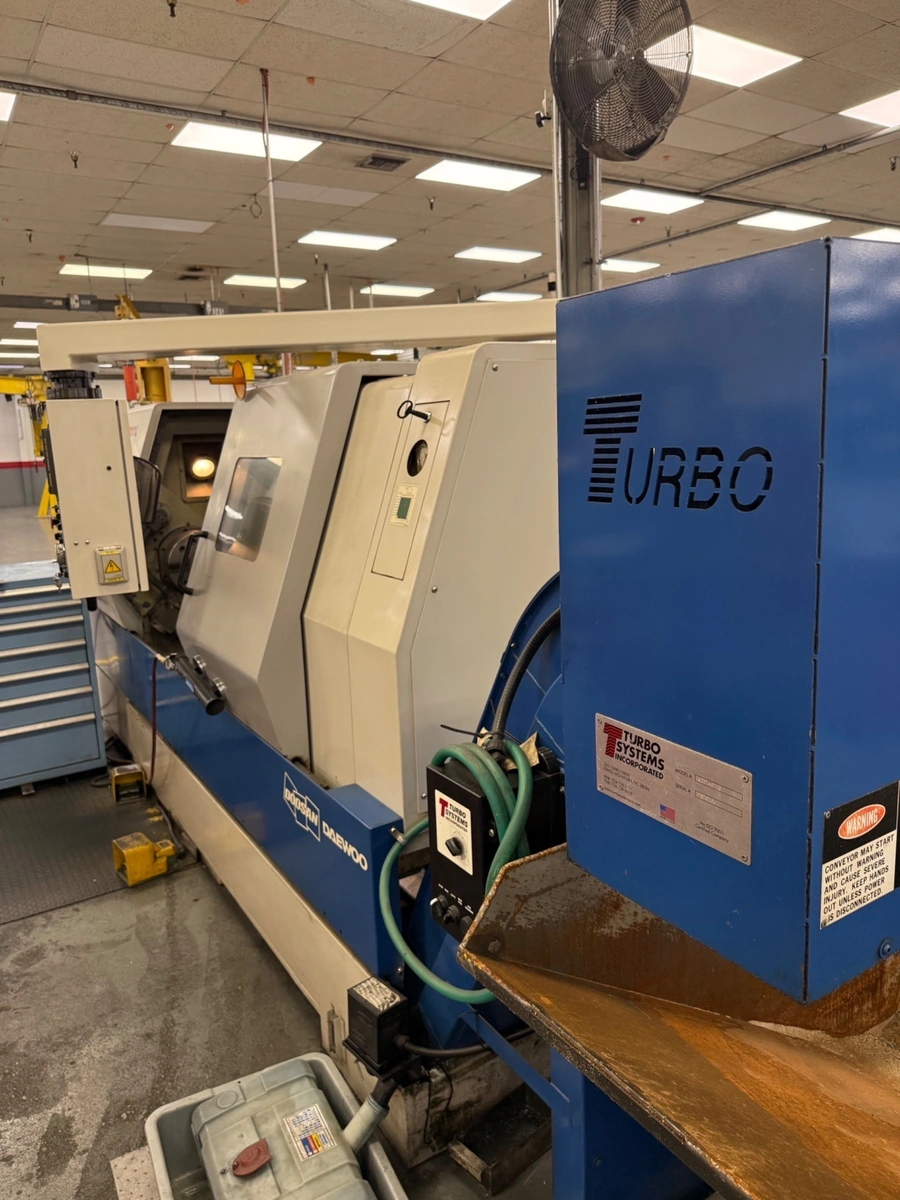

CHIP CONVEYOR
