HWACHEON VT 1150MC CNC 3 AXIS VERTICAL TURRET LATHE W/ MILLING

HWACHEON VT 1150MC CNC 3 AXIS VERTICAL TURRET LATHE W/ MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
HWACHEON
Model:
VT1150MC
Year:
2015
Stock #:
10247
Status:
For Sale

Description

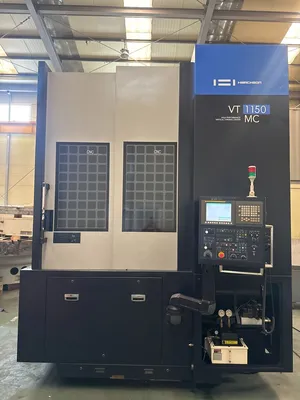

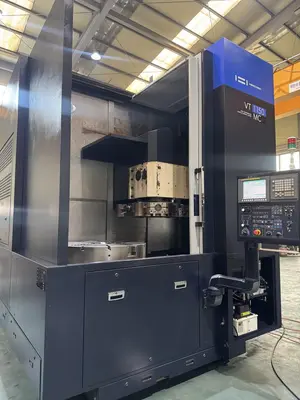

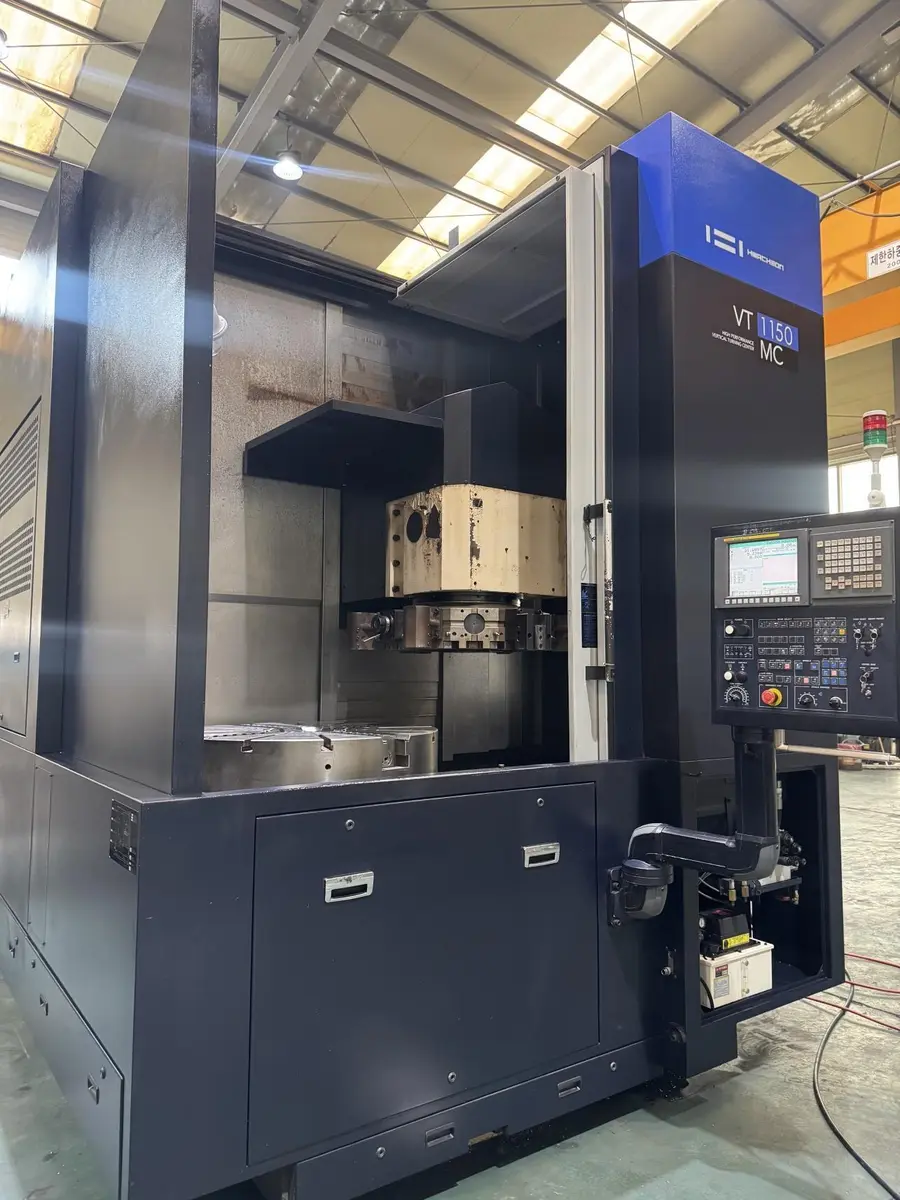

2015 HWACHEON VT1150MC CNC 3-axis vertical turret lathe, features a 40" table, 6,600 lb capacity, 53.15" swing diameter, and .001 C - Axis indexing for live milling capabilities . Equipped with FANUC OI-TD CNC color control and 12-station turret. Ready for precision tasks.

Table Diameter40"1,016 mm
Table Load Capacity6,600 lb2,993.7 kg
Swing Diameter53.15"1,350 mm
Turning Height37.4"949.96 mm
Spindle Nose520 FLAT520 FLAT
Table Speed630 RPM630 RPM
Main Motor73.5 hp54.8 kW
Number Of Ranges22
X - Axis Travel24.02"610.11 mm
Z - Axis Travel37.4"949.96 mm
Rapid Traverse Rate - X945 ipm
Rapid Traverse Rate - Z787 in/min.20 m/min.
C - Axis Indexing.001.001
Rotary Spindle Speed3,000 RPM3,000 RPM
Rotary Spindle Horsepower10 hp7.5 kW
Turret Configuration12 station12 station
Machine Weight55,116 lb25,000.2 kg
ControlCNC (FANUC 0I - TD CNC COLOR CONTROL)CNC (FANUC 0I - TD CNC COLOR CONTROL)
Weight55000.0055000.00

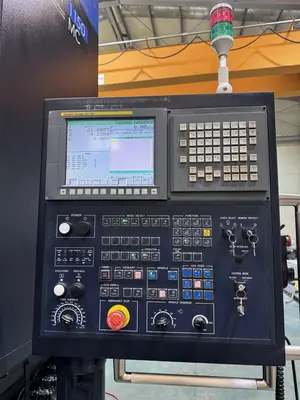

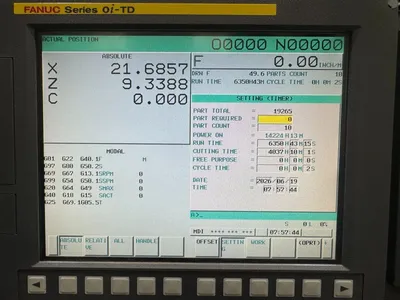

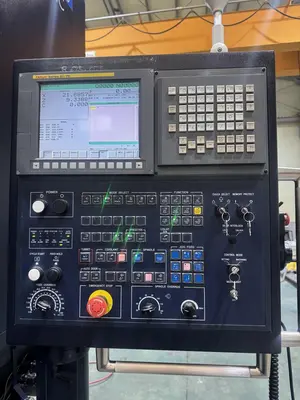

FANUC OI-TD CNC COLOR CONTROL
.001 C-AXIS FOR MILLING
SCALE FEEDBACK X & Z AXIS
TOOL PRE SETTER
HAND HELD MPG
TELESCOPIC GUARDS & COOLANT SHEILDS

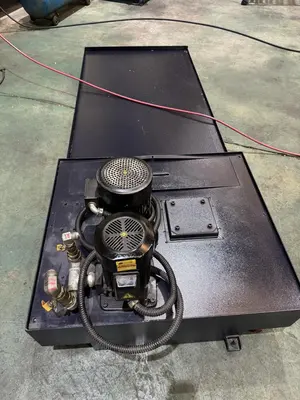

COOLANT SYSTEM
FULL ENCLOSURES
FULL COMPLIMENT OF TOOLING
FULL MANUALS

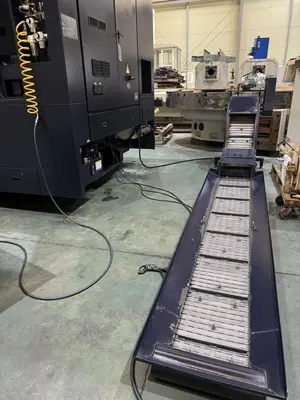

CHIP CONVEYOR
(1) I.D ROTARY HEAD
(1) O.D. ROTARY HEAD

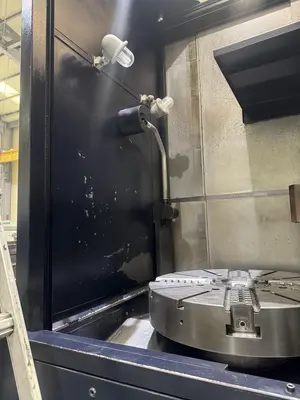

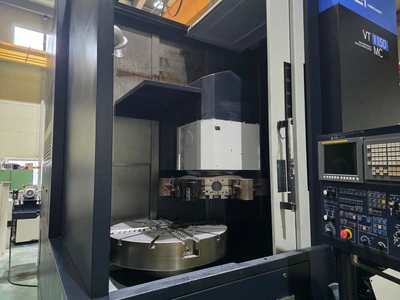

40" 4 JAW HYDRAULIC CHUCK
