| Swing Over Bed | 40.55" | 1,030 mm |
| Machining Length | 126" | 3,200.4 mm |
| Distance Between Centers | 128" | 3,251.2 mm |
| Turning Diameter, Shaft Diameter | 35.43" | 899.92 mm |
| Chuck Size 1 | 24" | 609.6 mm |
| Spindle Nose 1 | A1-15 | A1-15 |
| Spindle Bore Diameter 1 | 7.1" | 180.34 mm |
| Spindle Bar Capacity 1 | 6.5" | 165.1 mm |
| Spindle Speeds 1 | 1,500 RPM | 1,500 RPM |
| Spindle Horsepower 1 | 60 hp | 44.7 kW |
| X1 - Axis Travel | 18.5" | 469.9 mm |
| Z1 - Axis Travel | 127.4" | 3,236 mm |
| Rapid Traverse Rate - X1 | 480 in/min. | 203.2 mm/sec. |
| Rapid Traverse Rate - Z1 | 400 in/min. | 169.3 mm/sec. |
| Gear Ranges | 3 | 3 |
| Turret Configuration 1 | 12 | 12 |

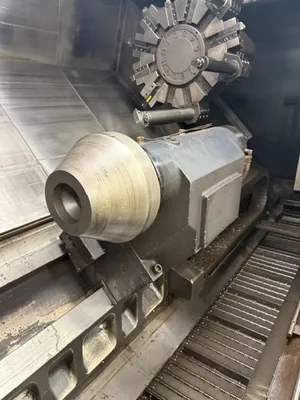

| Tailstock Quill Diameter | 7.1" | 180.34 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 7.9" | 200.66 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 123" | 3,124.2 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 6.46" | 164.08 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Weight | 48000 | 48000 |
FANUC 32IA CNC CONTROL

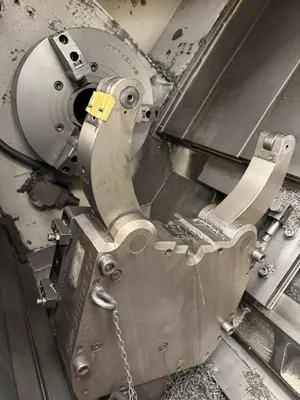

SMW AUTO BLOCK STEADYREST

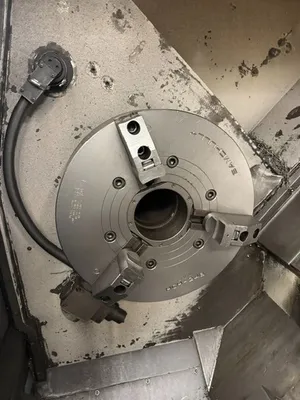

SAMCHULLY 24" HCH-24
CHIP CONVEYOR
MIST COLLECTOR
