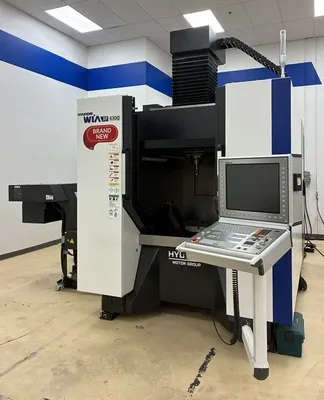

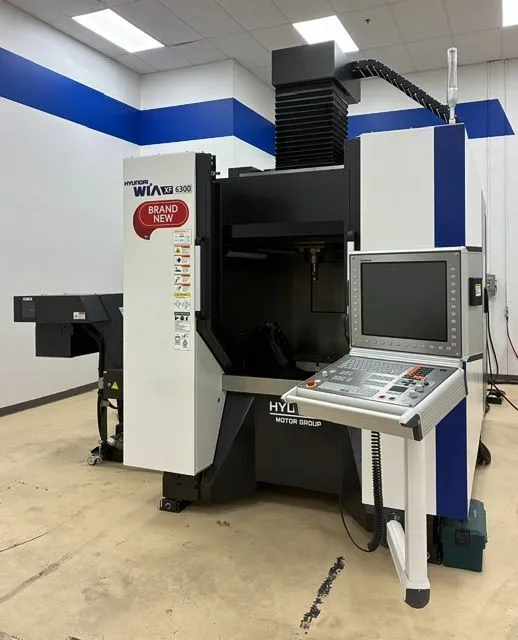

2018 HYUNDAI WIA XF-6300 CNC 5 AXIS MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2018 Hyundai WIA XF-6300 CNC 5-axis machining center featuring a 41.6 hp spindle, speeds up to 15,000 RPM, 68-tool auto changer, and Haidenhein TNC 640 3D CNC control. Equipped for precision, scale feedback on all axis, reliability, and high productivity. Ready for your shop.

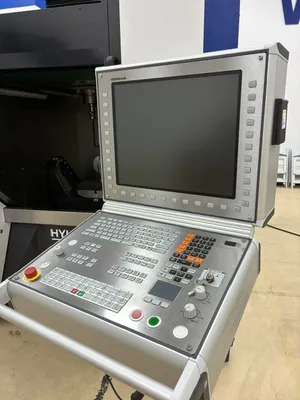

HAIDENHEIN TNC 640 3D CNC COLOR CONTROL
19" COLOR TFT MONITOR
21GB SSDR
5000 BLOCK LOOK AHEAD
MOLD PACKAGE INCLUDED
ETHERNET & USB
5 AXIS SIMULTANEOUS
EXTERNDED MEMORY
RENISHAW OMP 600 PART PROBE
68 AUTO TOOL CHANGER
Y AXIS DOUBLE BALL SCRE SCTRUCTURE
4 WAY STRUCTURE ON X AXIS
HIGH PRECISION LINEAR SCALE X, Y, & Z AXIS
A & C AXIS ROTARY SCALES
BED FLUSHING SYSTEM
1000 PSI HIGH PRESSURE THROUGH SPINDLE COOLANT
CHIP CONVEYOR
2018 Hyundai WIA XF-6300 CNC 5-axis machining center featuring a 41.6 hp spindle, speeds up to 15,000 RPM, 68-tool auto changer, and Haidenhein TNC 640 3D CNC control. Equipped for precision, scale feedback on all axis, reliability, and high productivity. Ready for your shop.
Imperial
| Number Of Tables / Pallets | 1 |
| Table Size - L | 24.8" |
| Table Size - W | 24.8" |
| Weight On Table | 1,323 lb |
| Main Spindle Horse Power | 41.6 hp |
| Spindle Nose To Table | 8.7" ~ 28.3" |
| Main Spindle Speeds | 15,000 RPM |
| Max Workpiece Diameter and Height | 31.5" L. ~ 19.7" HT. |
| Main Spindle Taper | HSK |
| X - Axis Travel | 25.6" |
| Y - Axis Travel | 23.6" |
| Z - Axis Travel | 19.7" |
| A - Axis Travel | - 30 ~ + 120 |
| Rapid Traverse Rate - X | 1,967 in/min. |
| Rapid Traverse Rate - Y | 1,967 in/min. |
| Rapid Traverse Rate - Z | 1,967 in/min. |
| Cutting Feed Rate | 1,967 in/min. |
| Automatic Tool Changer | 68 |
| Tool Diameter | 3.5", 4.9" |
| Tool Length | 11.8" |
| Tool Weight | 17.6 lb |
| Machine Weight | 24,251 lb |
| Control | CNC (HEIDENHAIN TNC 640 3D CNC COLOR CONTROL) |
| Dimensions | 146" L. 97" W. 122" HT. |
| Weight | 0.00 |
HAIDENHEIN TNC 640 3D CNC COLOR CONTROL
19" COLOR TFT MONITOR
21GB SSDR
5000 BLOCK LOOK AHEAD
MOLD PACKAGE INCLUDED
ETHERNET & USB
5 AXIS SIMULTANEOUS
EXTERNDED MEMORY
RENISHAW OMP 600 PART PROBE
68 AUTO TOOL CHANGER
Y AXIS DOUBLE BALL SCRE SCTRUCTURE
4 WAY STRUCTURE ON X AXIS
HIGH PRECISION LINEAR SCALE X, Y, & Z AXIS
A & C AXIS ROTARY SCALES
BED FLUSHING SYSTEM
1000 PSI HIGH PRESSURE THROUGH SPINDLE COOLANT
CHIP CONVEYOR
