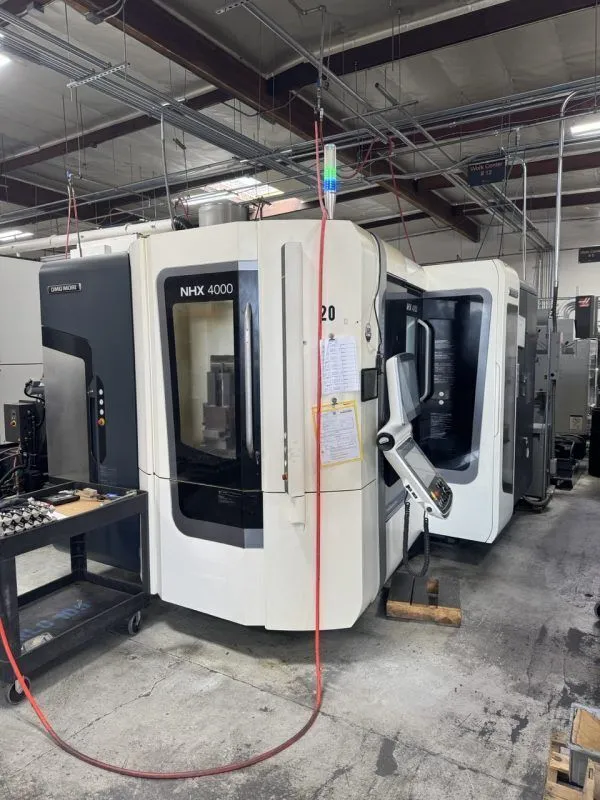

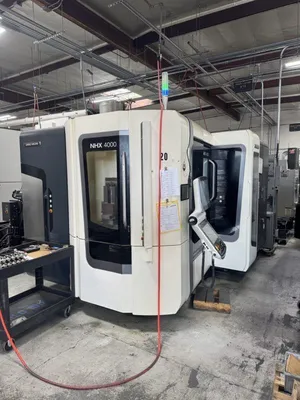

DMG MORI NHX 4000 CNC 4 AXIS HORIZONTAL MACHINING CENTER

DMG MORI NHX 4000 CNC 4 AXIS HORIZONTAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DMG MORI
Model:
NHX4000
Year:
2019
Stock #:
10251
Status:
For Sale

Description

Upgrade your production line with a 2019 DMG MORI NHX 4000 CNC 4-Axis Horizontal Machining Center. Featuring 15,000 RPM spindle, 60-tool automatic changer, dual pallets with 882 lb capacity each, and rapid traverse rate up to 2362 ipm. Equipped with CELOS Ergoline Touch.

Pallet Size - L15.7"398.78 mm
Pallet Size - W15.7"398.78 mm
Number of Pallets22
Pallet Weight Capacity882 lb400.1 kg
Pallet Surface to Spindle Center3.1" ~ 25.2"3.1" ~ 25.2"
Pallet Center To Spindle Gage Line2.8" ~ 28.7"2.8" ~ 28.7"
Workpiece Dimensions24.8" x 35.4"24.8" x 35.4"
X - AxisTravel22"558.8 mm
Y - Axis Travel22"558.8 mm
Z - Axis Travel26"660.4 mm
B - Axis Travel.001.001
Rapid Traverse Rate - X2,362 in/min.60 m/min.
Rapid Traverse Rate - Y2362 ipm
Rapid Traverse Rate - Z2362 ipm
Cutting Feed Rate2,362 in/sec.3,599.7 m/min.
Spindle Speed15,000 RPM15,000 RPM
Spindle Taper44
Main Motor50 hp37.3 kW
Automatic Tool Changer6060
Tool Diameter2.7", 5.5"2.7", 5.5"
Tool Length17.7"449.58 mm
Tool Weight26.4 lb12 kg
Tool Change Time2.5 sec.2.5 sec.
Machine Weight18,720 lb8,491.3 kg
ControlCNC (CELOS FANUC 31i - B CNC COLOR TOUCH SCREEN CONTROL)CNC (CELOS FANUC 31i - B CNC COLOR TOUCH SCREEN CONTROL)
Weight0.000.00

CELOS ERGOLINE TOUCH SCREEN WITH MAPPS V CNC CONTROL
ETHERNET & USB PORT
FULL 4TH AXIS
CHIP CONVEYOR
AVAILABLE MANUALS
DIRECT SCALE FEEDBACK X, Y, Z AXIS
SPINDLE CHILLER
TOOL PRESETTER
COOLANT THROUGH SPINDLE
COORDINATE ROTAION AND SCALING
HIGH SPEED SKIP
FANUC 31 IB CNC COLOR CONTROL
4 COLOR SIGNAL LAMP

Overview

Type:
Horizontal Machining Centers
Manufacturer:
DMG MORI
Model:
NHX4000
Year:
2019
Stock #:
10251
Status:
For Sale

Description

Upgrade your production line with a 2019 DMG MORI NHX 4000 CNC 4-Axis Horizontal Machining Center. Featuring 15,000 RPM spindle, 60-tool automatic changer, dual pallets with 882 lb capacity each, and rapid traverse rate up to 2362 ipm. Equipped with CELOS Ergoline Touch.

Specifications

Imperial

Pallet Size - L15.7"
Pallet Size - W15.7"
Number of Pallets2
Pallet Weight Capacity882 lb
Pallet Surface to Spindle Center3.1" ~ 25.2"
Pallet Center To Spindle Gage Line2.8" ~ 28.7"
Workpiece Dimensions24.8" x 35.4"
X - AxisTravel22"
Y - Axis Travel22"
Z - Axis Travel26"
B - Axis Travel.001
Rapid Traverse Rate - X2,362 in/min.
Rapid Traverse Rate - Y2362 ipm
Rapid Traverse Rate - Z2362 ipm
Cutting Feed Rate2,362 in/sec.
Spindle Speed15,000 RPM
Spindle Taper4
Main Motor50 hp
Automatic Tool Changer60
Tool Diameter2.7", 5.5"
Tool Length17.7"
Tool Weight26.4 lb
Tool Change Time2.5 sec.
Machine Weight18,720 lb
ControlCNC (CELOS FANUC 31i - B CNC COLOR TOUCH SCREEN CONTROL)
Weight0.00

Equipped With

CELOS ERGOLINE TOUCH SCREEN WITH MAPPS V CNC CONTROL
ETHERNET & USB PORT
FULL 4TH AXIS
CHIP CONVEYOR
AVAILABLE MANUALS
DIRECT SCALE FEEDBACK X, Y, Z AXIS
SPINDLE CHILLER
TOOL PRESETTER
COOLANT THROUGH SPINDLE
COORDINATE ROTAION AND SCALING
HIGH SPEED SKIP
FANUC 31 IB CNC COLOR CONTROL
4 COLOR SIGNAL LAMP
