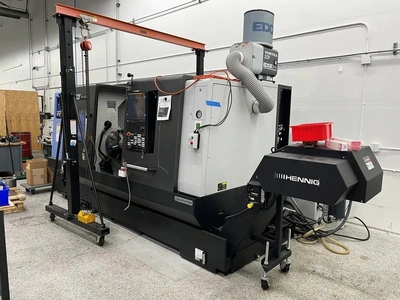

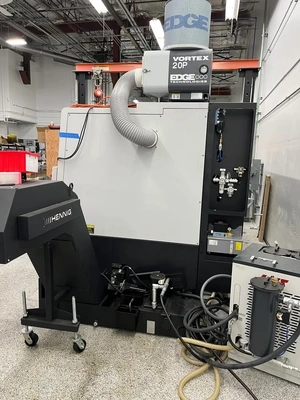

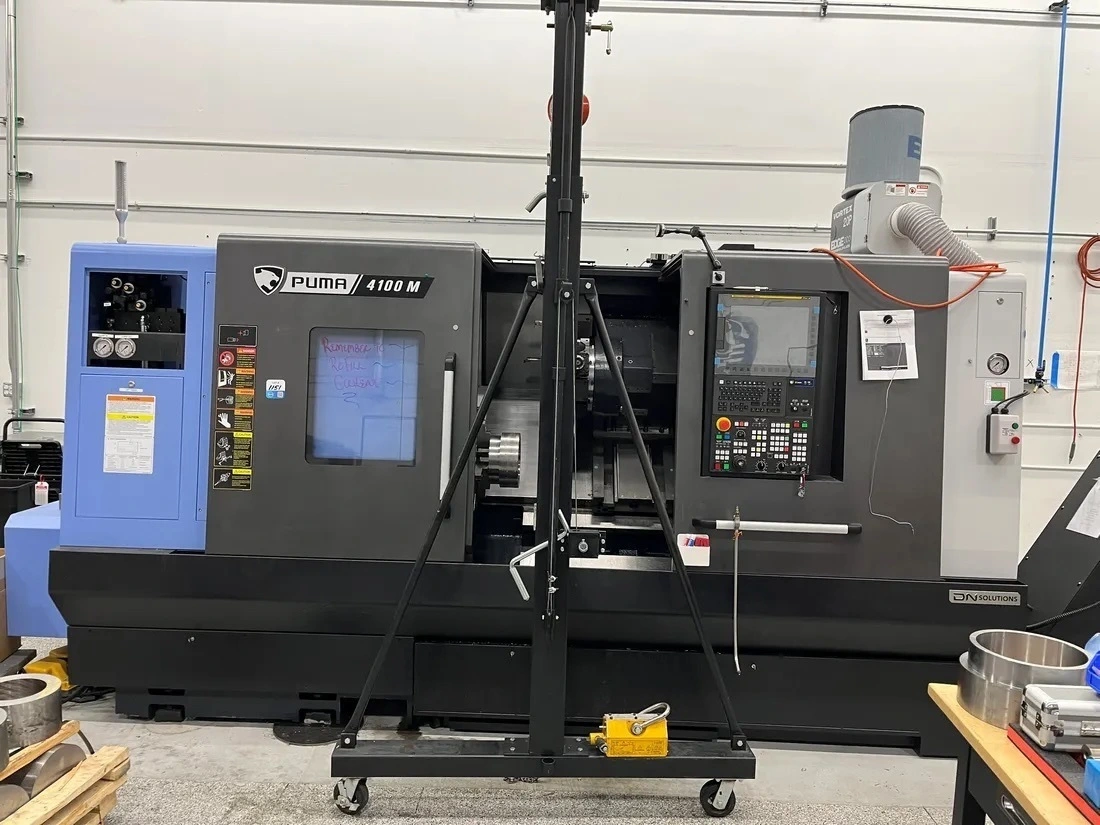

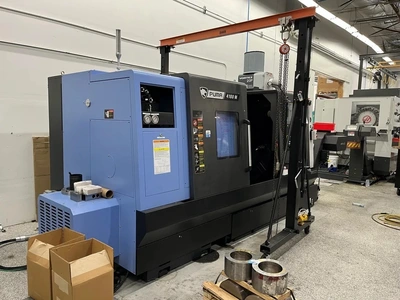

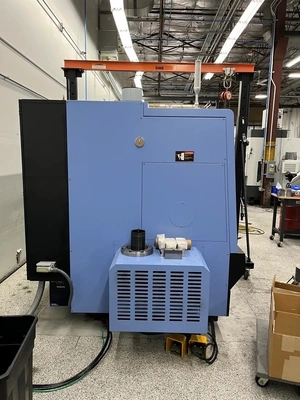

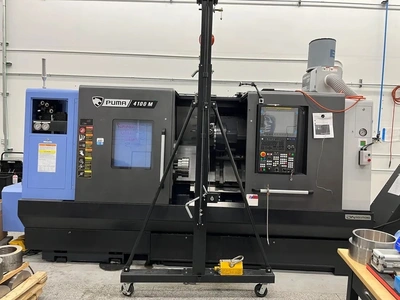

2024 DN SOLUTION 4100MB 3 AXIS CNC LATHE WITH MILLING
Have one to sell?
ConditionUsed
1 available
FANUC CNC CONTROL
CHIPBLASTER 1000 PSI COOLANT SYSTEM
EMBEDDED ETHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
AUTO TOOL SETTER
CHIP CONVEYOR
3 ROTARY HEADS
18 4 JAW MANUAL SAMCHULLY CHUCK
15" 3 JAW HUYDRAULIC 3 JAW CHUCK
Imperial
| Swing Over Bed | 31.1" |
| Machining Length | 38.5" |
| Distance Between Centers | 44.7" |
| Turning Diameter, Shaft Diameter | 22" |
| Chuck Size 1 | 20" |
| Spindle Nose 1 | A2-11 |
| Spindle Bore Diameter 1 | 5.2" |
| Spindle Bar Capacity 1 | 4.6" |
| Spindle Speeds 1 | 2,000 RPM |
| Spindle Horsepower 1 | 50 hp |
| X1 - Axis Travel | 14.3" |
| Z1 - Axis Travel | 43.5" |
| C1 - Axis Travel | .001 Degrees |
| Rapid Traverse Rate - X1 | 630 in/min. |
| Rapid Traverse Rate - Z1 | 787 in/min. |
| Gear Ranges | 2 |
| Turret Configuration 1 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 4,000 RPM |
| Turret Rotary Tool Horse Power 1 | 14.8 hp |
| Tailstock Quill Diameter | 4.7" |
| Tailstock Taper | MT 6 |
| Tailstock Quill Travel | 4.7" |
| Programmable Tailstock | YES |
| Tailstock Travel | 39.4" |
| # Axis | 3 |
| Bar Capacity | 4.6" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'No' |
FANUC CNC CONTROL
CHIPBLASTER 1000 PSI COOLANT SYSTEM
EMBEDDED ETHERNET FUNCTION
DOOSAN TOOL LOAD MONITORING
AUTO TOOL SETTER
CHIP CONVEYOR
3 ROTARY HEADS
18 4 JAW MANUAL SAMCHULLY CHUCK
15" 3 JAW HUYDRAULIC 3 JAW CHUCK
