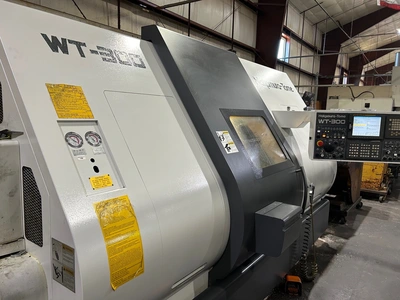

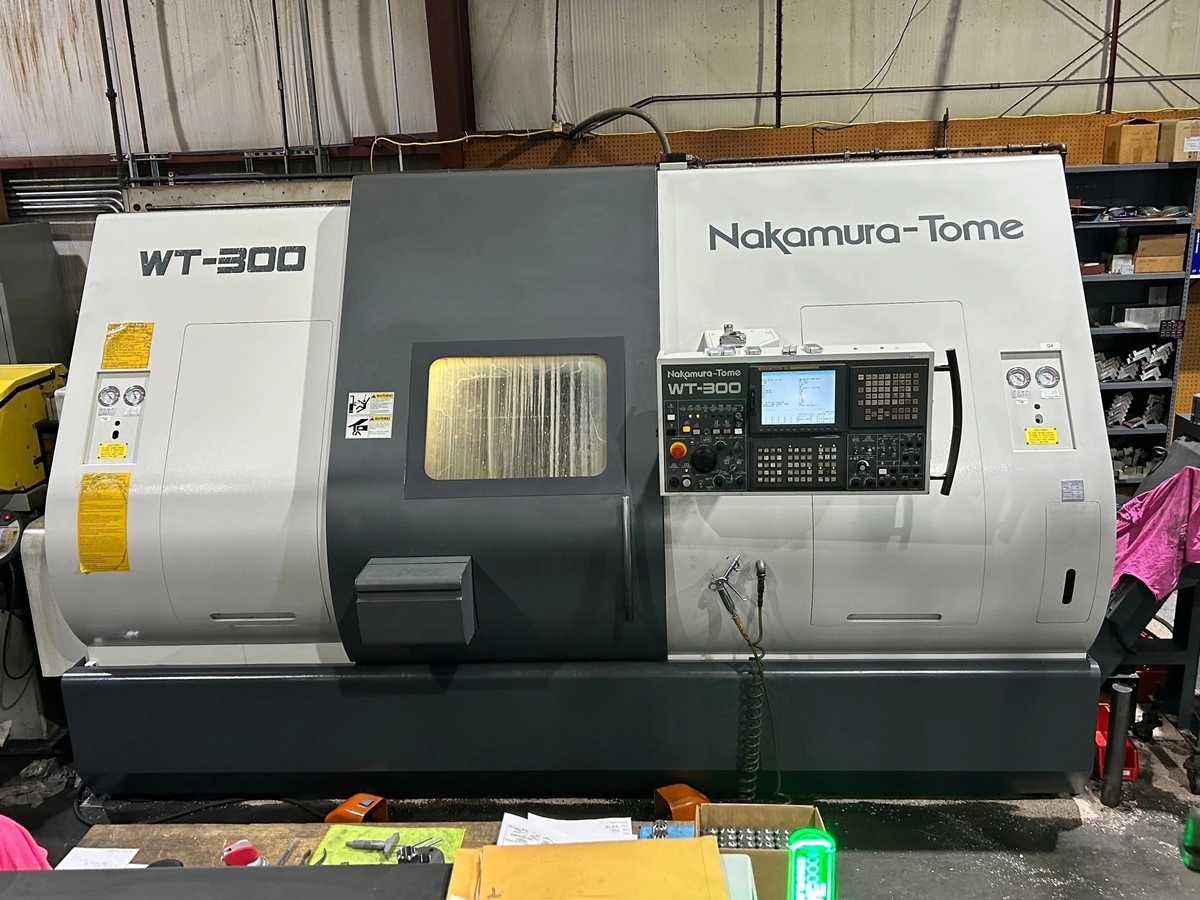

Used 2011 NAKAMURA-TOME WT-300MMY | Lathes CNC, Y-Axis / Multi Axis
Have one to sell?
ConditionUsed
1 available
Explore precision machining with the 2011 NAKAMURA-TOME WT-300MMY CNC lathe. Equipped with FANUC 18ITB 7-axis control, dual 25 hp spindles, 24-position tool turrets, synchronized Z axes, and more. Ideal for complex, multi-axis operations.

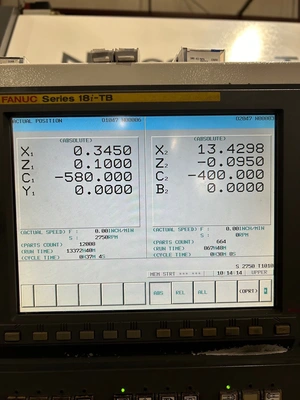

FANUC 18ITB 7-AXIS CNC CONTROL
THREAD CUTTING
MILLING BOTH TURRETS
SYNCHRONIZED Z AXES
HYDRAULIC PRESSURE INTERLOCK
HIGH PRESSURE COOLANT (BOTH TURRETS)
MILLING SPINDLE SYNC. TAP

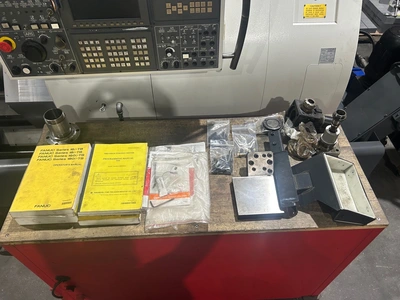

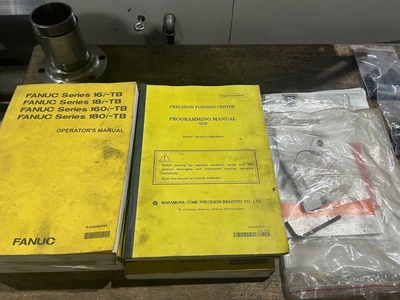

ALL AVAILABLE MANUALS
CHIP CONVEYOR

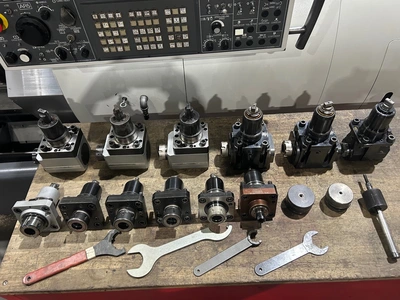

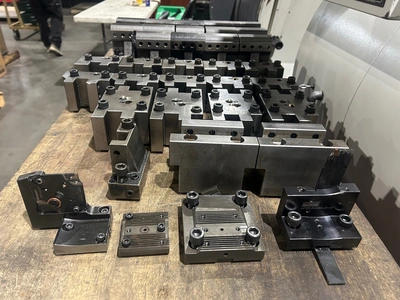

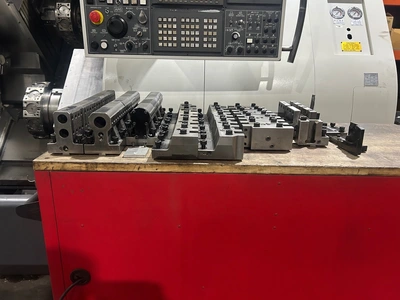

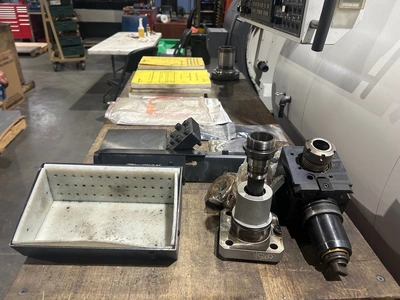

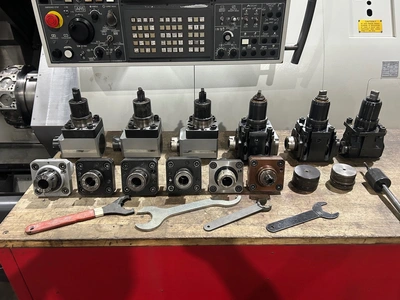

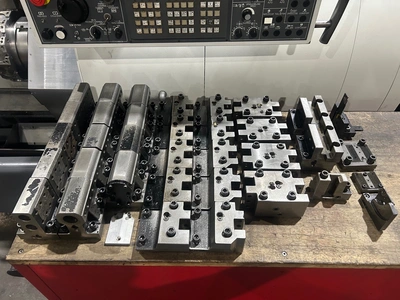

12 ROTARY HEADS AND MISC. STATIC TOOL HOLDERS
MANUAL GUIDE I
(2) 8" 3-JAW HYDRAULIC KITAGAWA CHUCKS
AUTOMATIC PARTS CATCHER
TOOL PRESETTER
DUAL 300 PSI HIGH PRESSURE COOLANT THRU THE MILL HEADS
POLAR COORDINATE INTERPOLATION
CYLINDRICAL INTERPOLATION
HELICAL INTERPOLATION
THREAD CUTTING RETRACT
CONTINUOS THREAD CUTTING
VARIABLE LEAD THREAD CUTTING PACKAGE (OPTION)
BACKGROUND EDIT
EXTENDED PART PROGRAM EDITING
GRAPHIC FUNCTION
DYNAMIC GRAPHIC FUNCTION
Explore precision machining with the 2011 NAKAMURA-TOME WT-300MMY CNC lathe. Equipped with FANUC 18ITB 7-axis control, dual 25 hp spindles, 24-position tool turrets, synchronized Z axes, and more. Ideal for complex, multi-axis operations.
Imperial
| Swing Over Bed | 10.63" |
| Turning Diameter | 10.63" |
| Turning Length | 30.71" |
| Distance Between Spindles | 43.31" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2-6 |
| Spindle Bore Diameter 1 | 3.15" |
| Bar Capacity 1 | 2.5" |
| Spindle Speeds 1 | 4,500 RPM |
| Spindle Horsepower 1 | 25 hp |
| Chuck Size 2 | 8" |
| Spindle Nose 2 | A2-6 |
| Spindle Bore Diameter 2 | 3.15" |
| Bar Capacity 2 | 2.5" |
| Spindle Speeds 2 | 4,500 RPM |
| Spindle Horsepower 2 | 25 hp |
| X1 - Axis Travel | 7.68" |
| X2 - Axis Travel | 7.68" |
| Z1 - Axis Travel | 30.71" |
| Z2 - Axis Travel | 30.71" |
| Y1 - Axis Travel | 4.72" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.001 |
| W - Axis Travel Sub Spindle | 33.46" |
| Turret Tool Positions 1 | 24 station |
| Turret Rotary Tool Speeds 1 | 3,600 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Turret Tool Positions 2 | 24 |
| Turret Rotary Tool Speeds 2 | 3,600 RPM |
| Turret Rotary Tool Horse Power 2 | 7.5 hp |
| Programmable Tailstock | 'No' |
| Machine Weight | 27,000 lb |
FANUC 18ITB 7-AXIS CNC CONTROL
THREAD CUTTING
MILLING BOTH TURRETS
SYNCHRONIZED Z AXES
HYDRAULIC PRESSURE INTERLOCK
HIGH PRESSURE COOLANT (BOTH TURRETS)
MILLING SPINDLE SYNC. TAP
ALL AVAILABLE MANUALS
CHIP CONVEYOR
12 ROTARY HEADS AND MISC. STATIC TOOL HOLDERS
MANUAL GUIDE I
(2) 8" 3-JAW HYDRAULIC KITAGAWA CHUCKS
AUTOMATIC PARTS CATCHER
TOOL PRESETTER
DUAL 300 PSI HIGH PRESSURE COOLANT THRU THE MILL HEADS
POLAR COORDINATE INTERPOLATION
CYLINDRICAL INTERPOLATION
HELICAL INTERPOLATION
THREAD CUTTING RETRACT
CONTINUOS THREAD CUTTING
VARIABLE LEAD THREAD CUTTING PACKAGE (OPTION)
BACKGROUND EDIT
EXTENDED PART PROGRAM EDITING
GRAPHIC FUNCTION
DYNAMIC GRAPHIC FUNCTION
