| Swing Over Bed | 30.3" | 769.62 mm |
| Machining Length | 81.7" | 2,075.2 mm |
| Turning Diameter, Shaft Diameter | 21.65" | 549.91 mm |
| Chuck Size 1 | 21" | 533.4 mm |
| Spindle Nose 1 | A1-15 | A1-15 |
| Spindle Bore Diameter 1 | 7.1" | 180.34 mm |
| Spindle Bar Capacity 1 | 6.5" | 165.1 mm |
| Spindle Speeds 1 | 1,500 RPM | 1,500 RPM |
| Spindle Horsepower 1 | 50 hp | 37.3 kW |
| X1 - Axis Travel | 14.3" | 363.22 mm |
| Z1 - Axis Travel | 84.8" | 2,153.9 mm |
| Rapid Traverse Rate - X1 | 629 in/min. | 266.3 mm/sec. |
| Rapid Traverse Rate - Z1 | 787 in/min. | 333.2 mm/sec. |
| Spindle Torque | 0 | 0 |
| Gear Ranges | 2 | 2 |
| Turret Configuration 1 | 12 | 12 |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Taper | MT #6 | MT #6 |
| Tailstock Quill Travel | 4.7" | 119.38 mm |
| Tailstock Travel | 73.2" | 1,859.3 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 6.5" | 165.1 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |

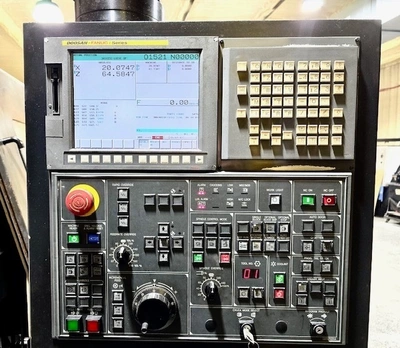

DOOSAN FANUC SERIES I CNC CONTROL
21" SAMCHULLY HYDRAULIC CHUCK
TOOL PRESETTER
SMW AUTOBLOCK STEADY REST
CHIP CONVEYOR
ALL AVAILABLE MANUALS
