| Number Of Tables / Pallets | 1 | 1 |
| Table-L | 31.5" | 800.1 mm |
| Table-W | 15.7" | 398.78 mm |
| Weight on Table | 551 lb | 249.9 kg |
| Spindle Nose to Table Top | 7.1 ~ 18.9 | 7.1 ~ 18.9 |
| X - Axis Travel | 27.6" | 701.04 mm |
| Y - Axis Travel | 15.7" | 398.78 mm |
| Z - Axis Travel | 11.8" | 299.72 mm |
| Rapid Traverse Rate - X | 1,696 in/min. | 43.1 m/min. |
| Rapid Traverse Rate - Y | 1,696 in/min. | 43.1 m/min. |
| Rapid Traverse Rate - Z | 2,205 in/min. | 56 m/min. |
| Cutting Feed Rate | 1,181 in/min. | 30 m/min. |
| Spindle Speed | 27,000 RPM | 27,000 RPM |
| Spindle Taper | 30 | 30 |
| Main Motor | 12 hp | 8.9 kW |
| Automatic Tool Changer | 21 | 21 |
| Tool Diameter | 4.3 | 4.3 |
| Tool Length | 9.8" | 248.92 mm |
| Tool Weight | 6.6 lb | 3 kg |
| Machine Weight | 7,826 lb | 3,549.8 kg |
| Automatic Tool Changer | 21 | 21 |
| Control | CNC (BROTHER CNC C00 CNC COLOR CONTROL) | CNC (BROTHER CNC C00 CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |
Brother CNC-C00 COLOR CONTROL
27000 RPM Optional spindle
Metrol TM26D-01 tool setter

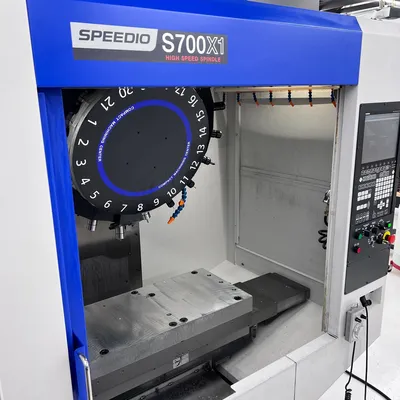

21 Position Automatic Tool Changer

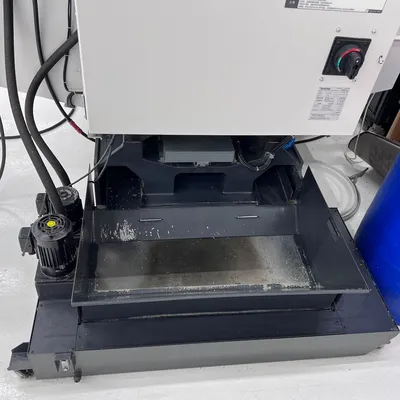

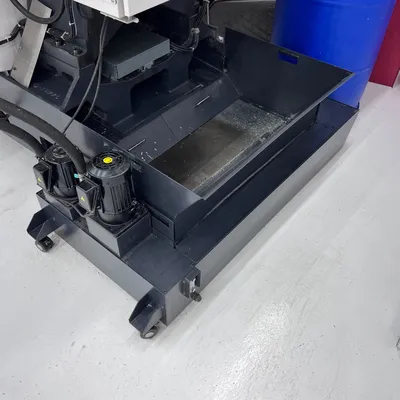

Chip Conveyor

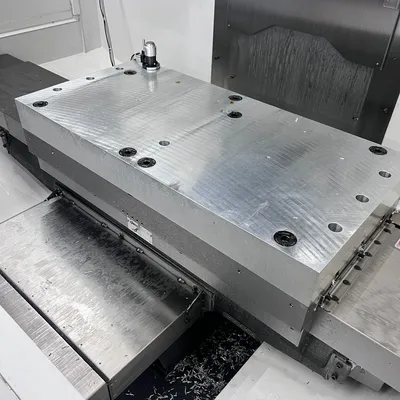

LPS-3 W/Sub table
150L coolant tank with chip shower
High accuracy mode

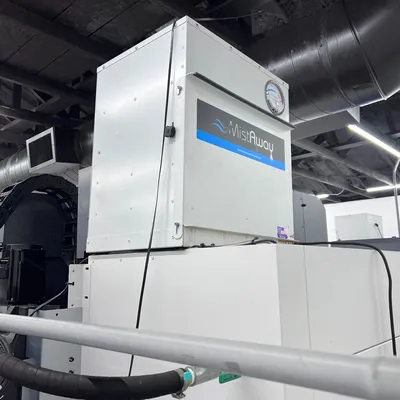

Mist Away MA700C mist collection system
Had held manual pulse generator
Spindle override

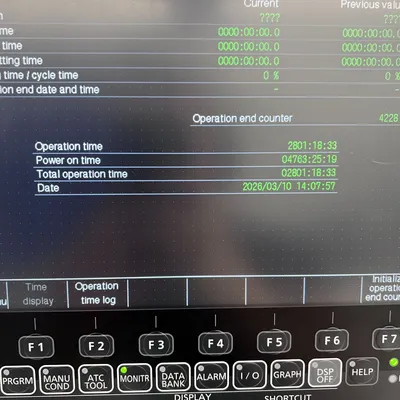

2800 Hours cutting plastic & aluminum
This equipment is currently unavailable. Similar equipment available now is shown below.
