OKUMA GENOS M560V CNC VERTICAL MACHINING CENTER

Have one to sell?

mike@usedcncllc.com

ConditionUsed

Quantity

1 available

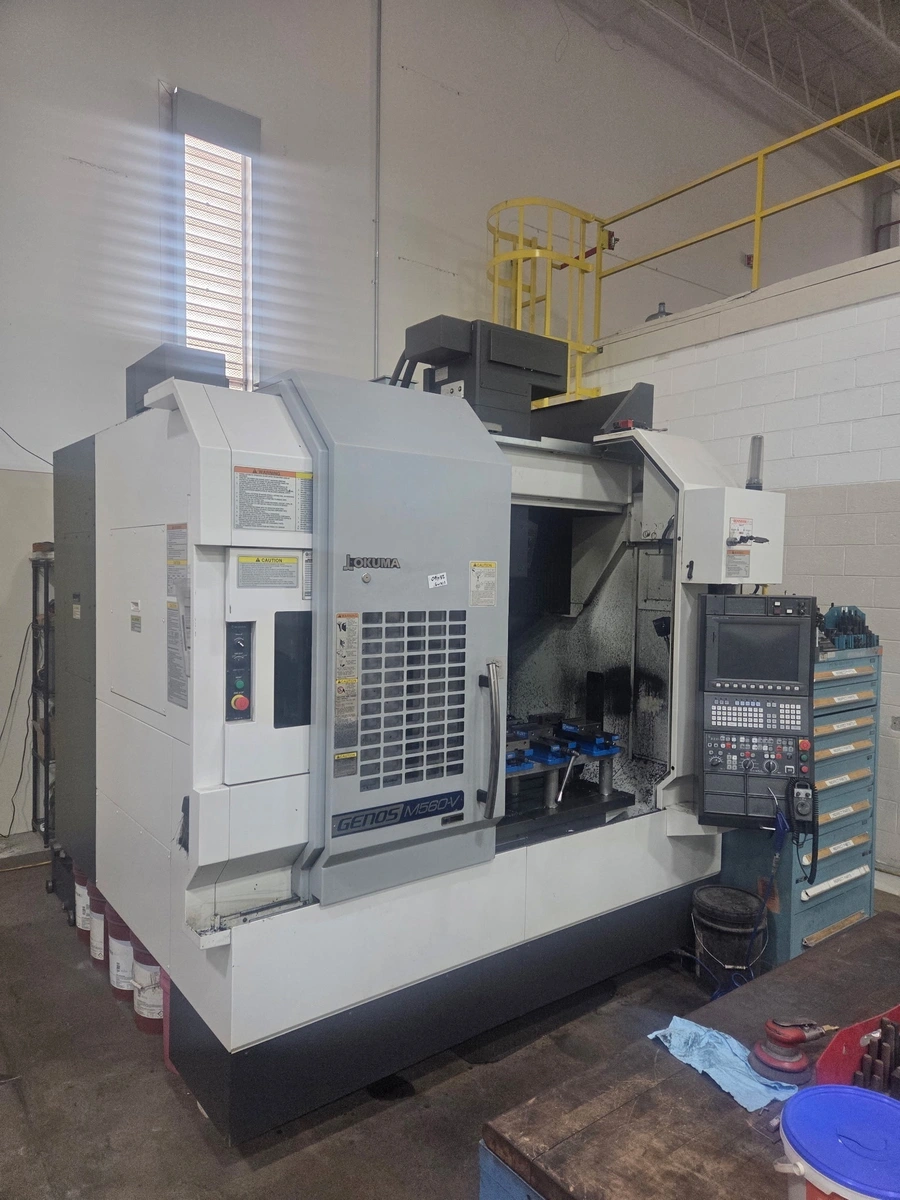

2017 OKUMA GENOS M560V Vertical Machining Centers

Have one to sell?

Overview

Type:

Vertical Machining Centers

Manufacturer:

Model:

GENOS M560V

Year:

2017

Stock #:

10260

Status:

For Sale

ImperialMetric

Number Of Tables / Pallets	1	1
Table-L	51.18"	1,300 mm
Table-W	22.05"	560.07 mm
Weight on Table	1,980 lb	898.1 kg
Spindle Nose to Table Top	5.91 ~ 24.22	5.91 ~ 24.22
X - Axis Travel	41.34"	1,050 mm
Y - Axis Travel	22.05"	560.07 mm
Z - Axis Travel	18.11"	459.99 mm
Rapid Traverse Rate - X	1,575 in/min.	40 m/min.
Rapid Traverse Rate - Y	1,575 in/min.	40 m/min.
Rapid Traverse Rate - Z	1,262 in/min.	32.1 m/min.
Cutting Feed Rate	1,260 in/min.	32 m/min.
Spindle Speed	15,000 RPM	15,000 RPM
Spindle Taper	40 CT	40 CT
Main Motor	30 hp	22.4 kW
Automatic Tool Changer	32	32
Tool Diameter	3.54", 5.98"	3.54", 5.98"
Tool Length	11.81"	299.97 mm
Tool Weight	27 lb	12.2 kg
Machine Weight	18,700 lb	8,482.2 kg
Automatic Tool Changer	32	32
Control	CNC	CNC
Dimensions	122.1" x 98.8" x 108.1	122.1" x 98.8" x 108.1
Weight	18700.00	18700.00

OKUMA OSP P300MA CNC CONTROL
CAT 40 BIG PLUS SPINDLE
CHIP CONVEYOR
HIGH COLUMN OPTION
4TH AXIS INTERFACE

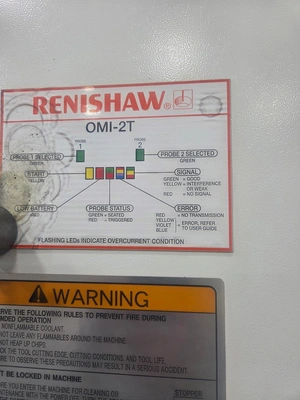

RENISHAW OMP400 / OTS PROBES
