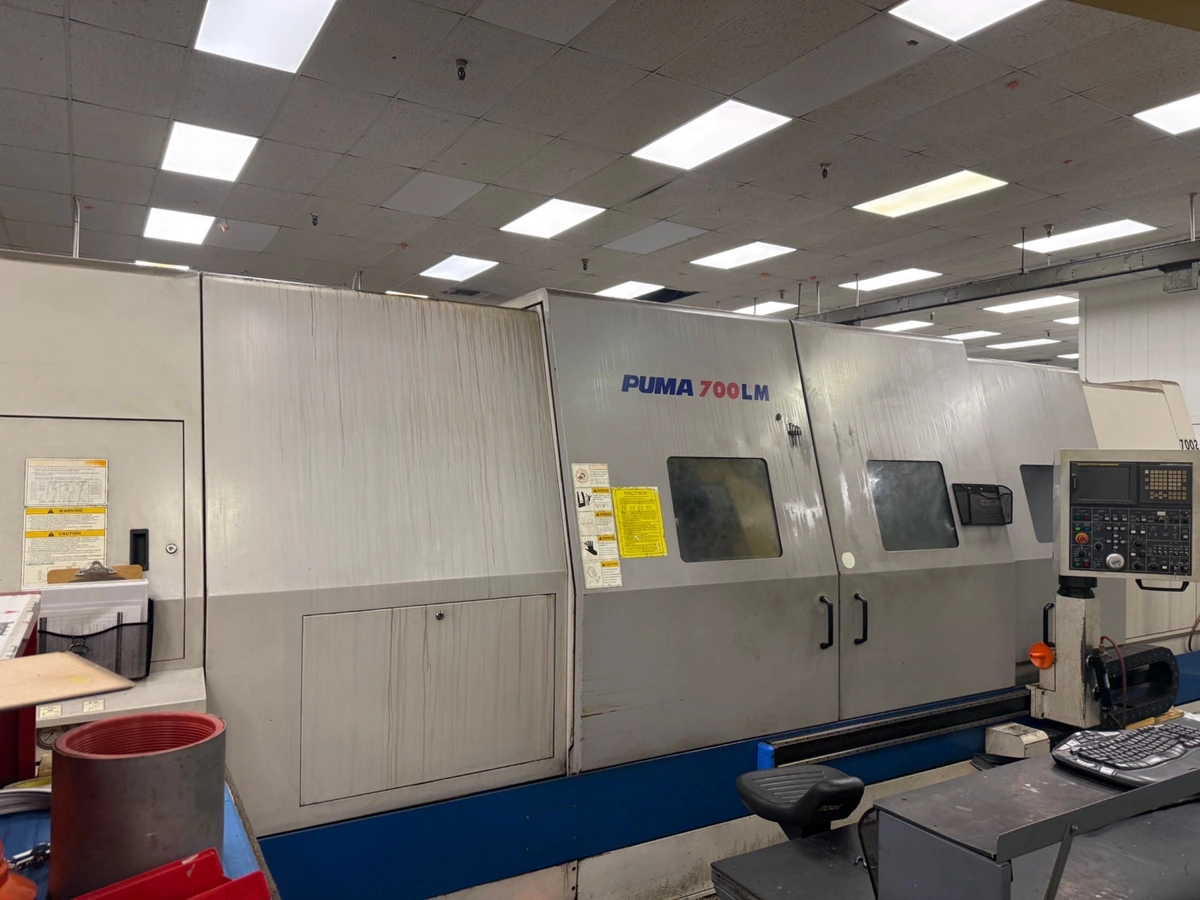

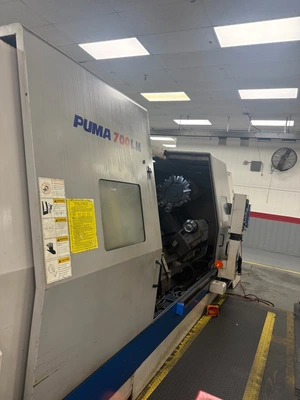

DOOSAN PUMA 700LM UNIVERSAL CNC LATHE WITH MILLING
Have one to sell?
ConditionUsed
1 available
DOOSAN PUMA 700LM 2006, CNC lathe with FANUC 21ITB, 3-axis, pneumatic thru-hole chuck, and steady rest. Max swing: 40.5", length: 126", capable of 1500 RPM. Features live tooling and chip conveyor. Condition: used.

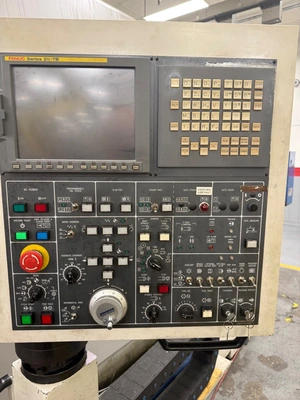

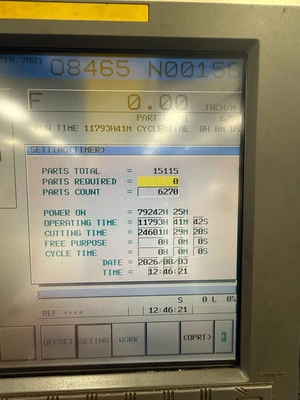

FANUC 21ITB CNC CONTROL

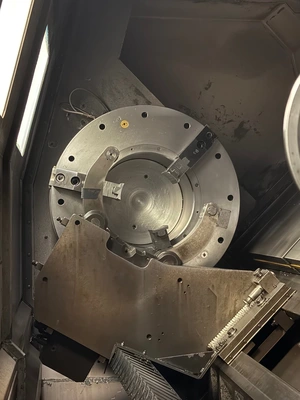

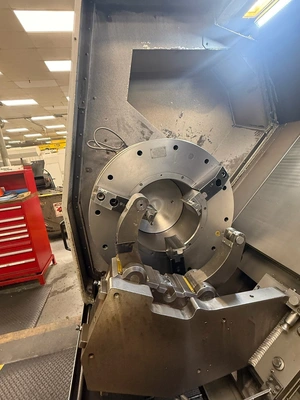

24" 3 JAW PNUEMATIC THRU HOLE CHUCK
.001 C AXIS INDEXING
HYDRAULIC STEADY REST
CHIP CONVEYOR
DOOSAN PUMA 700LM 2006, CNC lathe with FANUC 21ITB, 3-axis, pneumatic thru-hole chuck, and steady rest. Max swing: 40.5", length: 126", capable of 1500 RPM. Features live tooling and chip conveyor. Condition: used.
Imperial
| Swing Over Bed | 40.5" |
| Machining Length | 126" |
| Distance Between Centers | 141.7" |
| Turning Diameter, Shaft Diameter | 31.5" |
| Chuck Size 1 | 24" |
| Spindle Nose 1 | A2-15 |
| Spindle Bore Diameter 1 | 7.12" |
| Spindle Bar Capacity 1 | 7.1" |
| Spindle Speeds 1 | 1,500 RPM |
| Spindle Horsepower 1 | 60 hp |
| X1 - Axis Travel | 18.5" |
| Z1 - Axis Travel | 127.36" |
| C1 - Axis Travel | .001 |
| Rapid Traverse Rate - X1 | 400 in/min. |
| Rapid Traverse Rate - Z1 | 630 in/min. |
| Gear Ranges | 2 |

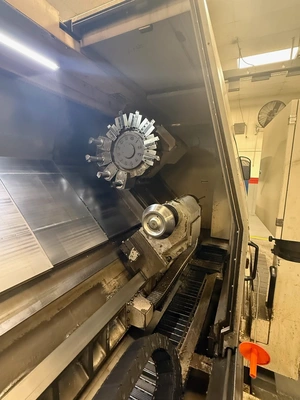

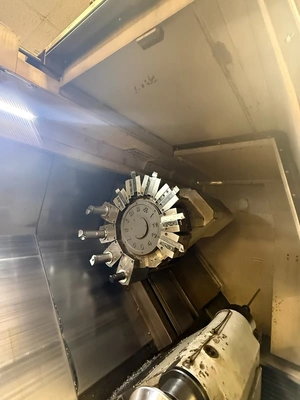

| Turret Configuration 1 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 3,000 RPM |
| Turret Rotary Tool Horse Power 1 | 15 hp |
| Tailstock Quill Diameter | 5.9" |
| Tailstock Taper | MT 6 |
| Tailstock Quill Travel | 5.9" |
| Programmable Tailstock | YES |
| Tailstock Travel | 124" |
| # Axis | 3 |
| Bar Capacity | 6.5" |
| Tailstock | 'Yes' |
| Live Tooling | 'Yes' |
| Sub Spindle | 'No' |
| Control | CNC (Fanuc 21 ITB CNC Color Control) |
FANUC 21ITB CNC CONTROL
24" 3 JAW PNUEMATIC THRU HOLE CHUCK
.001 C AXIS INDEXING
HYDRAULIC STEADY REST
CHIP CONVEYOR
