| Swing Over Bed | 30.7" | 779.78 mm |
| Turning Diameter | 14.8" | 375.92 mm |
| Turning Length | 29.9" | 759.46 mm |
| Distance Between Centers | 34" | 863.6 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.4" | 86.36 mm |
| Bar Capacity 1 | 3" | 76.2 mm |
| Spindle Speeds 1 | 3,500 RPM | 3,500 RPM |
| Spindle Horsepower 1 | 30 hp | 22.4 kW |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 32.7" | 830.58 mm |
| Y1 - Axis Travel | 4.1" | 104.14 mm |
| C - Axis Indexing 1 | 0.001 | 0.001 |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 393 ipm | |

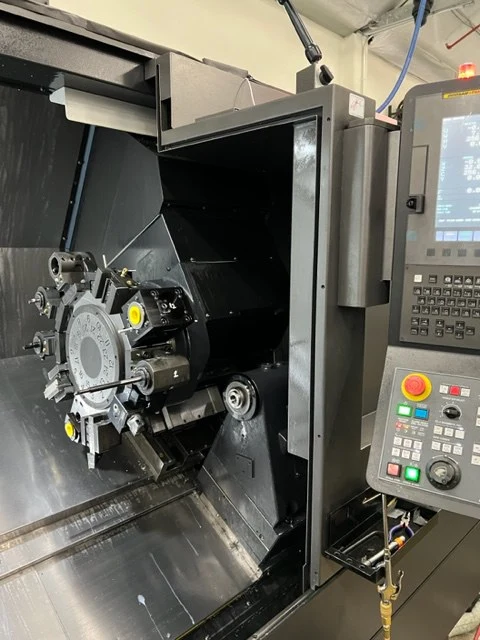

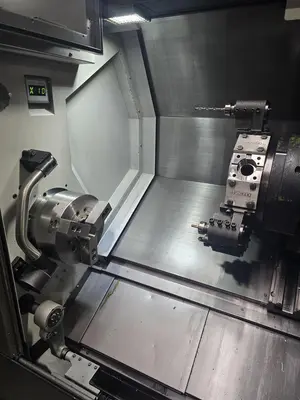

| Turret Tool Positions 1 | 1224 station | 1224 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | 5.6 kW |
| Tailstock Quill Diameter | 3.9" | 99.06 mm |
| Tailstock Taper | MT 5 | MT 5 |
| Tailstock Quill Travel | 3.9" | 99.06 mm |
| Tailstock Travel | 25 | 25 |
| Machine Weight | 13,227 lb | 5,999.7 kg |

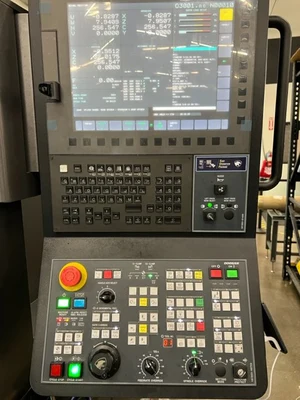

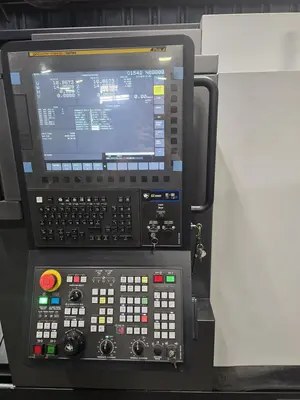

| Control | CNC (FANUC 31I CNC CONTROL) | CNC (FANUC 31I CNC CONTROL) |
ETHERNET, USB
CHIP CONVEYOR
FULL COMPLIMENT OF STATIC TOOL HOLDERS
BUILT IN LIVE CENTER FOR TAILSTOCK
PROGRAMMABLE TAILSTOCK
DOOSAN EZ GUIDE I CNC COLOR CONVERSATIONAL CONTROL
ROTARY TOOL HOLDERS (3) NOT SET UP FOR THROUGH TOOL COOLANT.
STANDARD TURRET SET UP 65 PSI THROUGH ROTARY HEAD.
FULL C-AXIS .001
AUTO PARTS CATCHER
BAR FEED INTERFACE
TOOL PRESETTER
This equipment has been sold. Similar equipment available now is shown below.
