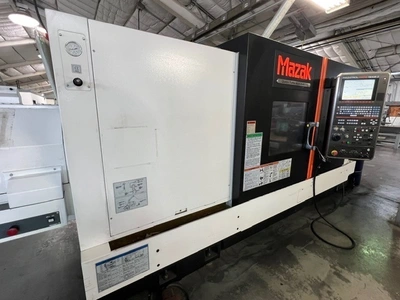

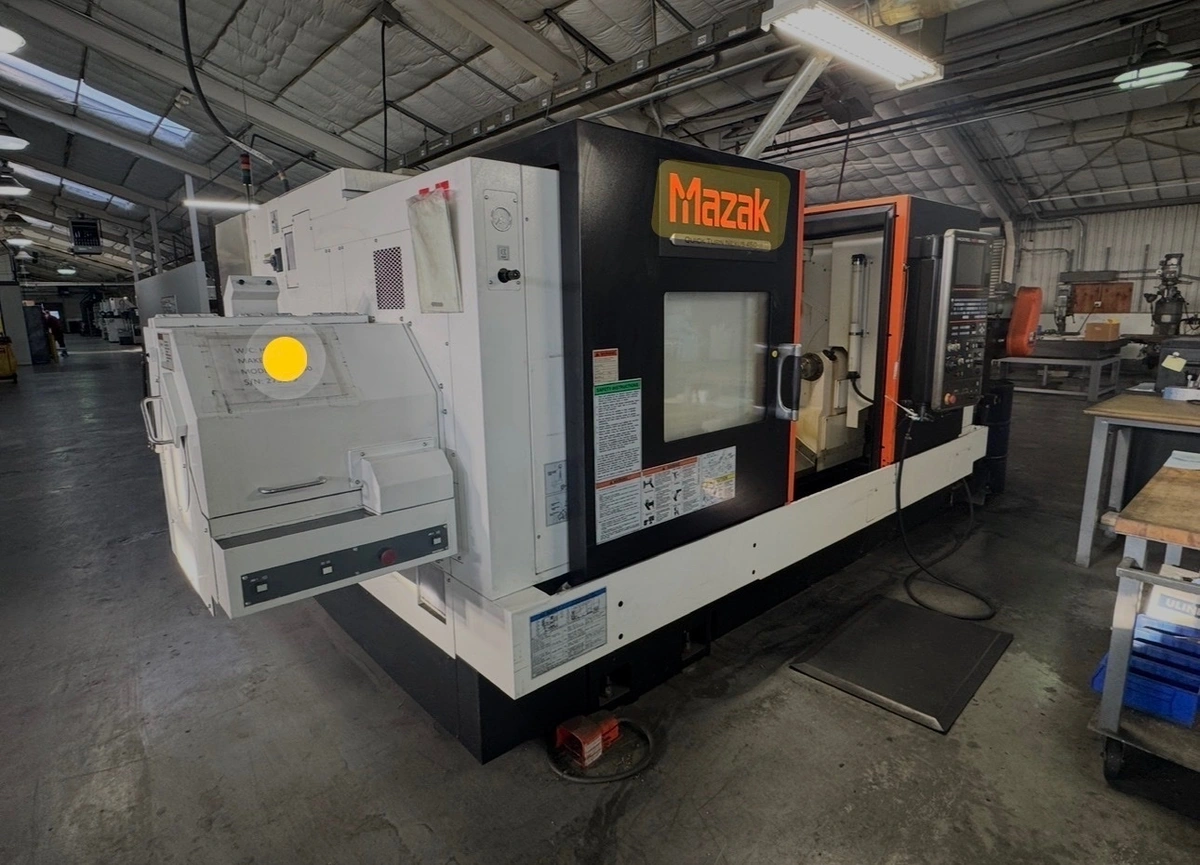

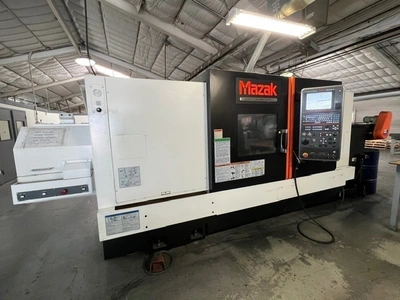

2016 MAZAK NEXUS QTN 450II/1000 UNIVERSAL CNC 2 AXIS LATHE
Have one to sell?
ConditionUsed
1 available
MAZAK NEXUS QTN 450II/1000, 2016, CNC lathe offers 33.26" swing, and 40.2" machining length. Features include MAZATROL MATRIX 2 CNC, 18" hydraulic chuck, chip conveyor, and more. Capable of 2,000 RPM with 50 hp, ideal for precise machining tasks.

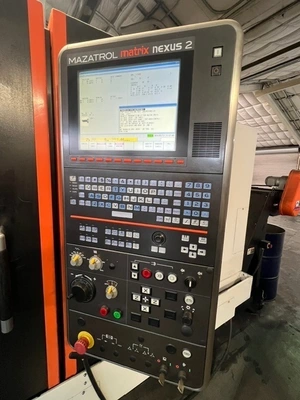

MAZATROL MATRIX 2 CNC CONTROL
12.1″ COLOR LCD
USB I/F (2-PORT)
LAN PORT
EIA, SPIRAL, EIA 3D COMP.,ROTATION, GEOMETRIC, SCALING
EXT-DATA I/O, THREAD, INVERSE TIME, AUTO ATLM
POLAR COORDINATE INPUT, COMPARISON STOP, G54.1
VARIABLE 600 SETS, EIA HELICAL TAP CYCLE
EIA PATERN CYCLE, TILTED WORK PLANE
PROGRAM MEMORY EXPANSION
PITCH ERROR COMP

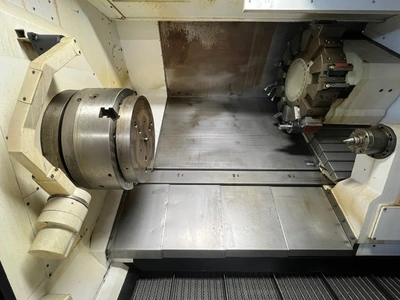

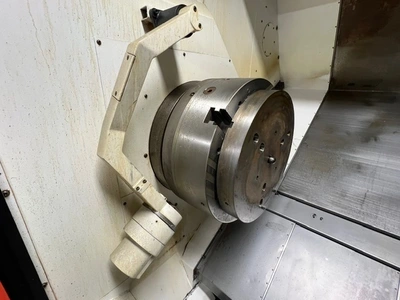

18" 3 JAW HYDRAULIC CHUCK

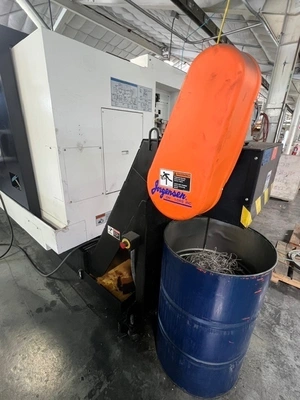

CHIP CONVEYOR
MAZAK NEXUS QTN 450II/1000, 2016, CNC lathe offers 33.26" swing, and 40.2" machining length. Features include MAZATROL MATRIX 2 CNC, 18" hydraulic chuck, chip conveyor, and more. Capable of 2,000 RPM with 50 hp, ideal for precise machining tasks.
Imperial
| Swing Over Bed | 33.26" |
| Machining Length | 40.2" |
| Turning Diameter, Shaft Diameter | 22.8" |
| Chuck Size 1 | 18" |
| Spindle Nose 1 | A2-15 |
| Spindle Bore Diameter 1 | 7.1" |
| Spindle Bar Capacity 1 | 6.5" |
| Spindle Speeds 1 | 2,000 RPM |
| Spindle Horsepower 1 | 50 hp |
| X1 - Axis Travel | 12.2" |
| Z1 - Axis Travel | 42.12" |
| Rapid Traverse Rate - X1 | 1,181 in/min. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. |

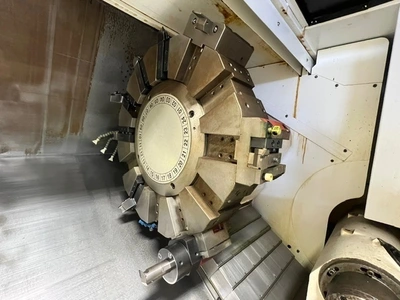

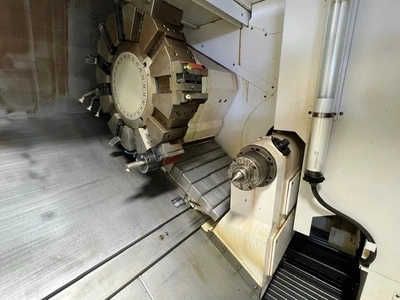

| Turret Configuration 1 | 24 |
| Tailstock Quill Diameter | 5" |
| Tailstock Taper | MT #5 |
| Programmable Tailstock | YES |
| Tailstock Travel | 40.37" |
| # Axis | 2 |
| Bar Capacity | 6.5" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
| Control | CNC (MAZATROL MATRIX 2 CNC COLOR CONTROL) |
MAZATROL MATRIX 2 CNC CONTROL
12.1″ COLOR LCD
USB I/F (2-PORT)
LAN PORT
EIA, SPIRAL, EIA 3D COMP.,ROTATION, GEOMETRIC, SCALING
EXT-DATA I/O, THREAD, INVERSE TIME, AUTO ATLM
POLAR COORDINATE INPUT, COMPARISON STOP, G54.1
VARIABLE 600 SETS, EIA HELICAL TAP CYCLE
EIA PATERN CYCLE, TILTED WORK PLANE
PROGRAM MEMORY EXPANSION
PITCH ERROR COMP
18" 3 JAW HYDRAULIC CHUCK
CHIP CONVEYOR
