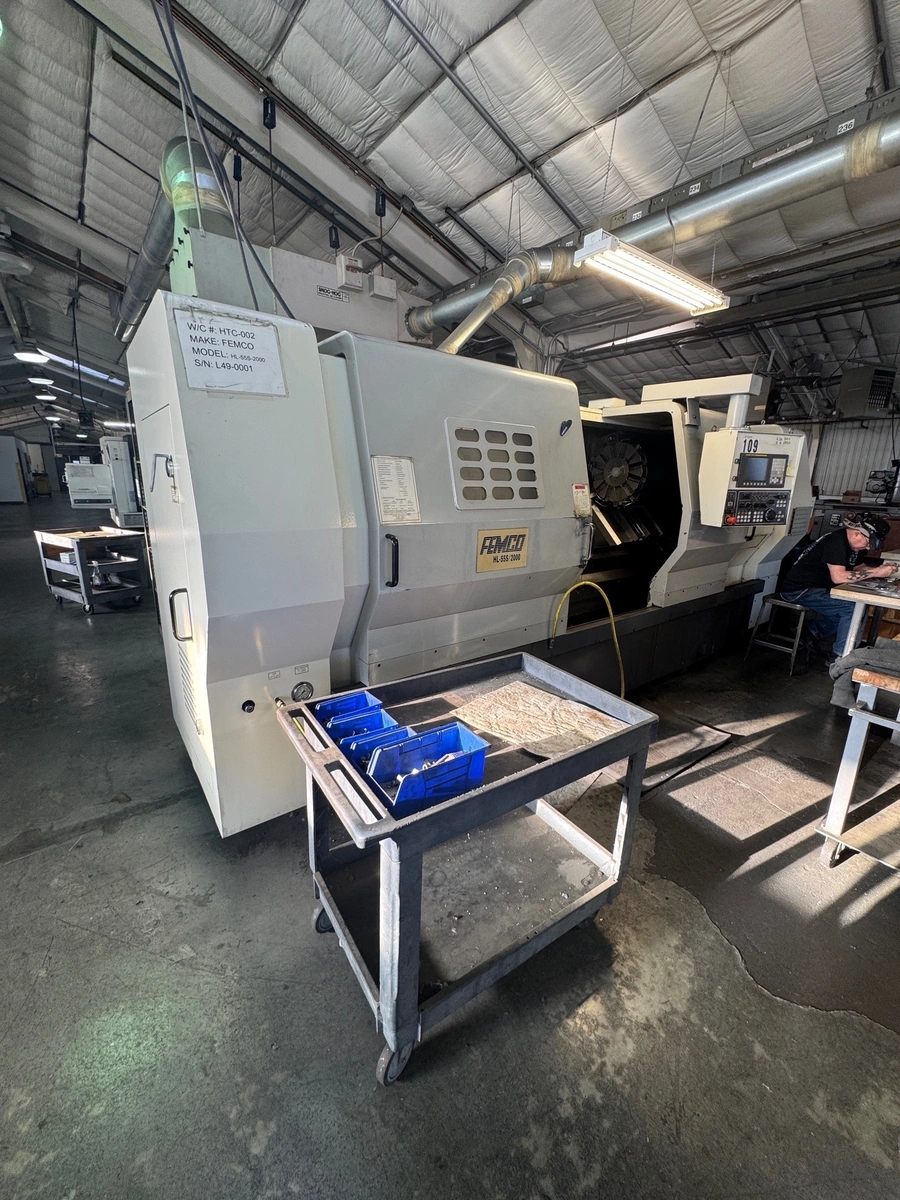

Used 2009 FEMCO HL-55/2000 | Lathes CNC, 2-Axis & 3-Axis
Have one to sell?
ConditionUsed
1 available

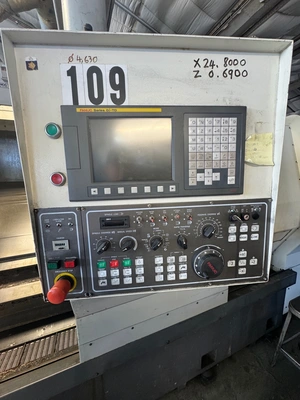

FANUC OITD CNC CONTROL
15" HYDRAULIC CHUCK
HYDRAULIC TAILSTOCK WITH POWER QUILL
CHIP CONVEYOR
Imperial
| Swing Over Bed | 27.95" |
| Machining Length | 75.5" |
| Turning Diameter, Shaft Diameter | 24.4" |
| Chuck Size 1 | 15" |
| Spindle Nose 1 | A2-11 |
| Spindle Bore Diameter 1 | 5.2" |
| Spindle Bar Capacity 1 | 4.53" |
| Spindle Speeds 1 | 2,500 RPM |
| Spindle Horsepower 1 | 34.9 hp |
| Rapid Traverse Rate - X1 | 472 in/min. |
| Rapid Traverse Rate - Z1 | 591 in/min. |
| Turret Configuration 1 | 12 |
| Tailstock Quill Diameter | 3.54" |
| Tailstock Taper | MT-5 |
| Tailstock Quill Travel | 4.72" |
| Programmable Tailstock | YES |
| Bar Capacity | 4.53" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
FANUC OITD CNC CONTROL
15" HYDRAULIC CHUCK
HYDRAULIC TAILSTOCK WITH POWER QUILL
CHIP CONVEYOR
