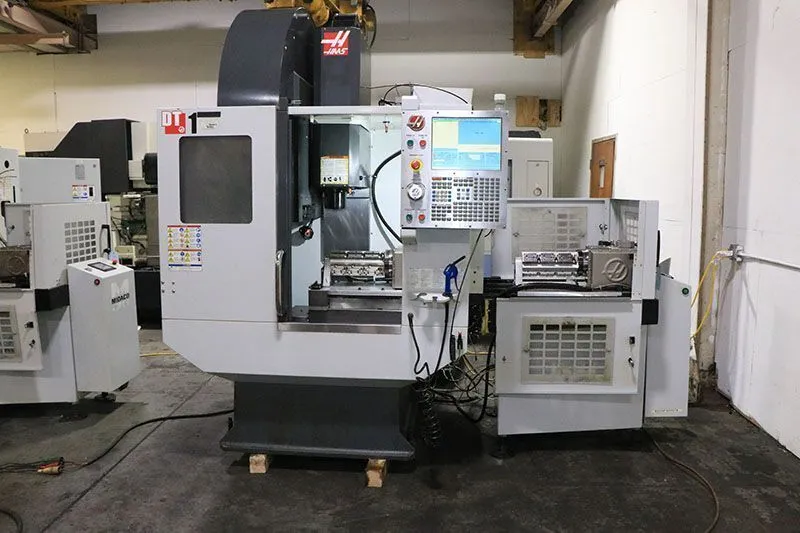

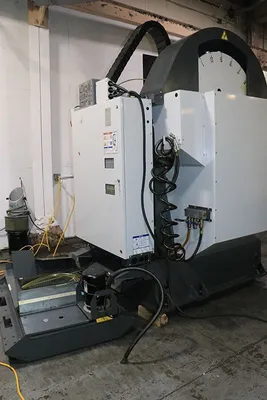

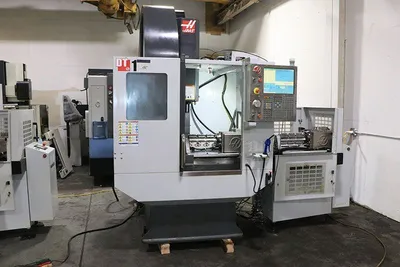

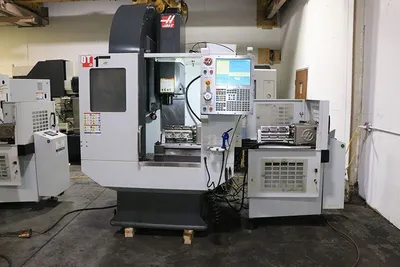

HAAS DT 1 CNC HIGH SPEED DRILL & TAPPING CENTER W/MIDACO PALLET CHANGER AND TWIN ROTARY TABLE INDEXERS
Have one to sell?
ConditionUsed
1 available
HAAS DT 1 CNC High Speed Drill & Tapping Center, 2012 model, featuring Midaco Pallet Changer, twin rotary tables, HAAS CNC control, and advanced tool management and probing capabilities. Specs include 12,000 RPM spindle, 20 automatic tool changer, and 20"x16"x15.5" travels.
Number Of Tables / Pallets: 1
Table Size : 26" X 15"
Weight On Table: 250 LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 6" ~ 21.5"
X - Axis Travel: 20"
Y - Axis Travel: 16"
Z - Axis Travel: 15.5"
A - Axis Travel: 0
B - Axis Travel: 0
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 2400 IPM
Cutting Feed Rate: 1200 IPM
Spindle Speed: 10,000 RPM
Spindle Taper: 30
Number Of Gear Ranges: 0
Main Motor: 15 HP
Vertical Turning Table Size, Number Of Tables: 0
Table Spindle Speed Vertical Turning: 0
Table Spindle Horse Power Vertical Turning: 0
Automatic Tool Changer: 20 + 1 ATC
Tool Diameter: 2.0"
Tool Length: 7"
Tool Weight: 0
Machine Weight: 5500 LBS

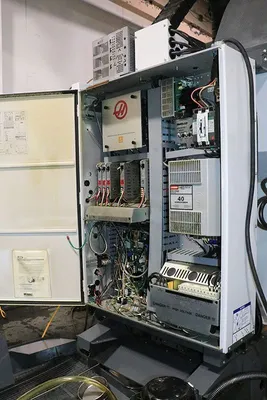

HAAS CNC CONTROL
ROTATION & SCALING
DNC, QUICK CODE
SPINDLE ORIENT
MACROS
INTUITIVE PROGRAMMING
ADVANCED TOOL MGMT,
RIGID TAPPING
USB PORT
WIPS WIRELESS INTUITIVE PROGRAMMING SYSTEM
NO PROBE TOOL & TOUCH SETTER

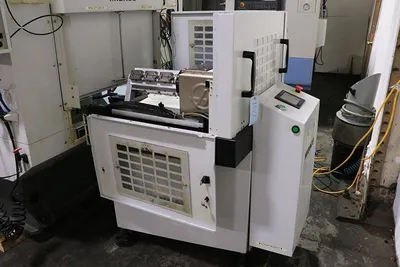

MIDACO MODEL ADT-1SD PROGRAMMABLE DUAL PALLET CHANGER PALLET SIZE 22" x 15"

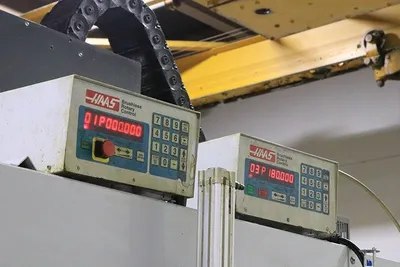

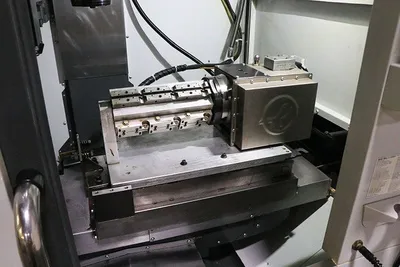

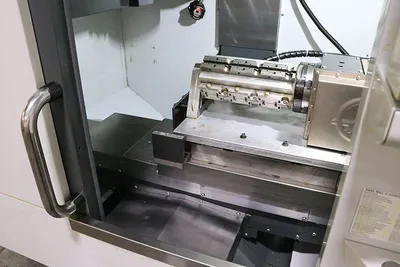

(2) HAAS MODEL HRT 160SP ROTARY TABLES W / HAAS INDEPENDENT ROTARY CONTROL
TOOLING BLOCK SYSTEMS W/ A-FRAME SUPPORT & MOUNTING BLOCK
FIRE SUPRESSION SYSTEM

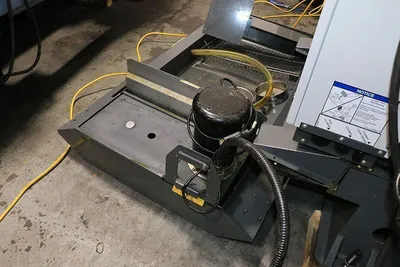

COOLANT SYSTEMS
ALL AVAILABLE MANUALS
