DOOSAN VT 900 CNC VERTICAL TURNING LATHE

DOOSAN VT 900 CNC VERTICAL TURNING LATHE

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
DOOSAN
Model:
VT900
Year:
2014
Stock #:
10268
Status:
For Sale
Serial #:
PVTH31UA00

Description

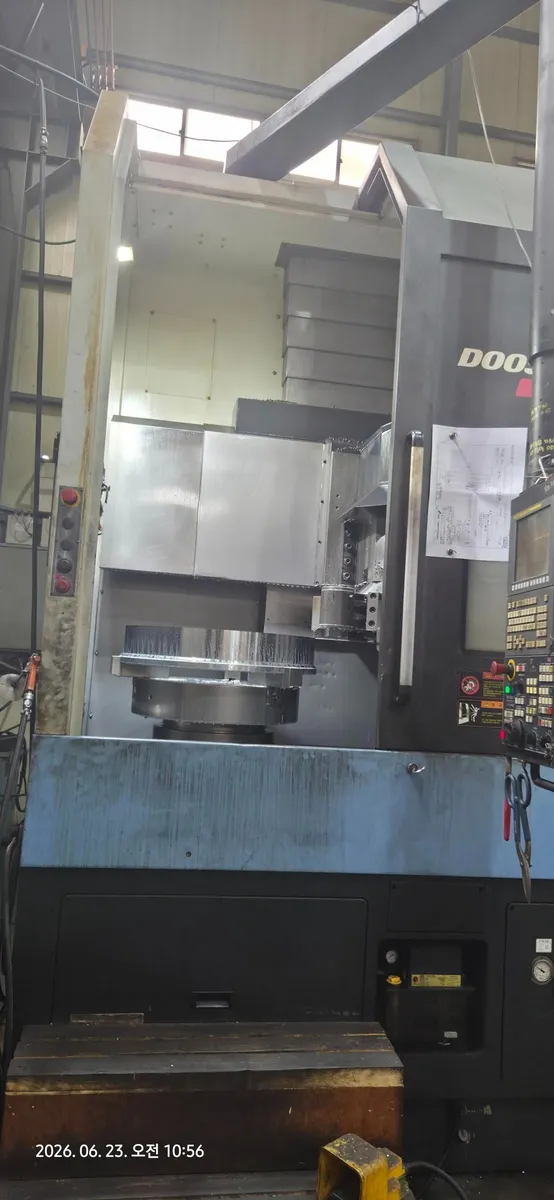

2014 Doosan VT 900 CNC vertical turning lathe; equipped with FANUC I Series control, chip conveyor, and 2-speed gearbox. Offers 24" table diameter, 39.4" swing, and 33.5" turning height. Includes manuals and tool holders. Choice of 3-jaw hydraulic chuck.

Table Diameter24"609.6 mm
Swing Diameter39.4"1,000.8 mm
Turning Height33.5"850.9 mm
Spindle NoseA2 - 15A2 - 15
Table Speed1,800 RPM1,800 RPM
Main Motor60 hp44.7 kW
Number Of Ranges22
X - Axis Travel18.5"469.9 mm
Z - Axis Travel33.5"850.9 mm
Rapid Traverse Rate - X797 ipm
Rapid Traverse Rate - Z797 in/min.20.2 m/min.
Turret Configuration12 station12 station
Machine Weight27,800 lb12,609.9 kg
ControlCNC (FANUC SERIES I CNC COLOR CONTROL)CNC (FANUC SERIES I CNC COLOR CONTROL)

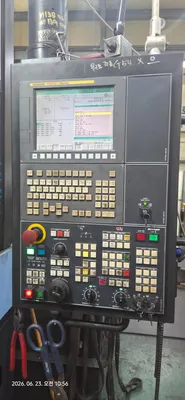

FANUC I SERIES CONTROL
CHIP CONVEYOR
2-SPEED GEARBOX
FULL COMPLIMENT OF TOOL HOLDERS
ALL MANUALS
60/50HP AC
24" OR 32" 3-JAW HYDRAULIC CHUCK (YOUR CHOICE)
