DMG MORI CTX GAMMA 3000 TC CNC MULTI TASKING TURNING AND MILLING CENTER
Have one to sell?
ConditionUsed
1 available

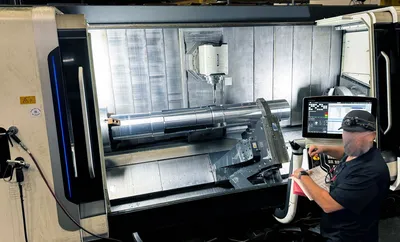

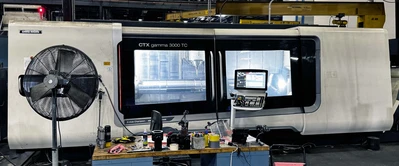

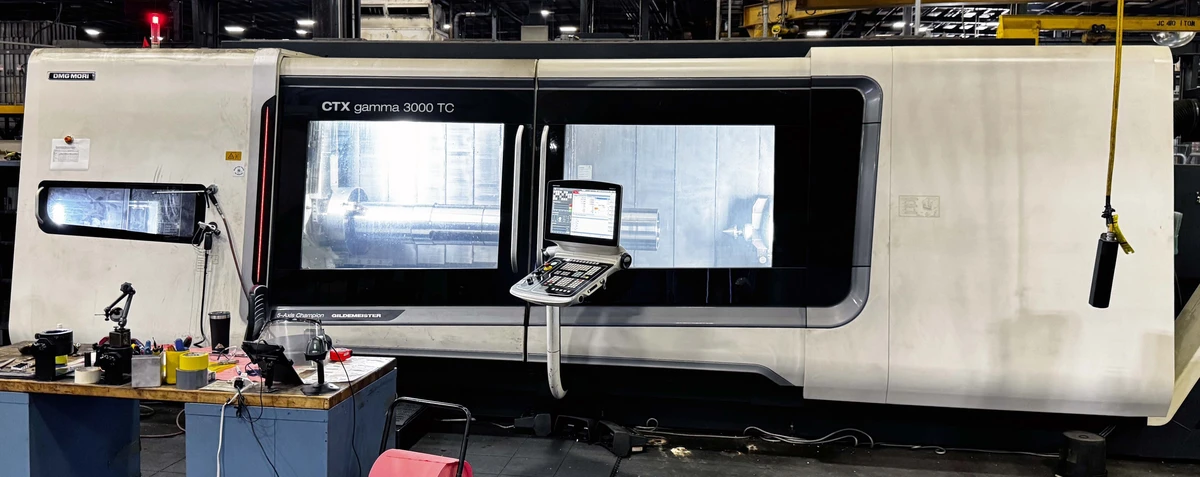

The 2020 DMG Mori CTX Gamma 3000 TC is a high-capacity mill turn center engineered for complete machining of large and complex components in a single setup. Equipped with twin 20" chucks, an 80 position tool changer, and Celos / Siemens ERGOLINE CNC control, this platform integrates powerful turning and full milling capability within one rigid structure. The inclusion of an SMW-Autoblok steady rest, mist collector, paper filtration system, and chip conveyor supports long-run, stable production machining.
Compared to conventional turning centers that require secondary milling operations or repositioning, the CTX Gamma 3000 TC performs multi-surface machining with synchronized spindle and milling operations. This reduces handling, improves concentricity, and dramatically increases efficiency for aerospace shafts, energy components, and heavy industrial parts.
Swing Over Bed: 27.6"
Turning Diameter: 27.6"
Turning Length: 120.1"
Distance Between Centers: 0
Distance Between Spindles: 0
Chuck Size 1, 2: 20", 20"
Spindle Nose 1, 2: 0
Spindle Bore Diameter 1, 2: 5.6", 4.6"
Bar Capacity 1, 2: 5", 4"
Spindle Speeds 1, 2: 2500, 2500 RPM
Spindle Horsepower 1, 2: 79, 67 HP
B - Axis Head Indexing: + - 120 DEGREES
B - Axis Milling Spindle Speed: 8000 RPM
B - Axis Milling Spindle Taper: CAPTO C8
B - Axis Milling Spindle Horse Power: 43 HP
ATC For Milling Spindle: 80 ATC
Tool Diameter: 3.14", 5"
Tool Length: 21"
Tool Weight: 26.4"
X - Axis Travel X1, X2, X3: 25.6"
Z - Axis Travel Z1, Z2, Z3: 120.1"
Y - Axis Travel Y1, Y2, Y3: + - 7.9"
C - Axis Indexing 1, 2: .001, .001
W - Axis Travel Sub Spindle: 112"
Rapid Traverse Rates X1, X2, X3: 1575 IPM
Rapid Traverse Rates Z1, Z2, Z3: 1575 IPM
Rapid Traverse Rates Y1, Y2, Y3: 1181 IPM
Turret Tool Positions 1, 2, 3: 0
Turret Rotary Tool Speeds 1, 2, 3: 0
Turret Rotary Tool Horse Power 1, 2, 3: 0
Tailstock Quill Diameter: 0
Tailstock Taper: 0
Tailstock Quill Travel: 0
Tailstock Travel: 0
Machine Weight: 66,138 LBS.
5 AXIS SIMULTANEOUS MACHINING
FULL C-AXIS ON BOTH SPINDLES
EXCENTRIC TURNING AND MILLING OPERATIONS
SPINDLE CHILLER FOR ALL THREE SPINDLES
ETHERNET, USB
SIEMENS ERGOLINE CONTROL WITH CELOS SOFTWARE
(2) 20" SMW AUTOBLOK 3 JAW CHUCKS FRONT AND REAR SPINDLES WITH 6.5" HOLES
SMW AUTOBLOCK SLU 6 HYDRAULIC STEDAY REST 4.92" - 18.1"
HUMID ENVIROMENT AC SYSTEM FOR CONTROL
CAPTO C8 TOOL HOLDER
UPGRADE 80 ATC MAGAZINE

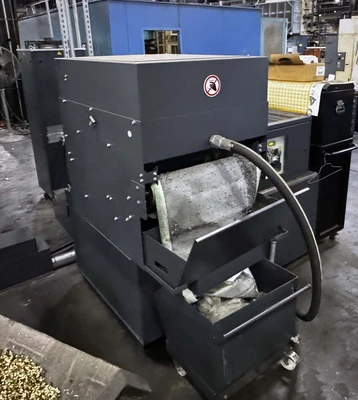

PAPER FILTRATION SYSTEM
CHIP CONVEYOR
