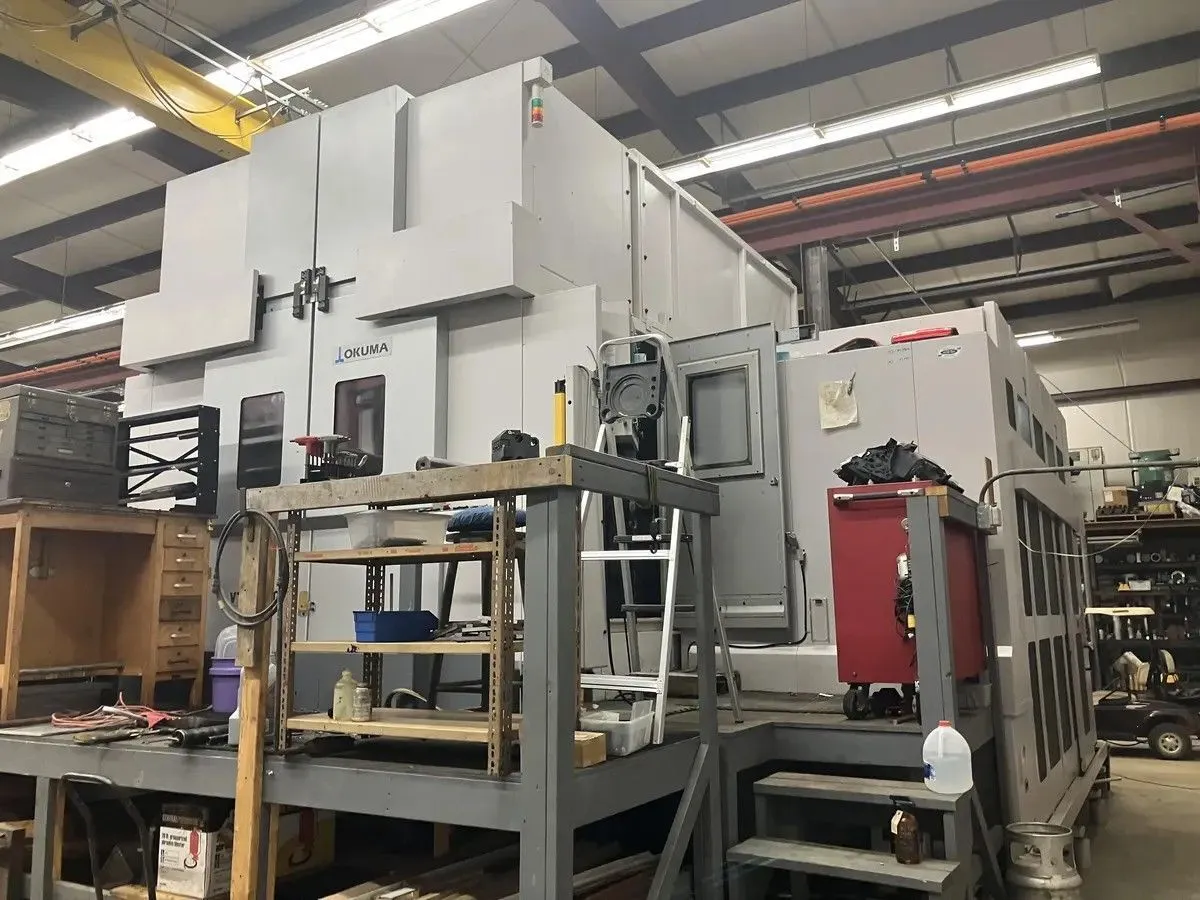

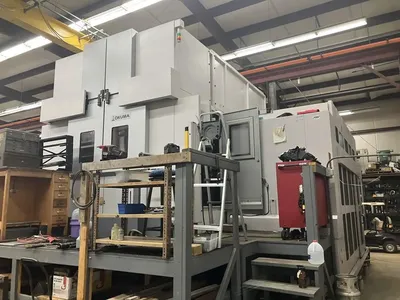

OKUMA VTM 1200YB CNC VERTICAL TURNING CENTER WITH Y & B AXIS

OKUMA VTM 1200YB CNC VERTICAL TURNING CENTER WITH Y & B AXIS

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Boring Mills Vertical CNC
Manufacturer:
OKUMA
Model:
VTM-120YB 5-AXIS
Year:
2014
Stock #:
10270
Status:
For Sale

Description

OKUMA VTM-120YB CNC Vertical Turning Center, 2014 model, combines precision with power. Features a 49.2" table, 5,500 lb load capacity, 40 hp motor, and advanced FANUC control. Equipped with a 120-tool changer, part probe, Y & B axis multi tasking capabilities.

Table Diameter49.2"1,249.7 mm
Table Load Capacity5,500 lb2,494.8 kg
Swing Diameter59.06"1,500.1 mm
Turning Height42.52"1,080 mm
Table Speed500 RPM500 RPM
Main Motor40 hp29.8 kW
Number Of Ranges22
X - Axis Travel50"1,270 mm
Z - Axis Travel43.52"1,105.4 mm
Y - Axis Travel39.37"1,000 mm
Rapid Traverse Rate - X1260 ipm
Rapid Traverse Rate - Z1,260 in/min.32 m/min.
Rapid Traverse Rate - Y1260 ipm
C - Axis Indexing.001 TABLE INDEXING.001 TABLE INDEXING
B - Axis Travel150 DEGREES150 DEGREES
B - Axis Indexing.001.001
B - Axis Milling Spindle Speed10,00010,000
B - Axis Horse Power50 hp
B - Axis Taper# 50# 50
Automatic Tool Changer120120
Machine Weight61,600 lb27,941.3 kg
ControlCNC (FANUC 18-ITB CNC COLOR CONTROLS)CNC (FANUC 18-ITB CNC COLOR CONTROLS)
Weight0.000.00

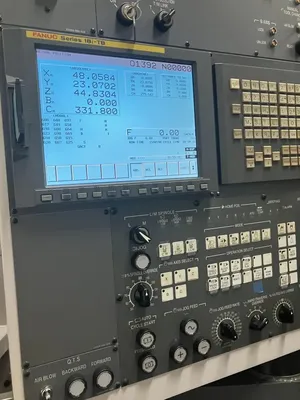

FANUC 18I-TB CNC COLOR CONTROL

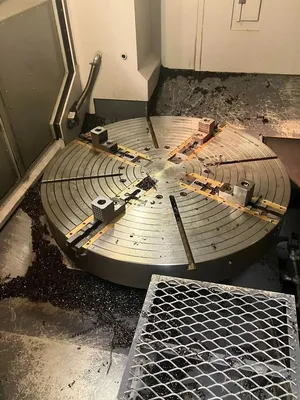

49" 4 JAW CHUCK

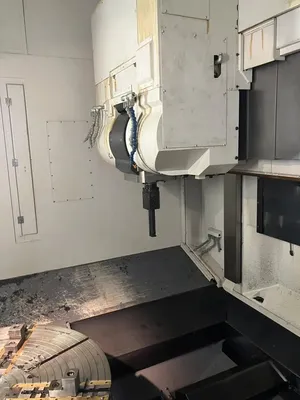

CAT 50 BIG BLUS SPINDLE

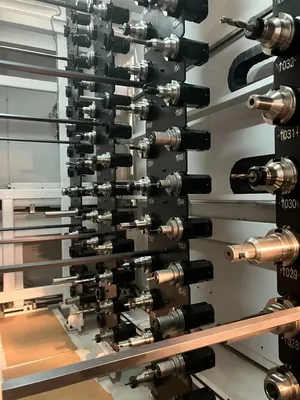

120 AUTO TOOL CHANGER
RENISHAW INFRARED PART PROBE
TOOL PRESETTER & TOOL BREAKAGE DETECTION
CHIP BLASTER 1000 PSI UNIT
CHIP CONVEYOR
2012 MFG DAE INSTALLED 2014 NEW BY OKUMA
