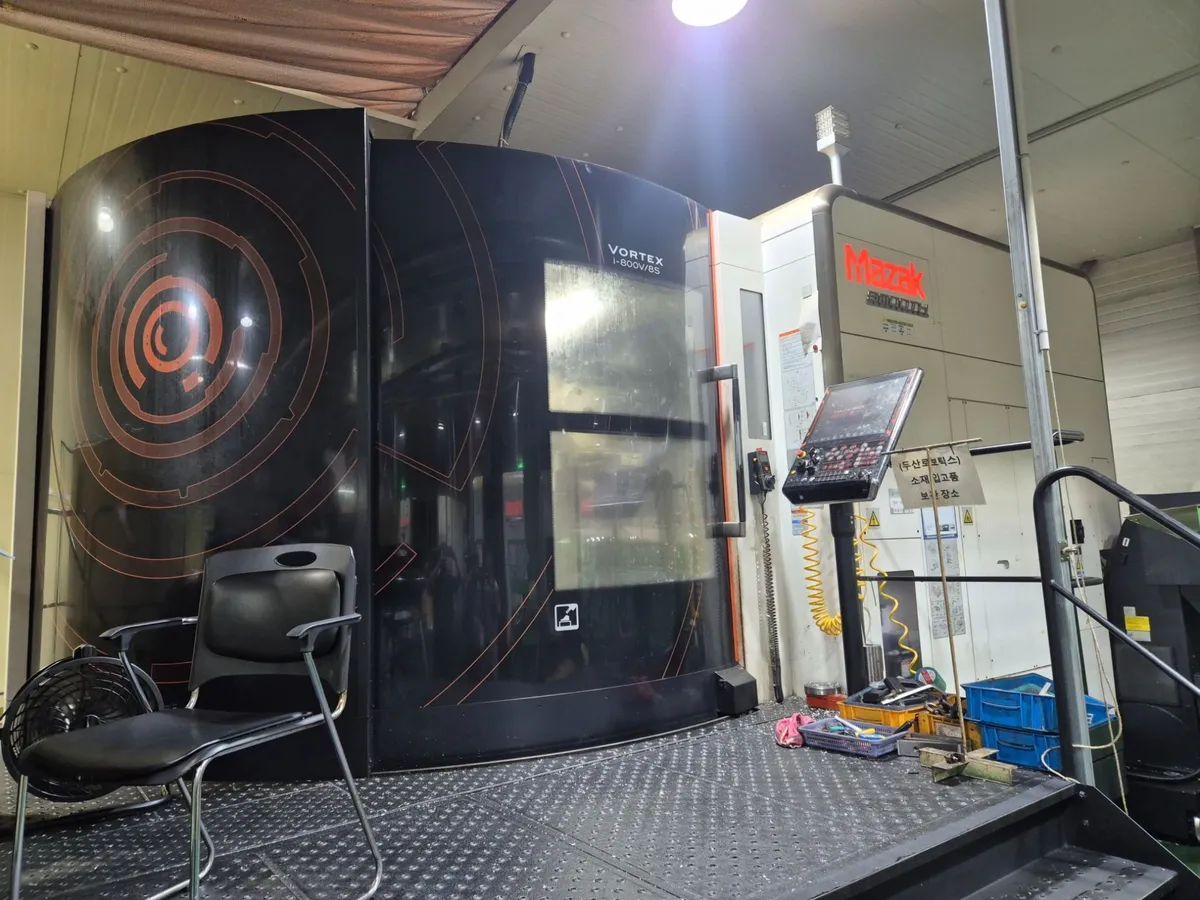

MAZAK VORTEX I 800V/8S CNC MULTI-TASKING TURNING/MACHINING CENTER

MAZAK VORTEX I 800V/8S CNC MULTI-TASKING TURNING/MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC 5 Axis Machines
Manufacturer:
MAZAK
Model:
VORTEX I-800V/8S
Year:
2016
Stock #:
10272
Status:
For Sale
Serial #:
269262
Country:
United States

Description

Discover the power of a 2016 MAZAK VORTEX I-800V/8S CNC 5 Axis Machining Center. It features a 50 hp spindle motor, 10,000 RPM speeds, and advanced MAZATROL SMOOTH X CNC control. Size precision with its expansive 66.93" X-axis travel and 43-tool changer, SCALES ON X, Y, and Z AXIS.

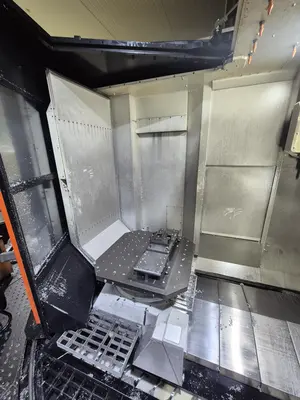

Number Of Tables / Pallets11
Table Size - L39.4"1,000.8 mm
Table Size - W39.4"1,000.8 mm
Weight On Table55.1 lb25 kg
Main Spindle Horse Power50 hp37.3 kW
Spindle Nose To Table- 9.8" ~ 35.43"- 9.8" ~ 35.43"
Main Spindle Speeds10,000 RPM10,000 RPM
Max Workpiece Diameter and Height59. 06" X 59.06"59. 06" X 59.06"
Main Spindle Taper# 40# 40
X - Axis Travel66.93"1,700 mm
Y - Axis Travel59.06"1,500.1 mm
Z - Axis Travel45.28"1,150.1 mm
B - Axis Travel- 30 ~ + 120 DEGREES- 30 ~ + 120 DEGREES
C - Axis Travel Table Indexing.0001.0001
Rapid Traverse Rate - X2,047 in/min.52 m/min.
Rapid Traverse Rate - Y2,047 in/min.52 m/min.
Rapid Traverse Rate - Z2,047 in/min.52 m/min.
Cutting Feed Rate2,047 in/min.52 m/min.

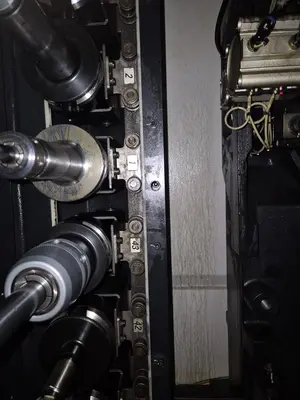

Automatic Tool Changer4343
Tool Diameter4.92", 11.814.92", 11.81
Tool Length25.59"649.99 mm
Tool Weight66 lb29.9 kg
Machine Weight94,600 lb42,909.9 kg
ControlCNC (MAZATROL SMOOTH X CNC COLOR CONTROL)CNC (MAZATROL SMOOTH X CNC COLOR CONTROL)
Weight0.000.00

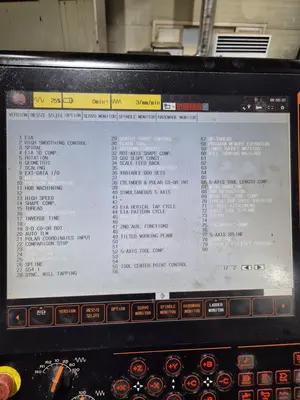

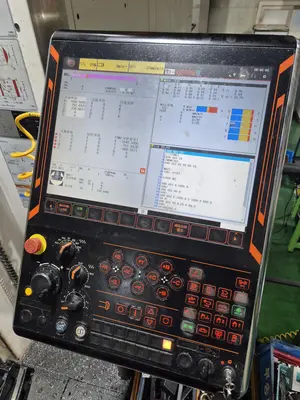

MAZATROL SMOOTH X CNC COLOR CONTROL
EIA, HIGH SMOOTHING CONTROL, SPIRAL, EIA 3D COMP
ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
HOB MACHINING, HIGH SPEED, SHAPE COMP., THREAD
INVERSE TIME, 3-D CO-OR ROT., AUTO TLM, POLAR COORDINATE INPUT
COMPARISON STOP, SPLINE, G54.1, SYNC MILL TAP, ROT-AXIS SHAPE COMP.
G00 SLOPE CONST. SCALE FEEDBACK X,Y,Z AXIS
VARIABLE 600 SETS, CYLINDRICAL & POLAR CO-OR INT. SIMULTANEOUS 5 AXIS
EIA HELICAL TAP, EIA PATTERN CYCLE, 2ND AUX. FUNCTION, TILTED WORK PLANE
5 - AXIS TOOL COMP, 5 - AXIS TOOL LENGTH COMP., TOOL CENTER POINT CONTROL
5 - AXIS SPLINE, SEAMLES CORNER CONTROL, VARIABLE ACC CONTROL, SUPER HIGH SPEED, RAPID OVERLAP
SPINDLE CHILLER

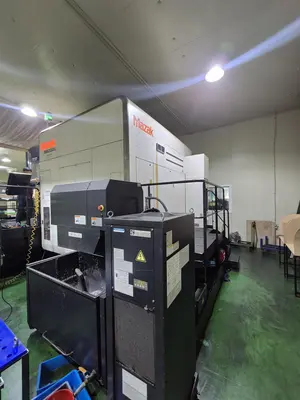

CHIP CONVEYOR
