| Swing Over Bed | 28.3" | 718.82 mm |
| Machining Length | 50.2" | 1,275.1 mm |
| Distance Between Centers | 53.8" | 1,366.5 mm |
| Turning Diameter, Shaft Diameter | 18.9" | 480.06 mm |
| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.4" | 111.76 mm |
| Spindle Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 2,800 RPM | 2,800 RPM |
| Spindle Horsepower 1 | 45 hp | 33.6 kW |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 53.1" | 1,348.7 mm |
| Rapid Traverse Rate - X1 | 945 in/min. | 400.1 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. | 500 mm/sec. |
| Gear Ranges | 2 | 2 |
| Turret Configuration 1 | 10 | 10 |
| Tailstock Quill Diameter | 3.9" | 99.06 mm |
| Tailstock Taper | MT 5 | MT 5 |
| Tailstock Quill Travel | 3.9" | 99.06 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 45.5" | 1,155.7 mm |
| # Axis | 2 | 2 |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC | CNC |
| Weight | 15212 LBS. | 15212 LBS. |
Swing Over Bed: 28.3"
Turning Diameter, Shaft Diameter: 18.9"
Machining Length: 50.2"
Distance Between Centers: 0
Distance Between Spindles: 0

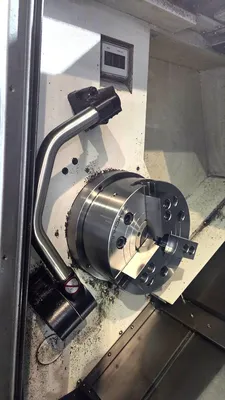

Chuck Size 1, 2: 12"
Spindle Nose 1, 2: A2-11
Spindle Bore Diameter 1, 2: 4.4"
Spindle Bar Capacity 1, 2: 4"
Spindle Speeds 1, 2: 2800 RPM
Gear Ranges: 0
Spindle Horsepower 1, 2: 45 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 10.2"
Z - Axis Travel 1, 2: 53.1"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 945 IPM
Rapid Traverse Rates Z1, Z2: 1181 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0

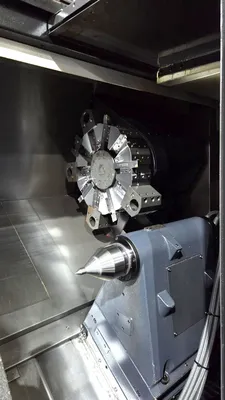

Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 3.9"
Tailstock Taper: MT #5 LIVE CENTER
Tailstock Quill Travel: 3.9"
Programmable Tailstock: YES
Tailstock Travel: 45.3"
Machine Weight: 15212 LBS.

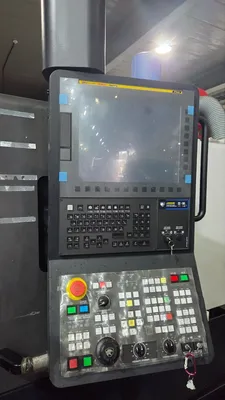

DOOSAN FANUC SERIES I CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
15" COLOR LCD MONITOR
LIVE CENTER
PROGRAMMABLE TAILSTOCK

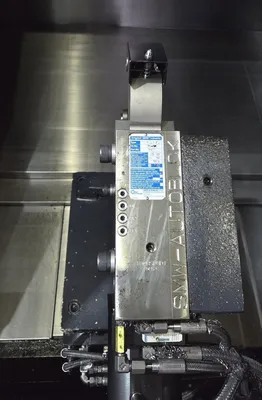

SMW SLU 3.1-ZS HYDRAULIC STEADY REST 20 - 165 MM CAPACITY
CHUCK CLAMP CONFIRMATION
TOOL LOAD MONITORING
128 PAIRS OF TOOL OFFSETS
CHIP BUCKET
6/2023 MFG DATE
