| Swing Over Bed | 26.8" | 680.72 mm |
| Machining Length | 59.6" | 1,513.8 mm |
| Turning Diameter, Shaft Diameter | 16.5" | 419.1 mm |

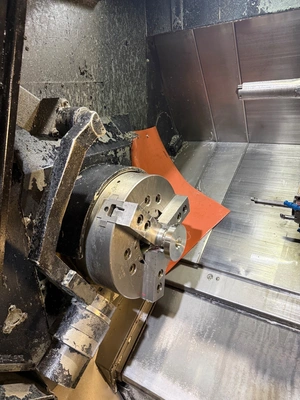

| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2 - 11 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.4" | 111.76 mm |
| Spindle Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 3,300 RPM | 3,300 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |
| X1 - Axis Travel | 10.63" | 270 mm |
| Z1 - Axis Travel | 59.03" | 1,499.4 mm |
| Rapid Traverse Rate - X1 | 787 in/min. | 333.2 mm/sec. |
| Rapid Traverse Rate - Z1 | 984 in/min. | 416.6 mm/sec. |
| Gear Ranges | 2 | 2 |

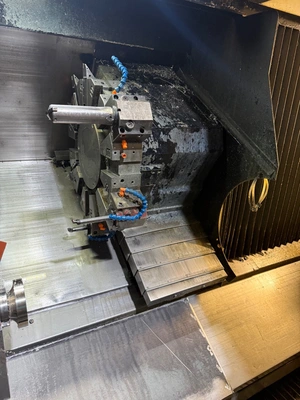

| Turret Configuration 1 | 12 | 12 |
| Tailstock Quill Diameter | 3.94" | 100.08 mm |
| Tailstock Taper | MT 5 | MT 5 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 55.8" | 1,417.3 mm |
| # Axis | 2 | 2 |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC | CNC |
| Weight | 17,900 | 17,900 |
Swing Over Bed: 26.8"
Turning Diameter, Shaft Diameter: 16.5"
Machining Length: 62"
Distance Between Centers: 63.8"
Distance Between Spindles: 0
Chuck Size 1, 2: 12"
Spindle Nose 1, 2: A2 - 11
Spindle Bore Diameter 1, 2: 4.4"
Spindle Bar Capacity 1, 2: 4"0
Spindle Speeds 1, 2: 3300 RPM
Gear Ranges: 0
Spindle Horsepower 1, 2: 40 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 10.63"
Z - Axis Travel 1, 2: 59.03"
C - Axis Travel 1, 2: 0
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 787 IPM
Rapid Traverse Rates Z1, Z2: 984 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0
Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 0
Turret Rotary Tool Horse Power 1, 2: 0
Tailstock Quill Diameter: 3.94"
Tailstock Taper: MT 5
Tailstock Quill Travel: 0
Programmable Tailstock: 0
Tailstock Travel: 55.8"
Machine Weight: 17,900 LBS

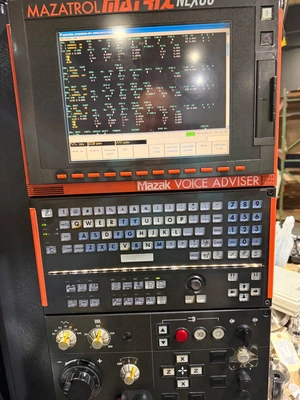

MAZATROL MATRIX CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
This equipment is currently unavailable. Similar equipment available now is shown below.
