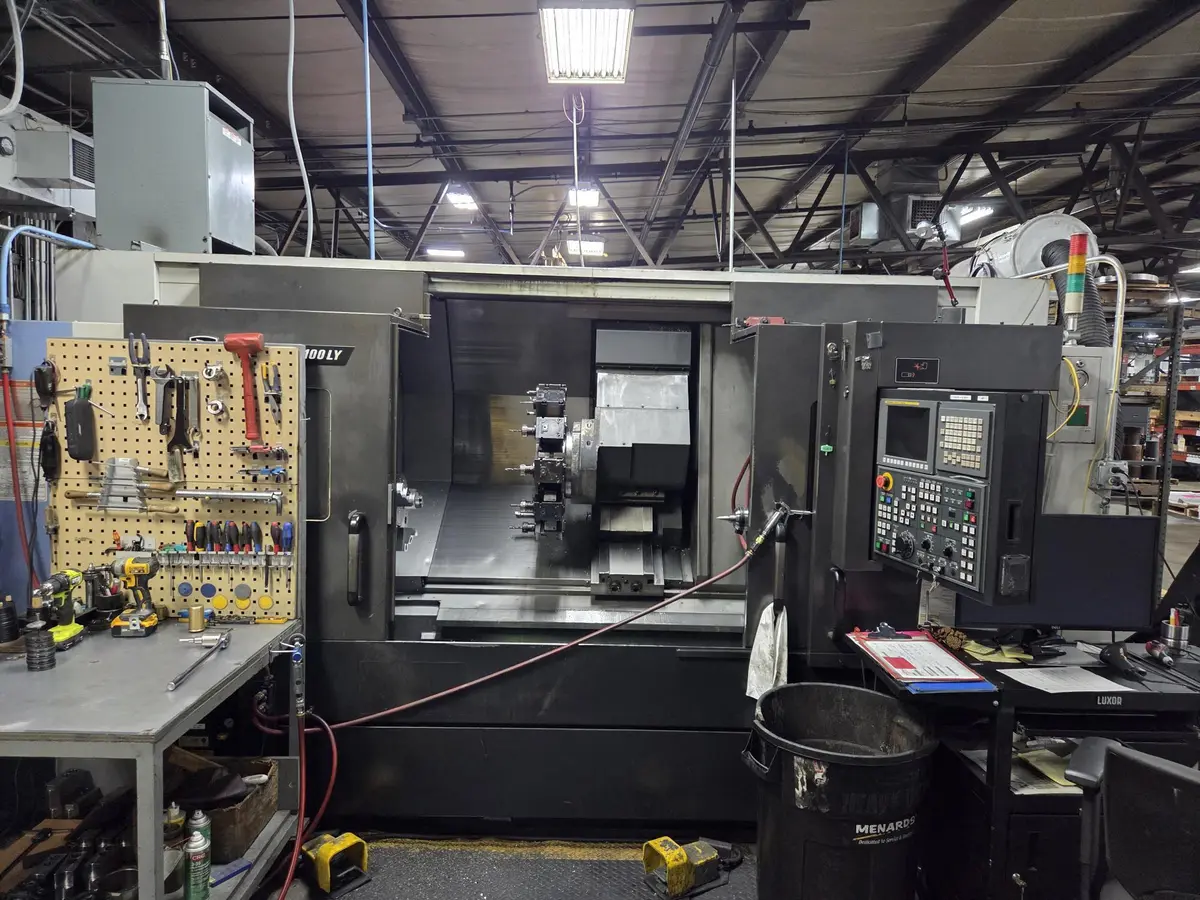

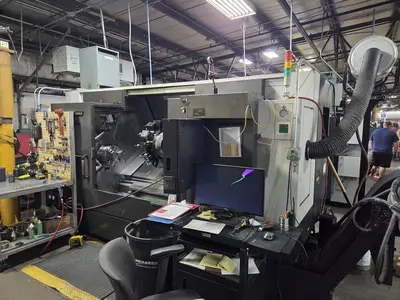

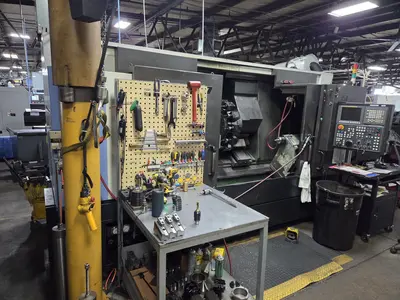

DOOSAN PUMA 3100LY CNC MULTI-TASKING TURNING CENTER
Have one to sell?
ConditionUsed
1 available
Doosan Puma 3100LY CNC multi-tasking turning center, 2011 model, used condition. Features Y-Axis for enhanced versatility and capability. Ideal for precision machining tasks. Enhance your production efficiency with this advanced CNC lathe.
FANUC 31i-B CNC CONTROLLER
3 MILLING HOLDERS - STATIC HOLDERS
TOOL PRESETTER

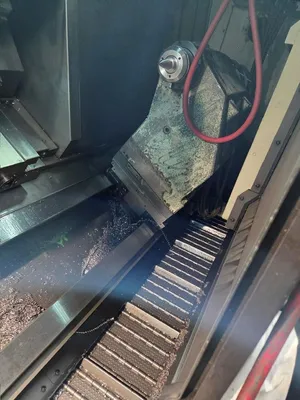

CHIP CONVEYOR
12" HYDRAULIC CHUCK
Doosan Puma 3100LY CNC multi-tasking turning center, 2011 model, used condition. Features Y-Axis for enhanced versatility and capability. Ideal for precision machining tasks. Enhance your production efficiency with this advanced CNC lathe.
Imperial
| Swing Over Bed | 33.5" |
| Turning Diameter | 26.4" |
| Turning Length | 50.6" |
| Distance Between Centers | 53.1" |
| Chuck Size 1 | 12" |
| Spindle Nose 1 | A2-11 |
| Spindle Bore Diameter 1 | 4.5" |
| Bar Capacity 1 | 4.1" |
| Spindle Speeds 1 | 2,800 RPM |
| Spindle Horsepower 1 | 30 hp |
| X1 - Axis Travel | 11.5" |
| Z1 - Axis Travel | 51" |
| Y1 - Axis Travel | 5.12" |
| C - Axis Indexing 1 | 0.001 |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1181 ipm |
| Rapid Traverse Rate - Y1 | 393 ipm |

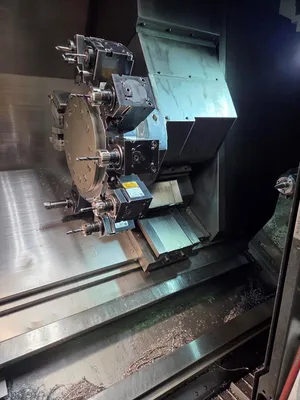

| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp |
| Tailstock Quill Diameter | 4.7" |
| Tailstock Taper | MT 5 |
| Tailstock Quill Travel | 4.7" |
| Programmable Tailstock | 'No' |
| Control | CNC |
| Weight | 17700.00 |
FANUC 31i-B CNC CONTROLLER
3 MILLING HOLDERS - STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
12" HYDRAULIC CHUCK
