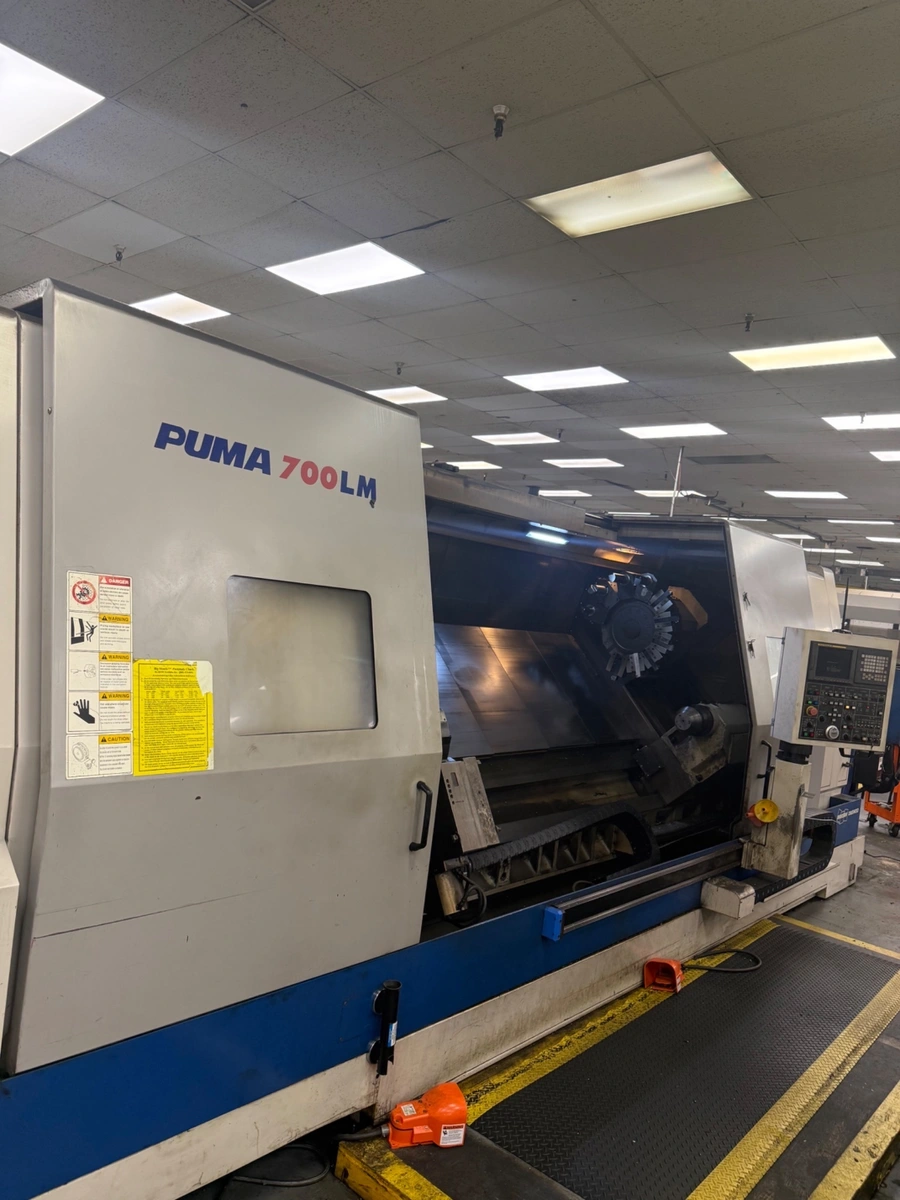

DOOSAN PUMA 700LM UNIVERSAL CNC LATHE WITH MILLING

DOOSAN PUMA 700LM UNIVERSAL CNC LATHE WITH MILLING

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
DOOSAN
Model:
PUMA 700LM
Year:
2006
Stock #:
10279
Status:
For Sale

Description

DOOSAN PUMA 700LM 2006, CNC lathe with FANUC 21ITB, 3-axis, steady rest. Max swing: 40.5", length: 126", capable of 1500 RPM. Features live tooling and chip conveyor. Condition: used.

Swing Over Bed40.5"1,028.7 mm
Machining Length126"3,200.4 mm
Distance Between Centers141.7"3,599.2 mm
Turning Diameter, Shaft Diameter31.5"800.1 mm
Chuck Size 124"609.6 mm
Spindle Nose 1A2-15A2-15
Spindle Bore Diameter 17.12"180.85 mm
Spindle Bar Capacity 17.1"180.34 mm
Spindle Speeds 11,500 RPM1,500 RPM
Spindle Horsepower 160 hp44.7 kW
X1 - Axis Travel18.5"469.9 mm
Z1 - Axis Travel127.36"3,234.9 mm
C1 - Axis Travel.001.001
Rapid Traverse Rate - X1400 in/min.169.3 mm/sec.
Rapid Traverse Rate - Z1630 in/min.266.7 mm/sec.
Gear Ranges22

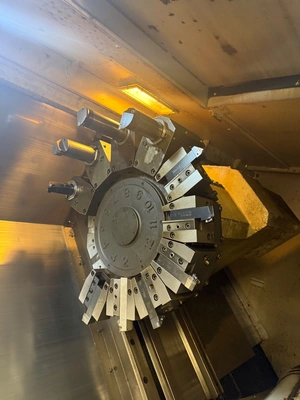

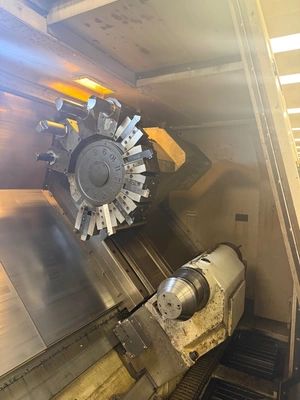

Turret Configuration 11212
Turret Rotary Tool Spindle Speed 13,000 RPM3,000 RPM
Turret Rotary Tool Horse Power 115 hp

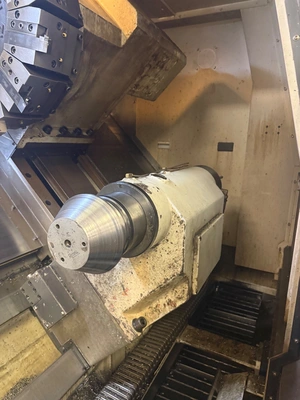

Tailstock Quill Diameter5.9"149.86 mm
Tailstock TaperMT 6MT 6
Tailstock Quill Travel5.9"149.86 mm
Programmable TailstockYESYES
Tailstock Travel124"3,149.6 mm
# Axis33
Bar Capacity6.5"165.1 mm
Tailstock'Yes''Yes'
Live Tooling'Yes''Yes'
Sub Spindle'No''No'
ControlCNCCNC

FANUC 21ITB CNC CONTROL

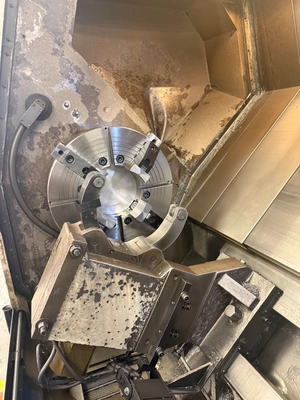

24" 4 JAW MANUAL THRU HOLE CHUCK
.001 C AXIS INDEXING
HYDRAULIC STEADY REST
CHIP CONVEYOR
