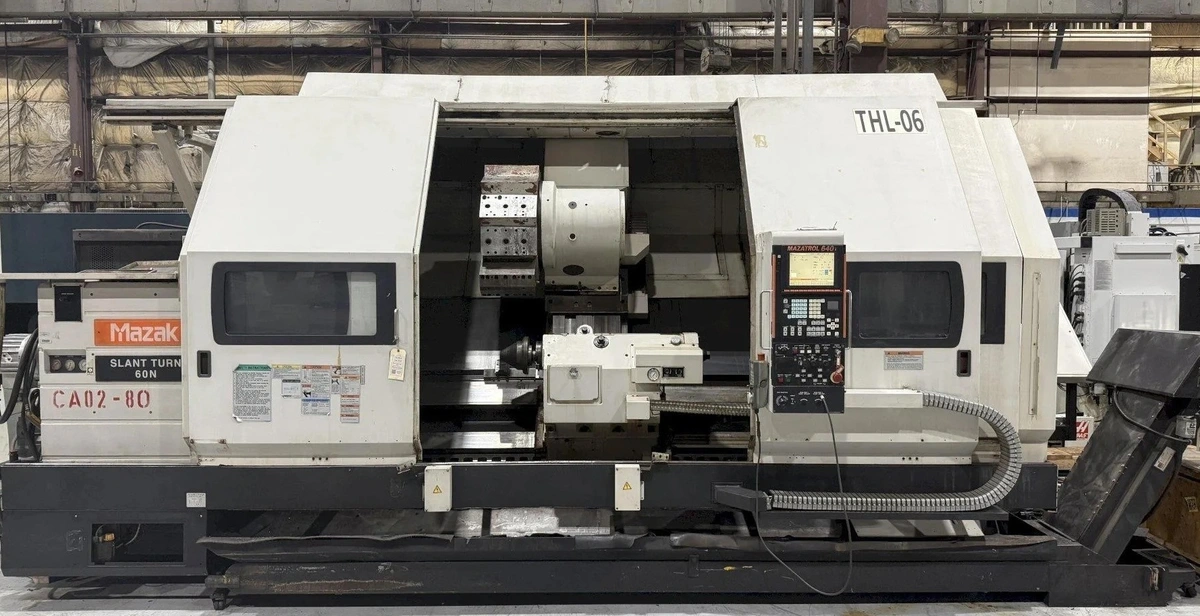

Used 2006 MAZAK SLANT TURN 60 N | Lathes CNC, 2-Axis & 3-Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, 2-Axis & 3-Axis
Manufacturer:
MAZAK
Model:
SLANT TURN 60 N
Year:
2006
Stock #:
10280
Status:
For Sale
Swing Over Bed36"914.4 mm
Machining Length118"2,997.2 mm
Distance Between Centers120"3,048 mm
Turning Diameter, Shaft Diameter28.75"730.25 mm
Chuck Size 124"609.6 mm
Spindle Nose 1A2-20A2-20
Spindle Bore Diameter 14.5"114.3 mm
Spindle Bar Capacity 14"101.6 mm
Spindle Speeds 11,000 RPM1,000 RPM
Spindle Horsepower 160 hp44.7 kW
X1 - Axis Travel25.3"642.62 mm
Z1 - Axis Travel120.1"3,050.5 mm
Rapid Traverse Rate - X1475 in/min.201.1 mm/sec.
Rapid Traverse Rate - Z1630 in/min.266.7 mm/sec.
Gear Ranges44
Turret Configuration 1105105
Programmable TailstockYESYES
Tailstock'Yes''Yes'
Live Tooling'No''No'
Sub Spindle'No''No'
Weight4188041880

MAZATROL 640T CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
KITAGAWA 24" HYDRAULIC CHUCK
TAILSTOCK
BACKGROUND PATH CHECK
EIA/ISO
2ND AUXI FUNCTIONS
THREAD START POINT COMPENSATION
DIRECT DWG SIZE INPUT
USER MACRO
600 MACRO VARIABLES
USER MACRO INTERRUPT
WORK COORDINATES SELECT
POLAR COORDINATE INPUT
EIA HELICAL AND COORDINATE
EIA HELICAL TAP
