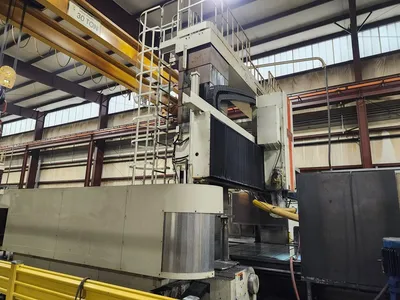

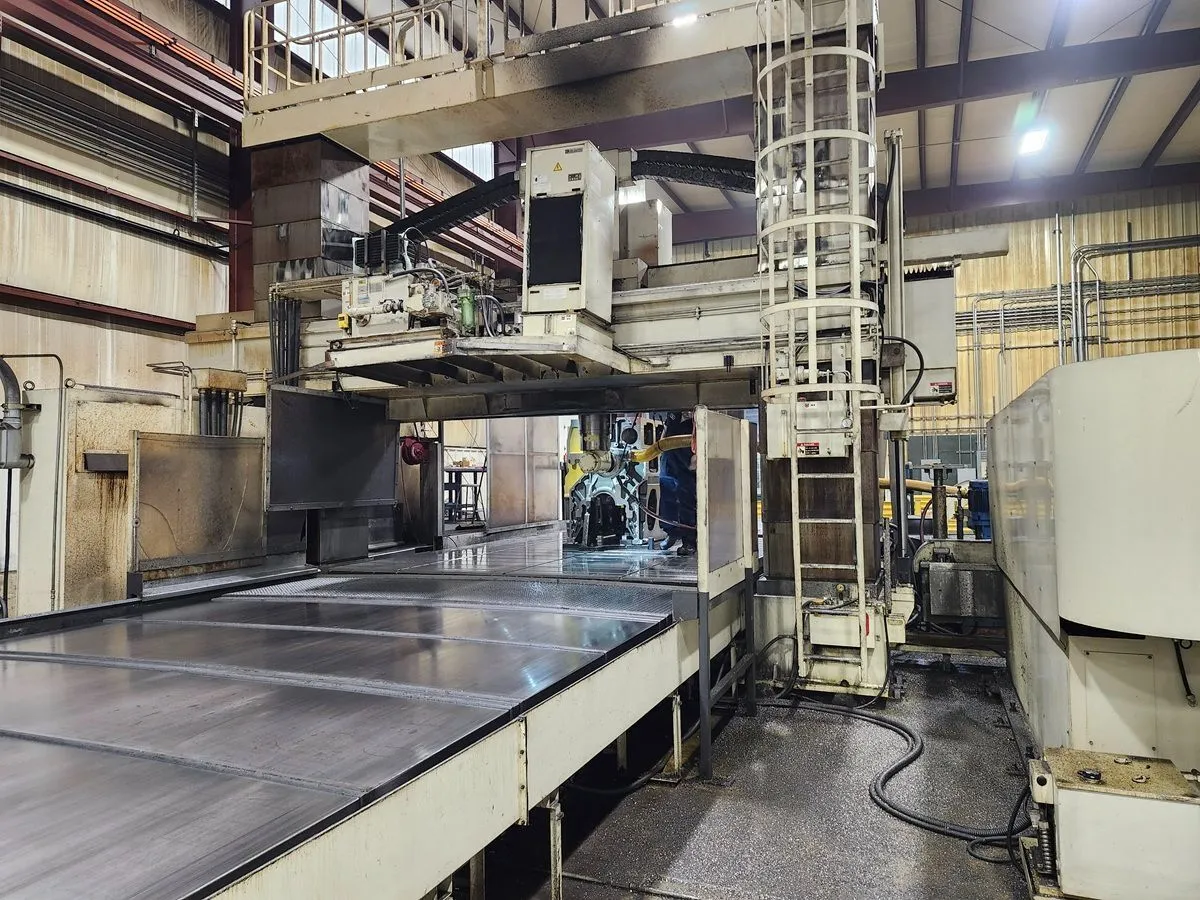

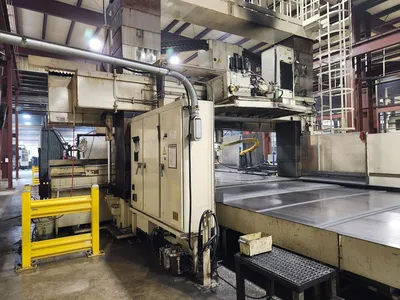

2006 SNK RB-7VM DOUBLE COLUMN BRIDGE TYPE GANTRY MILL WITH FIVE FACE MACHININ G CAPABILITY
Have one to sell?
ConditionUsed
1 available
SNK RB-7VM Gantry Mill, double column bridge with five-face machining. Features a 314.9" x 137.8" table, 324.8" X-axis travel, FANUC 31I-B CNC, auto tool length measuring, and a 60-tool auto changer. Equipped with special five-face software.
FANUC 31I-B CNC CONTROL
SCALE FEED BACK X,Y,Z
CHIP CONVEYORS ( 3 CONVEYORS TYPE)
SPECIAL FIVE FACE SOFTWARE (N5S-C5-01) FOR ATTACHMENT
RIGHT ANGLE HEAD & UNIVERSAL HEAD
PROBING CAPABLE
SNK RB-7VM Gantry Mill, double column bridge with five-face machining. Features a 314.9" x 137.8" table, 324.8" X-axis travel, FANUC 31I-B CNC, auto tool length measuring, and a 60-tool auto changer. Equipped with special five-face software.
Imperial
| Number Of Tables / Pallets | 1 |
| Table Size - L | 314.9" |
| Table Size - W | 137.8" |
| Distance Between Columns | 161.4" |
| Spindle Nose to Table Top | 98 |
| X - Axis Travel | 324.8" |
| Y - Axis Travel | 177.1" |
| Z - Axis Travel | 23.6" |
| W - Axis Positions | 82.6" |
| Rapid Traverse Rate - X | 591 in/min. |
| Rapid Traverse Rate - Y | 591 ipm |
| Rapid Traverse Rate - Z | 315 ipm |
| Cutting Feedrate | 236 in/min. |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | 50 BT |
| Number Of Gear Ranges | 2 |
| Main Motor | 40 hp |
| Automatic Tool Changer | 60 |
| Tool Diameter | 9.13" |
| Tool Length | 15.7" |
| Tool Weight | 44 lb |
| Control | CNC (FANUC 15I-M CNC COLOR CONTROL) |
FANUC 31I-B CNC CONTROL
SCALE FEED BACK X,Y,Z
CHIP CONVEYORS ( 3 CONVEYORS TYPE)
SPECIAL FIVE FACE SOFTWARE (N5S-C5-01) FOR ATTACHMENT
RIGHT ANGLE HEAD & UNIVERSAL HEAD
PROBING CAPABLE
