| Swing Over Bed | 33.5" | 850.9 mm |
| Turning Diameter | 16.5" | 419.1 mm |
| Turning Length | 123" | 3,124.2 mm |
| Distance Between Centers | 126" | 3,200.4 mm |
| Chuck Size 1 | 10" | 254 mm |
| Spindle Nose 1 | A2-11 | A2-11 |
| Spindle Bore Diameter 1 | 4.5" | 114.3 mm |
| Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 2,800 RPM | 2,800 RPM |
| Spindle Horsepower 1 | 30 hp | 22.4 kW |
| X1 - Axis Travel | 11.5" | 292.1 mm |
| Z1 - Axis Travel | 125.6" | 3,190.2 mm |
| Y1 - Axis Travel | 5.1" | 129.54 mm |
| C - Axis Indexing 1 | 0.00 | 0.00 |
| Rapid Traverse Rate - X1 | 1181 ipm | |
| Rapid Traverse Rate - Z1 | 1181 ipm | |
| Rapid Traverse Rate - Y1 | 393 ipm | |
| Turret Tool Positions 1 | 12.055 station | 12.055 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | 7.5 kW |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Taper | MT 5 | MT 5 |
| Tailstock Quill Travel | 4.7" | 119.38 mm |
| Programmable Tailstock | 'Yes' | 'Yes' |
| Tailstock Travel | 118 | 118 |
| Machine Weight | 27,116 lb | 12,299.6 kg |
| Control | CNC (FANUC 0-IT PLUS CNC COLOR CONTROL) | CNC (FANUC 0-IT PLUS CNC COLOR CONTROL) |
| Weight | 17637.00 | 17637.00 |

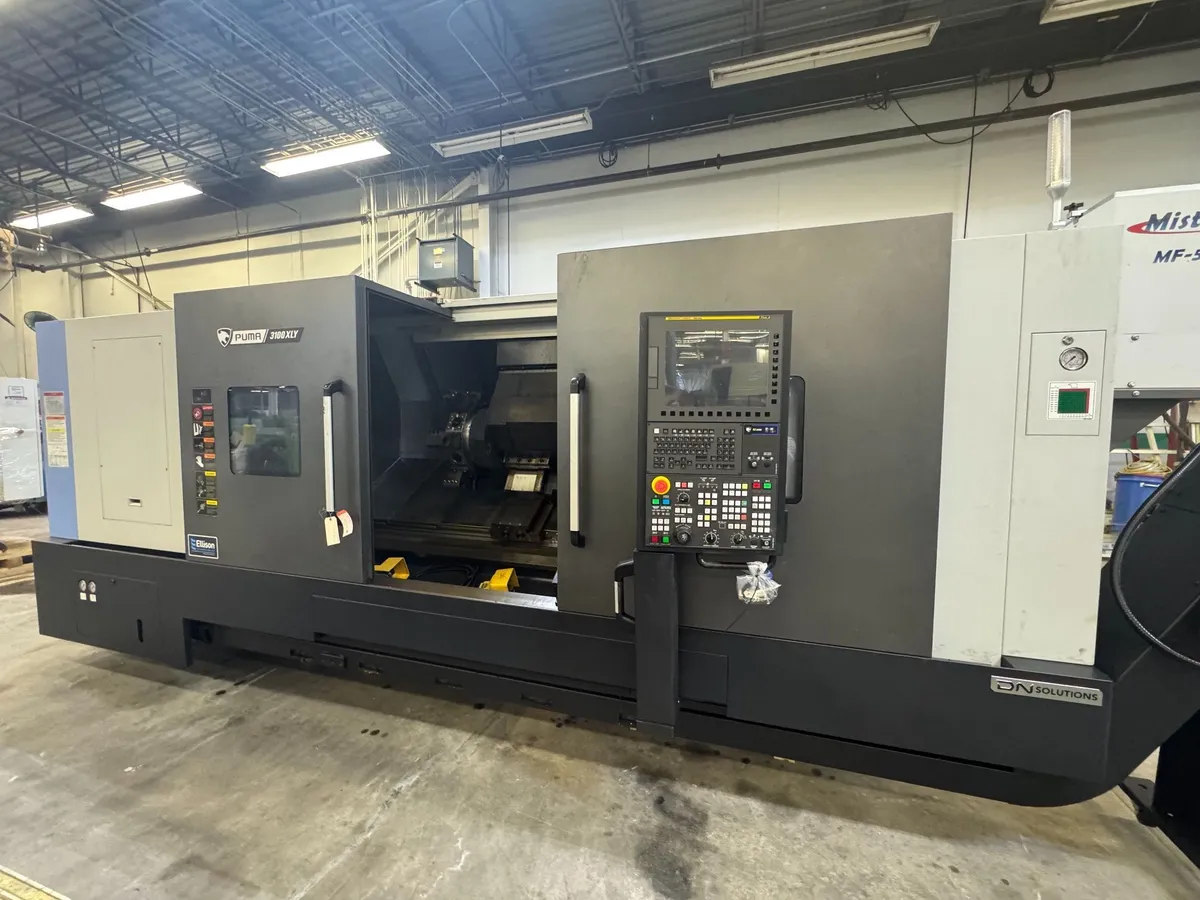

DN SOLUTIONS FANUC SERIES 0I PLUS CNC COLOR CONTROL
TOOL PRESETTER
TOOL LOAD MONITORING
ETHERNET
CHIP CONVEYOR
HYDRAULIC STEADY REST SLU-Z-3.2
2 RADIAL AND 2 AXIAL LIVE MILLING HOLDERS
STRUCTURED THERMAL GROWTH COMPENSATION
P-60 HIGH TORQUES SPINDLE MOTOR 848 FT-LBS
This equipment is currently unavailable. Similar equipment available now is shown below.
