| Swing Over Bed | 25.6" | 650.24 mm |
| Machining Length | 42.4" | 1,077 mm |
| Distance Between Centers | 45" | 1,143 mm |
| Turning Diameter, Shaft Diameter | 18.1" | 459.74 mm |
| Distance Between Spindles | 0" | 0 mm |
| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.6" | 91.44 mm |
| Spindle Bar Capacity 1 | 3.2" | 81.28 mm |
| Spindle Speeds 1 | 3,500 RPM | 3,500 RPM |
| Spindle Horsepower 1 | 34.9 hp | 26 kW |
| X1 - Axis Travel | 10.2" | 259.08 mm |
| Z1 - Axis Travel | 43.3" | 1,099.8 mm |
| C1 - Axis Travel | .001 | .001 |
| W - Axis Travel Sub Spindle | 0 | 0 |
| Rapid Traverse Rate - X1 | 945 in/min. | 400.1 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. | 500 mm/sec. |
| Spindle Torque | 542 | 542 |
| Gear Ranges | 2 | 2 |

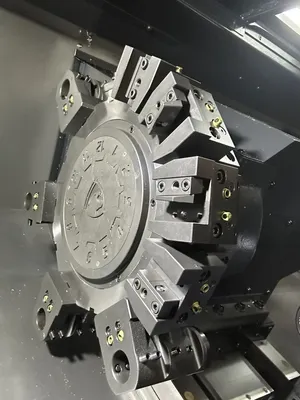

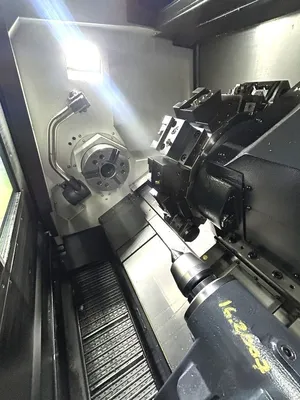

| Turret Configuration 1 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 6,000 RPM | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp | |
| Tailstock Quill Diameter | 3.9" | 99.06 mm |
| Tailstock Taper | MT 5 | MT 5 |
| Tailstock Quill Travel | 3.9" | 99.06 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 43.3" | 1,099.8 mm |
| # Axis | 3 | 3 |
| Bar Capacity | 3.2" | 81.28 mm |
| Tailstock | YES | YES |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | NO | NO |

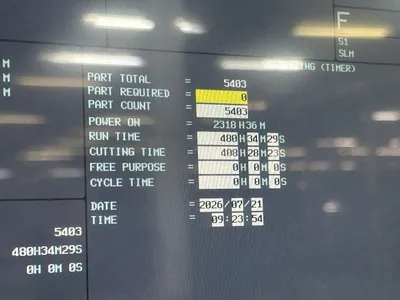

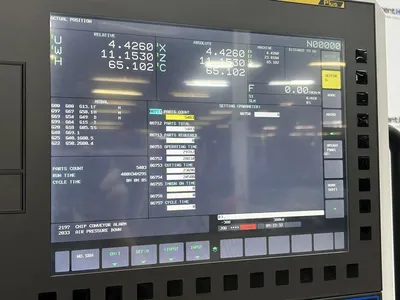

| Control | CNC (FANUC SERIES I PLUS CNC COLOR CONTROL) | CNC (FANUC SERIES I PLUS CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |

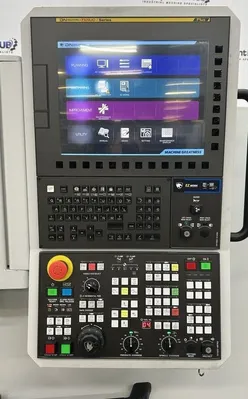

FANUC SERIES I CNC CONTROL
STANDARD STATIC HOLDERS
TOOL PRESETTER

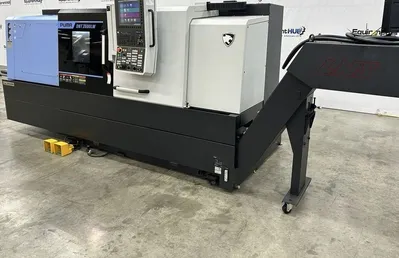

CHIP CONVEYOR

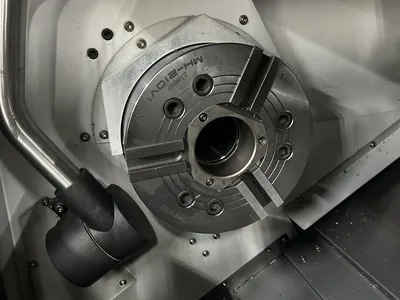

12" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
This equipment is currently unavailable. Similar equipment available now is shown below.
