| Swing Over Bed | 33.26" | 844.8 mm |
| Machining Length | 40.2" | 1,021.1 mm |
| Turning Diameter, Shaft Diameter | 22.8" | 579.12 mm |
| Chuck Size 1 | 18" | 457.2 mm |
| Spindle Nose 1 | A2 - 15 | A2 - 15 |
| Spindle Bore Diameter 1 | 7.1" | 180.34 mm |
| Spindle Bar Capacity 1 | 6.53" | 165.86 mm |
| Spindle Speeds 1 | 2,000 RPM | 2,000 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |
| X1 - Axis Travel | 12.21" | 310.13 mm |
| Z1 - Axis Travel | 40.12" | 1,019 mm |
| Rapid Traverse Rate - X1 | 1,181 in/min. | 500 mm/sec. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. | 500 mm/sec. |
| Turret Configuration 1 | 24 | 24 |
| Tailstock Taper | MT 5 | MT 5 |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 40.37" | 1,025.4 mm |
| # Axis | 2 | 2 |
| Bar Capacity | 6.5" | 165.1 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) |
| Weight | 0.00 | 0.00 |

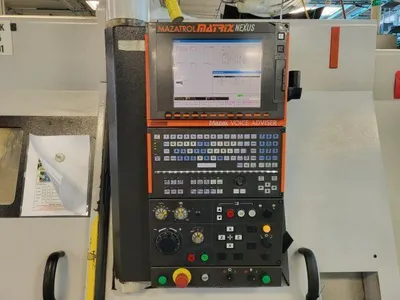

MAZATROL MATRIX CNC CONTROL
AUTOMATIC TOOL SETTER
CHIP CONVEYOR
REAR CHUCK PREP
SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
COMPARISON STOP, G54.1, SYNC. MILL TAPPING
VARIABLE 600 SETS, EIA HELICAL TAP, PATTERN CYCLE
TILTED WORK PLANE, PITCH ERROR COMP
THREAD POINT START COMP.
CYLINDER, EIA
This equipment is currently unavailable. Similar equipment available now is shown below.
