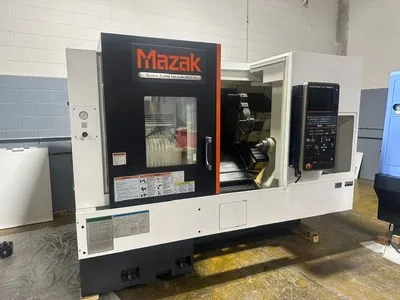

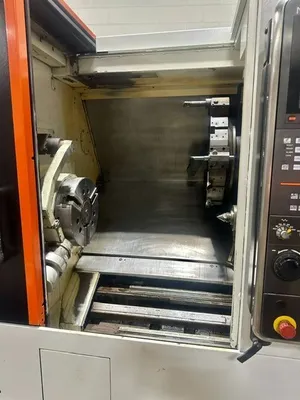

MAZAK NEXUS QTN 350II/650 CNC UNIVERSAL LATHE
Have one to sell?
ConditionUsed
1 available
2015 MAZAK NEXUS QTN 350II/650 CNC Universal Lathe; used, 2-axis, swing over bed 26.7", 16.54" turning diameter, 40 hp spindle, 3,300 RPM, MAZATROL MATRIX 2 CNC control, chip conveyor, 15" chuck. Ideal for versatile machining needs.

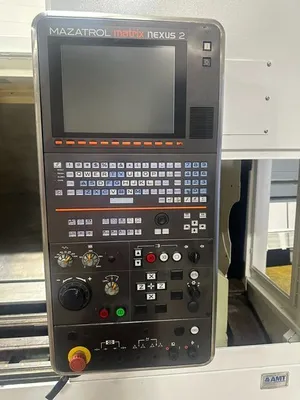

MAZATROL MATRIX 2 CNC COLOR CONTROL
USB I/F 2 PORT
LAN PORT
WINDOWS OPERATING SYSTEM XP
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
EIA, SPIRAL EIA 3D COMP., ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
THRED, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT, COMPARISON STOP
G54.1, VARIABLE 600 SETS, EIA HELICAL TAP CYCLE, EIA PATER CYCLE,
TILTED WORK PLANE, PITCH ERROR COMP.
CHIP CONVEYOR
ALL MANUALS
2015 MAZAK NEXUS QTN 350II/650 CNC Universal Lathe; used, 2-axis, swing over bed 26.7", 16.54" turning diameter, 40 hp spindle, 3,300 RPM, MAZATROL MATRIX 2 CNC control, chip conveyor, 15" chuck. Ideal for versatile machining needs.
Imperial
| Swing Over Bed | 26.7" |
| Machining Length | 23.8" |
| Turning Diameter, Shaft Diameter | 16.54" |
| Chuck Size 1 | 15" |
| Spindle Nose 1 | A2 - 11 |
| Spindle Bore Diameter 1 | 4.41" |
| Spindle Bar Capacity 1 | 4" |
| Spindle Speeds 1 | 3,300 RPM |
| Spindle Horsepower 1 | 40 hp |
| X1 - Axis Travel | 8.8" |
| Z1 - Axis Travel | 26.7" |
| Rapid Traverse Rate - X1 | 1,181 in/min. |
| Rapid Traverse Rate - Z1 | 1,299 in/min. |
| Turret Configuration 1 | 12 |
| Tailstock Taper | MT 5 |
| Tailstock Travel | 25.5" |
| # Axis | 2 |
| Bar Capacity | 4" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Control | CNC (MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL) |
| Weight | 0.00 |
MAZATROL MATRIX 2 CNC COLOR CONTROL
USB I/F 2 PORT
LAN PORT
WINDOWS OPERATING SYSTEM XP
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
EIA, SPIRAL EIA 3D COMP., ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
THRED, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT, COMPARISON STOP
G54.1, VARIABLE 600 SETS, EIA HELICAL TAP CYCLE, EIA PATER CYCLE,
TILTED WORK PLANE, PITCH ERROR COMP.
CHIP CONVEYOR
ALL MANUALS
