Used 2014 MAZAK QUICK TURN NEXUS 350MSY | Lathes CNC, Y-Axis / Multi Axis

Have one to sell?

mike@usedcncllc.com

ConditionUsed

Quantity

1 available

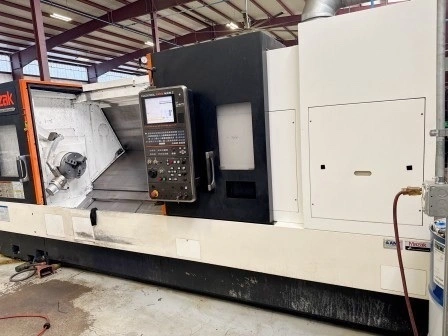

2014 MAZAK QUICK TURN NEXUS 350MSY Lathes CNC, Y-Axis / Multi Axis | USED CNC (1)

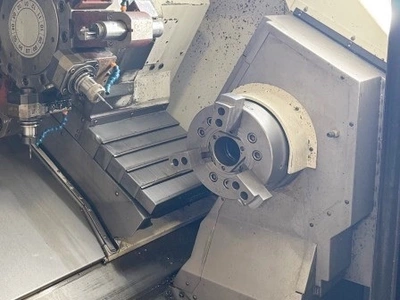

2014 MAZAK QUICK TURN NEXUS 350MSY Lathes CNC, Y-Axis / Multi Axis | USED CNC (2)

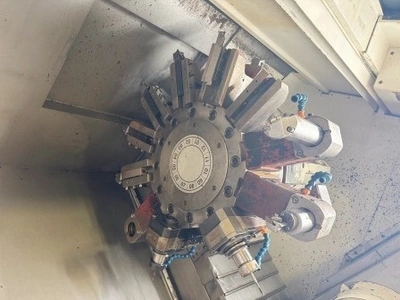

2014 MAZAK QUICK TURN NEXUS 350MSY Lathes CNC, Y-Axis / Multi Axis | USED CNC (3)

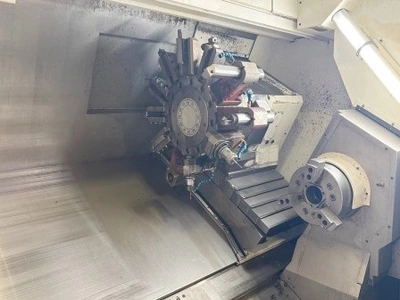

2014 MAZAK QUICK TURN NEXUS 350MSY Lathes CNC, Y-Axis / Multi Axis | USED CNC (4)

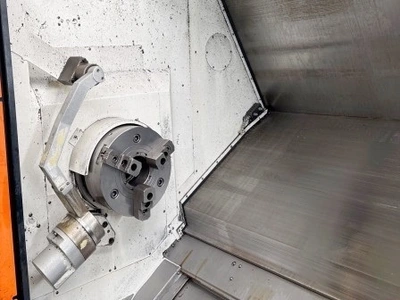

2014 MAZAK QUICK TURN NEXUS 350MSY Lathes CNC, Y-Axis / Multi Axis | USED CNC (5)

2014 MAZAK QUICK TURN NEXUS 350MSY Lathes CNC, Y-Axis / Multi Axis | USED CNC

Have one to sell?

Overview

Type:

Lathes CNC, Y-Axis / Multi Axis

Manufacturer:

Model:

QUICK TURN NEXUS 350MSY

Year:

2014

Stock #:

10292

Status:

For Sale

ImperialMetric

Swing Over Bed	29.5"	749.3 mm
Turning Diameter	16.5"	419.1 mm
Turning Length	63.19"	1,605 mm
Chuck Size 1	12"	304.8 mm
Spindle Nose 1	A2-11	A2-11
Spindle Bore Diameter 1	4.41"	112.01 mm
Bar Capacity 1	4"	101.6 mm
Spindle Speeds 1	3,300 RPM	3,300 RPM
Spindle Horsepower 1	40 hp	29.8 kW
Chuck Size 2	10"	254 mm
Spindle Nose 2	A2-8	A2-8
Spindle Speeds 2	4,000 RPM	4,000 RPM
Spindle Horsepower 2	25 hp	18.6 kW
X1 - Axis Travel	10.75"	273.05 mm
Z1 - Axis Travel	63.19"	1,605 mm
Y1 - Axis Travel	4"	101.6 mm
C - Axis Indexing 1	0.00	0.00
Rapid Traverse Rate - X1	1181 ipm
Rapid Traverse Rate - Z1	1181 ipm
Rapid Traverse Rate - Y2	1,181 in/min.	30 m/min.
Turret Tool Positions 1	12 station	12 station
Turret Rotary Tool Speeds 1	4,000 RPM	4,000 RPM
Programmable Tailstock	'No'	'No'
Machine Weight	29,000 lb	13,154.2 kg
Dimensions	85.4" x 95.3" x 220.5"	85.4" x 95.3" x 220.5"

MAZATROL MATRIX NEXUS 2 CNC CONTROL
COOLANT THRU SPINDLE
HELICAL
SYNCH TAPPING
EIA/ISO
TOOL PRESETTER
CHIP CONVEYOR
