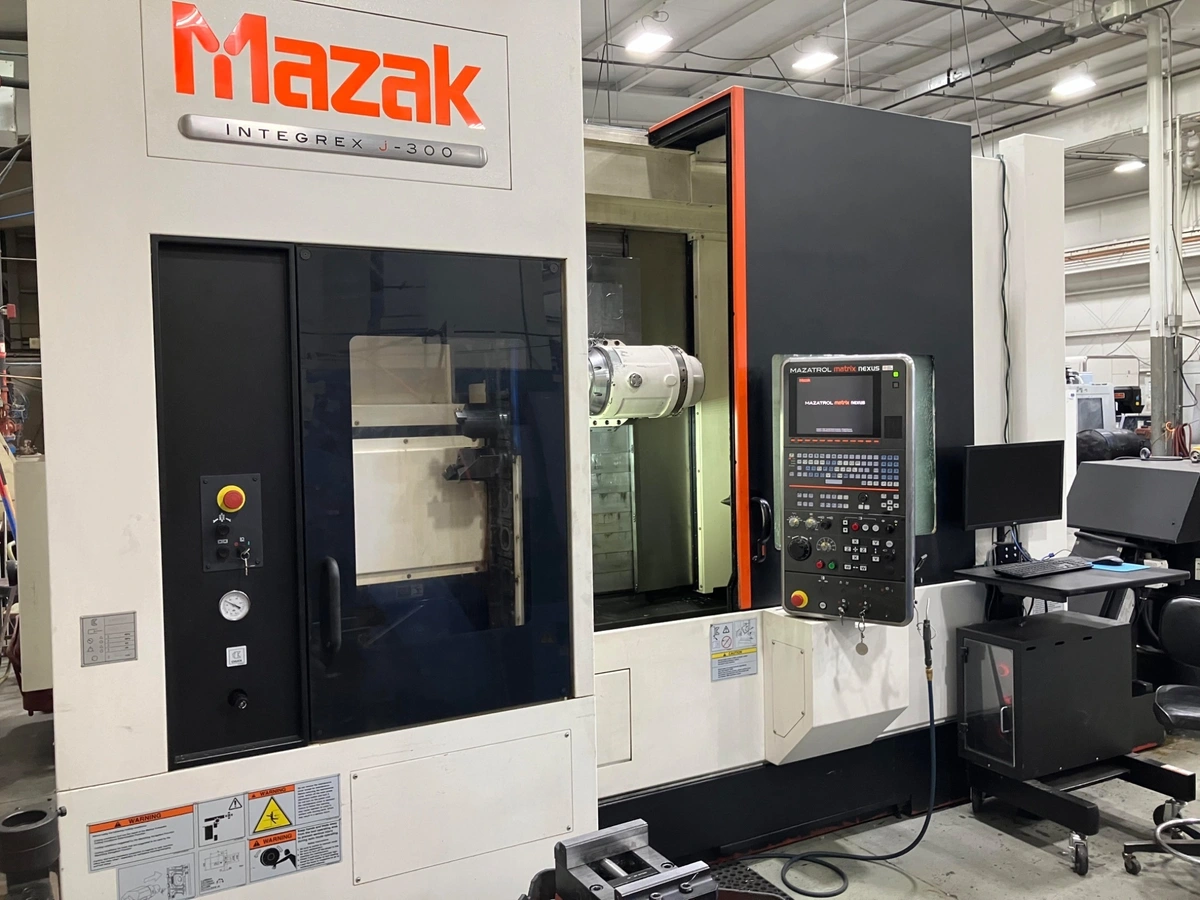

Used 2012 MAZAK INTEGREX J 300 | Lathes CNC, Y-Axis / Multi Axis

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Lathes CNC, Y-Axis / Multi Axis
Manufacturer:
MAZAK
Model:
INTEGREX J 300
Year:
2012
Stock #:
10294
Status:
For Sale
Swing Over Bed25.91"658.11 mm
Turning Diameter19.69"500.13 mm
Turning Length24.76"628.9 mm
Chuck Size 110"254 mm
Spindle Nose 1A2-8A2-8
Spindle Bore Diameter 13.58"90.932 mm
Bar Capacity 13.15"80.01 mm
Spindle Speeds 14,000 RPM4,000 RPM
Spindle Horsepower 140 hp29.8 kW
B - Axis Head Travel-30 ~ 190 DEGREES DEGREES-30 ~ 190 DEGREES DEGREES
B - Axis Head Indexing11
B - Axis Milling Spindle TaperCAPTO C6CAPTO C6
B - Axis Milling Spindle Speed12,000 RPM12,000 RPM
B - Axis Milling Spindle Horse Power30 hp22.4 kW
ATC For Milling Spindle3636
Tool Diameter2.762.76
Tool Length7.87"199.9 mm
Tool Weight8.8 lb4 kg
X1 - Axis Travel24.21"614.93 mm
Z1 - Axis Travel40.39"1,025.9 mm
Y1 - Axis Travel9.84"249.94 mm
C - Axis Indexing 10.000.00
Rapid Traverse Rate - X11024 ipm
Rapid Traverse Rate - Z11181 ipm
Rapid Traverse Rate - Y11299 ipm
Tailstock TaperMT #4MT #4
Programmable Tailstock'Yes''Yes'
Tailstock Travel40.3940.39
Machine Weight27,530 lb12,487.4 kg

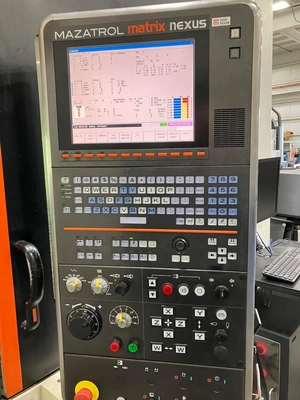

MAZATROL MATRIX NEXUS CNC CONTROL
TOOL PRESETTER
EIA/ISO CODE INPUT
COOLANT THRU SPINDLE 213 MAZAK HP COOLANT PUMP

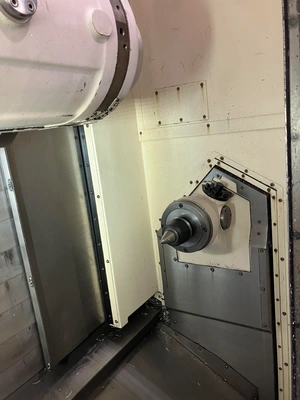

LIVE TAILSTOCK CENTER
CHIP CONVEYOR
