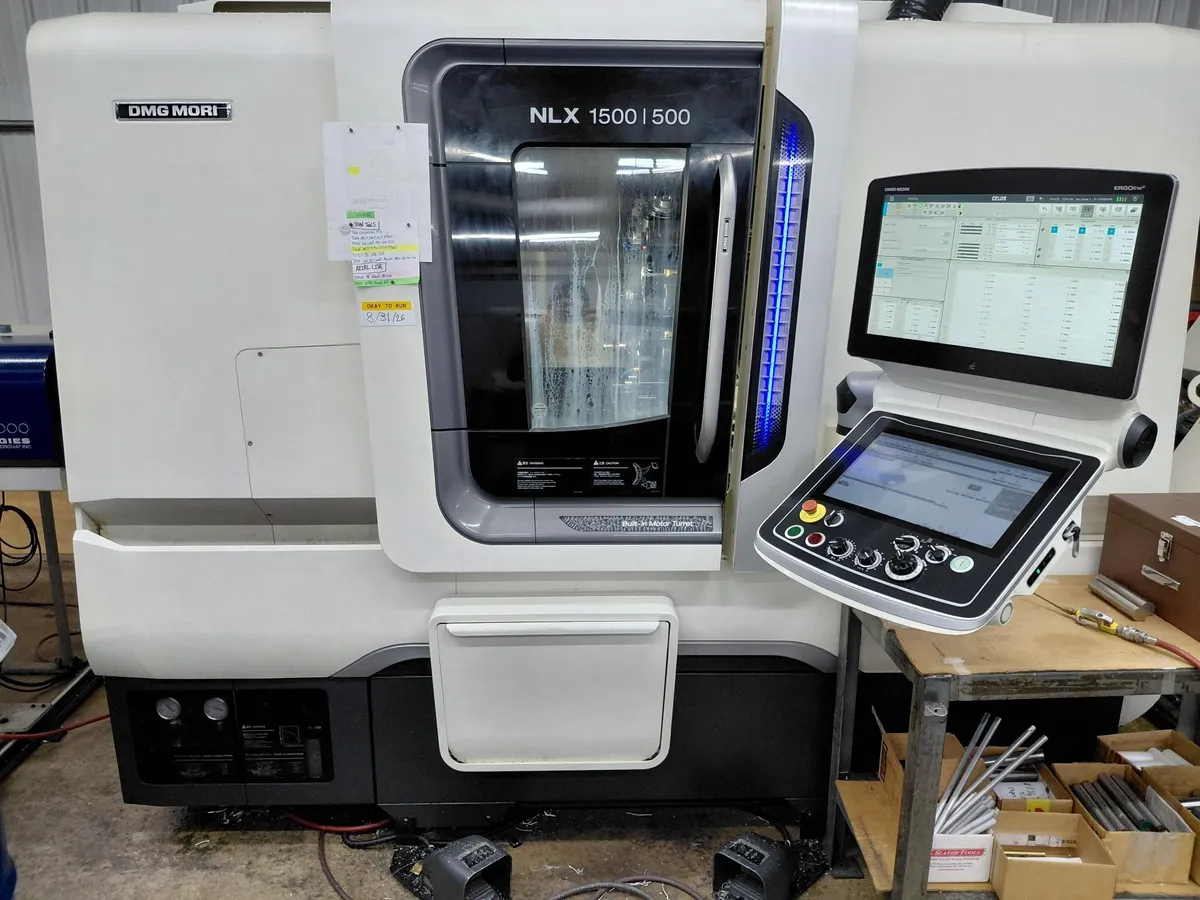

DMG MORI NLX 1500SY/500 CNC LATHE W/MILLING, Y AXIS & SUB SPINDLE
Have one to sell?
ConditionUsed
1 available
DMG MORI NLX 1500SY/500 CNC Lathe for sale. Features a 24.6" swing over bed, 14.4" turning diameter, and dual spindles with speeds up to 6,000 RPM. Equipped with CELOS control, chip conveyor, BMT turret, Y Axis, Sub Spindle and Bar Feed System
CELOS CNC COLOR CONTROL WITH FNUC BACKGROUND
6" 3 JAW THRU HOLE HYDRAULIC CHUCK ON MAIN
5" 3 JAW HYDRAUILC CHUCK ON SUB
AUTO PARTS CATCHER
CHIP CONVEYOR
AUTO TOOL PRESETTER MAIN SPINDLE REMOVABLE TOOL SETTER SUB SPINDLE
BMT STYLE TURRET FOR ROTARY TOOLS
(2) LIVE HOLDERS, 1 AXIAL 1 RADIAL
FULL COMPLIMENT OF STATIC TOOL HOLDERS
ALL AVAILABLE MANUALS
VERY LOW HOURS
EDGE TECH. REBEL V-65 SERVO SHORT MAGAZINE BAR FEED SYSTEM
DMG MORI NLX 1500SY/500 CNC Lathe for sale. Features a 24.6" swing over bed, 14.4" turning diameter, and dual spindles with speeds up to 6,000 RPM. Equipped with CELOS control, chip conveyor, BMT turret, Y Axis, Sub Spindle and Bar Feed System
Imperial
| Swing Over Bed | 25" |
| Turning Diameter | 14.4" |
| Turning Length | 20.2" |
| Distance Between Spindles | 24.6" |
| Chuck Size 1 | 6" |
| Spindle Nose 1 | A2 - 5 |
| Spindle Bore Diameter 1 | 2.4" |
| Bar Capacity 1 | 2" |
| Spindle Speeds 1 | 6,000 RPM |
| Spindle Horsepower 1 | 20 hp |
| Chuck Size 2 | 5" |
| Spindle Nose 2 | A2 - 5 |
| Spindle Bore Diameter 2 | 1.7" |
| Spindle Speeds 2 | 6,000 RPM |
| Spindle Horsepower 2 | 15 hp |
| X1 - Axis Travel | 10.2" |
| Z1 - Axis Travel | 23.2" |
| Y1 - Axis Travel | 3.9" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.001 |
| W - Axis Travel Sub Spindle | 24.6" |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1181 ipm |
| Rapid Traverse Rate - Y1 | 393 ipm |
| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 10,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Machine Weight | 11,880 lb |
| Control | CNC |
| Weight | 11000.00 |
CELOS CNC COLOR CONTROL WITH FNUC BACKGROUND
6" 3 JAW THRU HOLE HYDRAULIC CHUCK ON MAIN
5" 3 JAW HYDRAUILC CHUCK ON SUB
AUTO PARTS CATCHER
CHIP CONVEYOR
AUTO TOOL PRESETTER MAIN SPINDLE REMOVABLE TOOL SETTER SUB SPINDLE
BMT STYLE TURRET FOR ROTARY TOOLS
(2) LIVE HOLDERS, 1 AXIAL 1 RADIAL
FULL COMPLIMENT OF STATIC TOOL HOLDERS
ALL AVAILABLE MANUALS
VERY LOW HOURS
EDGE TECH. REBEL V-65 SERVO SHORT MAGAZINE BAR FEED SYSTEM
