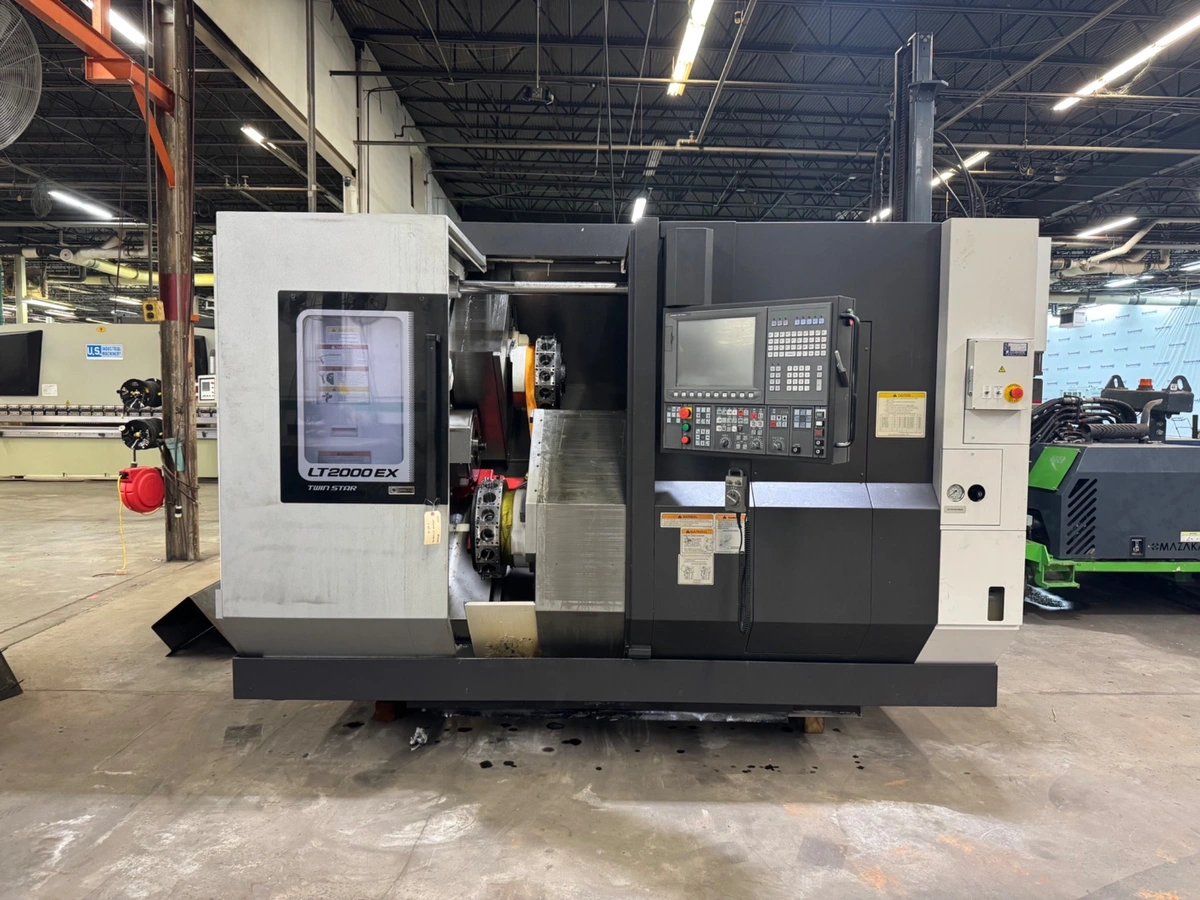

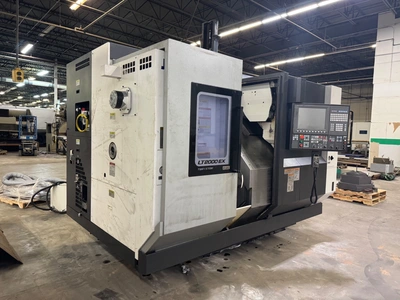

Used 2022 OKUMA LT-2000EXBB-2T2MY | Lathes CNC, Y-Axis / Multi Axis
Have one to sell?
ConditionUsed
1 available

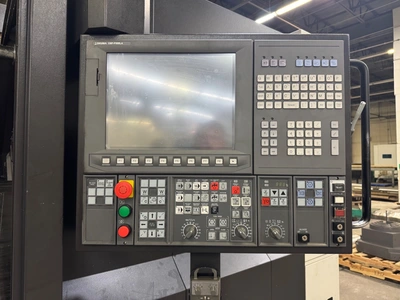

OSP P300LA CNC CONTROL
BIG BORE A2-6 OPTION
SPINDLE MOTORS 22KW LEFT/RIGHT
TOUCHSETTER AUTO FOR MAIN SPINDLE
PART UNLOADER BUILT IN
CEILING SHOWER COOLANT TYPE B
DELETE PARTS CATCHER PREP
SIDE DISCHARGE CHIP CONVEYOR
COMMON VARIABLES 1000 SETS
NO-LOAD MONITOR FUNCTION
SPARE M-CODS 8 SETS
NEGATIVE TOOL RADIUS COMPENSATION
TOOL LIFE NOTIFICATION
C AXIS SYNC BOTH SPINDLES
PREP FOR MIST COLLECTOR
AUTO DOOR WITH RUBBER TAPE SWITCH
TURRET AIR BLOW
AUTO GAUGING REMISHAW RLP40, RMI-Q
C-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
Y-AXIS GAUGING
Z-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
RENISHAW INSPECTION PLUS SOFTWARE W/GUI LATHE
BARFEEDER INTERFACE
Imperial
| Swing Over Bed | 15.75" |
| Distance Between Spindles | 37.8" |
| Spindle Nose 1 | A2-6 |
| Spindle Bore Diameter 1 | 3.15" |
| Bar Capacity 1 | 2.5" |
| Spindle Speeds 1 | 5,000 RPM |
| Spindle Horsepower 1 | 30 hp |
| Spindle Nose 2 | 140 FLAT |
| Spindle Speeds 2 | 5,000 RPM |
| Spindle Horsepower 2 | 30 hp |
| X1 - Axis Travel | 8.07" |
| X2 - Axis Travel | 8.07" |
| Z1 - Axis Travel | 27.56" |
| Z2 - Axis Travel | 27.56" |
| Y1 - Axis Travel | 3.74" |
| Y2 - Axis Travel | 3.74" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.001 |
| W - Axis Travel Sub Spindle | 28.74" |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - X2 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1575 ipm |
| Rapid Traverse Rate - Z2 | 1575 ipm |
| Rapid Traverse Rate - Y1 | 591 ipm |
| Rapid Traverse Rate - Y2 | 591 in/min. |
| Turret Tool Positions 1 | 16 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Turret Tool Positions 2 | 16 |
| Turret Rotary Tool Speeds 2 | 6,000 RPM |
| Turret Rotary Tool Horse Power 2 | 7.5 hp |
| Programmable Tailstock | 'No' |
| Dimensions | 147.44" x 97.01" x 92.52" |
| Weight | 19800 LBS |
OSP P300LA CNC CONTROL
BIG BORE A2-6 OPTION
SPINDLE MOTORS 22KW LEFT/RIGHT
TOUCHSETTER AUTO FOR MAIN SPINDLE
PART UNLOADER BUILT IN
CEILING SHOWER COOLANT TYPE B
DELETE PARTS CATCHER PREP
SIDE DISCHARGE CHIP CONVEYOR
COMMON VARIABLES 1000 SETS
NO-LOAD MONITOR FUNCTION
SPARE M-CODS 8 SETS
NEGATIVE TOOL RADIUS COMPENSATION
TOOL LIFE NOTIFICATION
C AXIS SYNC BOTH SPINDLES
PREP FOR MIST COLLECTOR
AUTO DOOR WITH RUBBER TAPE SWITCH
TURRET AIR BLOW
AUTO GAUGING REMISHAW RLP40, RMI-Q
C-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
Y-AXIS GAUGING
Z-AXIS AUTO ZERO OFFSET FUNCTION, BOTH SPINDLES
RENISHAW INSPECTION PLUS SOFTWARE W/GUI LATHE
BARFEEDER INTERFACE
