DOOSAN PUMA TT 1800 SY CNC MULTITASKING CENTER WITH Y AXIS WITH BAR FEED
Have one to sell?
ConditionUsed
1 available

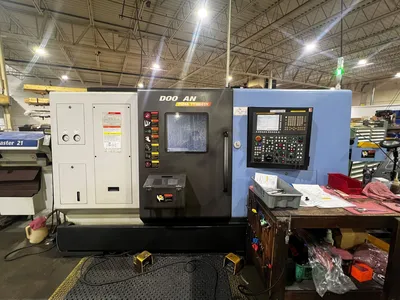

2010 Doosan Puma TT1800SY CNC multitasking center with Y-axis, equipped with bar feed, 8" hydraulic chucks, and tool setter. Features include 5,000 RPM spindle speeds, 30 hp, IEMCA Master 21 bar feed, and a chip blaster unit. Perfect for high-precision tasks.
Y AXIS UPPER TURRET ONLY
CHIP CONVEYOR
BAR FEED INTERFACE

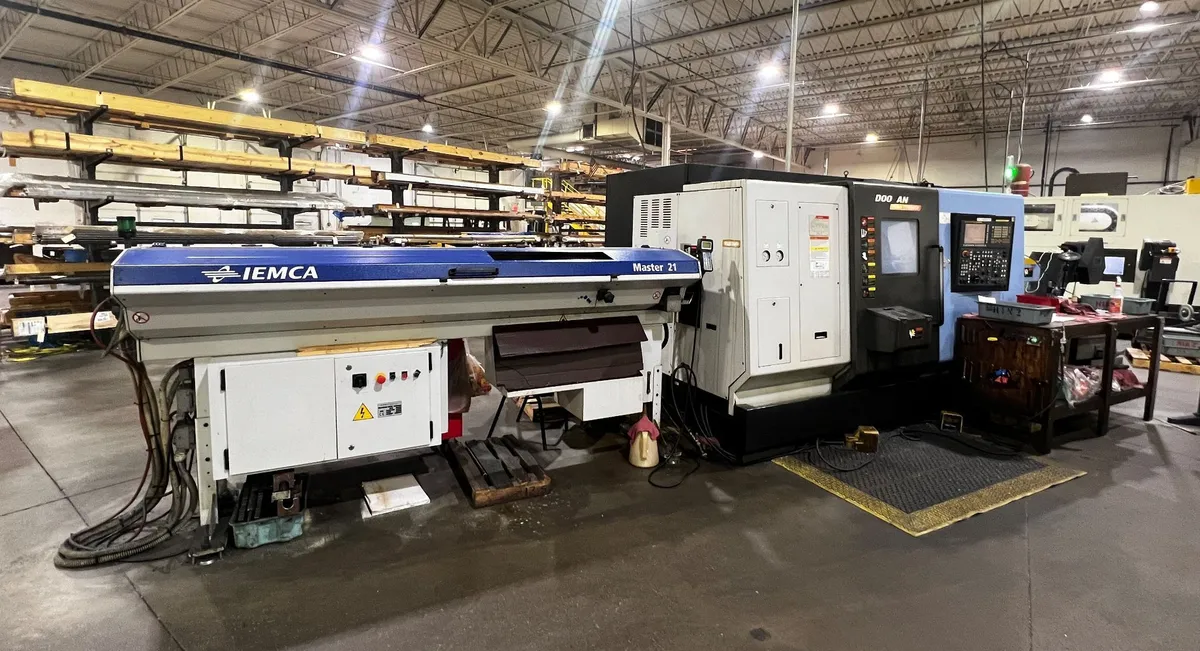

IEMCA MASTER 21 880 SHORT MAGAZINE BAR FEED SYSTEM
TOOL SETTER
S - 26 COLLET CHUCK MAIN & SUB SPINDLE
8" / 8" 3 JAW HYDRAULIC CHUCKS
OVERHEAD PARTS CATCHER
(4) X - AXIS ROTARY HEADS
(2) Z - AXIS ROTARY HEADS
STANDARD STATIC HOLDERS
CHIP BLASTER UNIT 1000 PSI THROUGH THE TOOL COOLANT
2010 Doosan Puma TT1800SY CNC multitasking center with Y-axis, equipped with bar feed, 8" hydraulic chucks, and tool setter. Features include 5,000 RPM spindle speeds, 30 hp, IEMCA Master 21 bar feed, and a chip blaster unit. Perfect for high-precision tasks.
Imperial
| Turning Diameter | 9.05" |
| Turning Length | 27" |
| Distance Between Spindles | 38.5" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2 -6 |
| Spindle Bore Diameter 1 | 2.99" |
| Bar Capacity 1 | 2.6" |
| Spindle Speeds 1 | 5,000 RPM |
| Spindle Horsepower 1 | 30 hp |
| Chuck Size 2 | 8" |
| Spindle Nose 2 | A2 - 6 |
| Spindle Bore Diameter 2 | 2.99" |
| Bar Capacity 2 | 2.55" |
| Spindle Speeds 2 | 5,000 RPM |
| Spindle Horsepower 2 | 30 hp |
| X1 - Axis Travel | 6.5" |
| X2 - Axis Travel | 7.48" |
| Z1 - Axis Travel | 27.5" |
| Z2 - Axis Travel | 28.34" |
| Y1 - Axis Travel | 3.93" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.002 |
| W - Axis Travel Sub Spindle | 30.3" |
| Rapid Traverse Rate - X1 | 787 ipm |
| Rapid Traverse Rate - X2 | 787 ipm |
| Rapid Traverse Rate - Z1 | 1575 ipm |
| Rapid Traverse Rate - Z2 | 1575 ipm |
| Rapid Traverse Rate - Y1 | 295 ipm |
| Turret Tool Positions 1 | 122455 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Turret Tool Positions 2 | 122455 |
| Turret Rotary Tool Speeds 2 | 5,000 RPM |
| Turret Rotary Tool Horse Power 2 | 7.5 hp |
| Machine Weight | 19,400 lb |
| Control | CNC (FANUC 31i - A CNC COLOR CONTROL) |
| Weight | 0.00 |
Y AXIS UPPER TURRET ONLY
CHIP CONVEYOR
BAR FEED INTERFACE
IEMCA MASTER 21 880 SHORT MAGAZINE BAR FEED SYSTEM
TOOL SETTER
S - 26 COLLET CHUCK MAIN & SUB SPINDLE
8" / 8" 3 JAW HYDRAULIC CHUCKS
OVERHEAD PARTS CATCHER
(4) X - AXIS ROTARY HEADS
(2) Z - AXIS ROTARY HEADS
STANDARD STATIC HOLDERS
CHIP BLASTER UNIT 1000 PSI THROUGH THE TOOL COOLANT
