2018 DOOSAN PUMA 8300RM 3 AXIS VERTICAL TURNING CENTER WITH MILLING
Have one to sell?
ConditionUsed
1 available

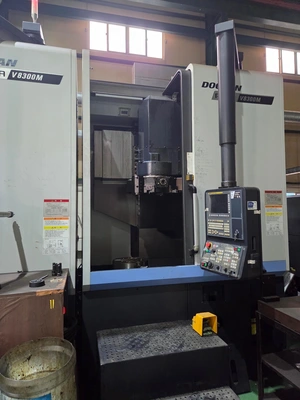

Used 2018 Doosan PUMA V8300RM Boring Mill: 24" table, 1,918 lb capacity, 50 hp main motor, 2,000 RPM table speed. Features FANUC I CNC control, chip conveyor, tool setter, and live holders. Equipped with a 24" hydraulic chuck and 12-station turret and removable tool presetter.
FANUC I CNC CONTROL
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
CHIP CONVEYOR
EMBEDDED ETHERNET FUNCTION
SIGNAL TOWER
DOOSAN TOOL LOAD MONITORING
REMOVABLE TOOL SETTER
15" HYDRAULIC CHUCK
2 AXIAL AND 2 RADIAL LIVE HOLDERS
Used 2018 Doosan PUMA V8300RM Boring Mill: 24" table, 1,918 lb capacity, 50 hp main motor, 2,000 RPM table speed. Features FANUC I CNC control, chip conveyor, tool setter, and live holders. Equipped with a 24" hydraulic chuck and 12-station turret and removable tool presetter.
Imperial
| Table Diameter | 24" |
| Table Load Capacity | 1,918 lb |
| Swing Diameter | 36.2" |
| Turning Height | 29.9" |
| Spindle Nose | A2-11 |
| Table Speed | 2,000 RPM |
| Main Motor | 50 hp |
| X - Axis Travel | 19.4" |
| Z - Axis Travel | 30.7" |
| Rapid Traverse Rate - X | 787 ipm |
| Rapid Traverse Rate - Z | 787 in/min. |
| C - Axis Indexing | .001 Degrees |
| Rotary Spindle Speed | 4,000 RPM |
| Rotary Spindle Horsepower | 10 hp |
| Turret Configuration | 12 station |
| Machine Weight | 20,723 lb |
FANUC I CNC CONTROL
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
CHIP CONVEYOR
EMBEDDED ETHERNET FUNCTION
SIGNAL TOWER
DOOSAN TOOL LOAD MONITORING
REMOVABLE TOOL SETTER
15" HYDRAULIC CHUCK
2 AXIAL AND 2 RADIAL LIVE HOLDERS
