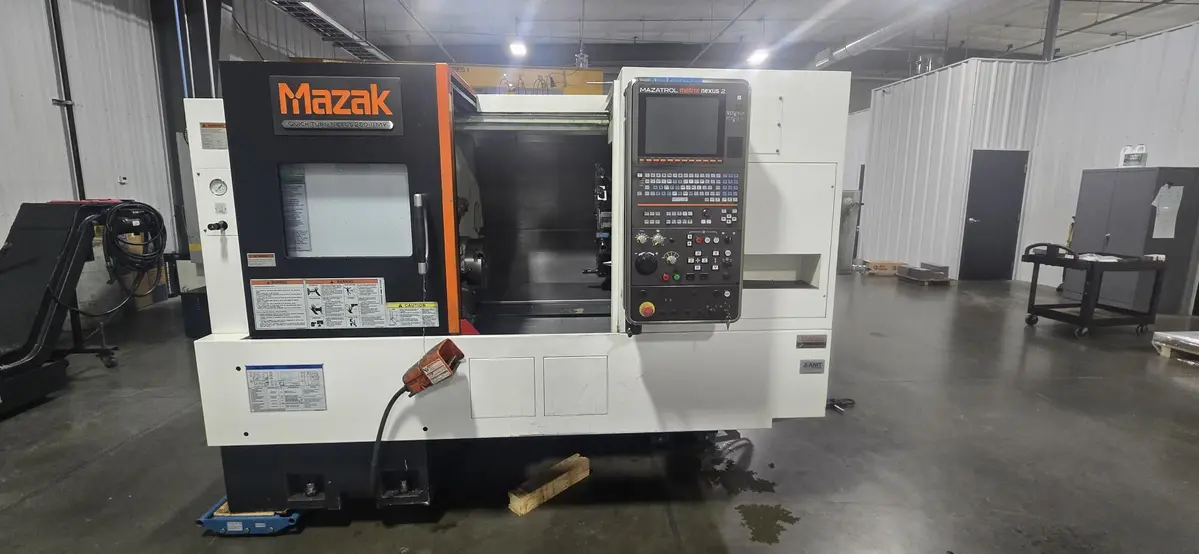

2013 MAZAK NEXUS QTN 250MYII CNC LATHE W/MILLING & Y AXIS
Have one to sell?
ConditionUsed
1 available
MAZAK NEXUS QTN 250MYII CNC Lathe, 2013 model, features Y-axis control, milling, 26.5" swing over bed, 22.7" turning length, 10" chuck, 4,000 RPM spindle, 12-station turret, and a 19" touchscreen. Equipped with auto tool eye, rigid tap, and chip conveyor.
MAZATROL MATRIX 2 CNC COLOR CONTROL
EIA/ISO INPUT FUNCTION
Y AXIS CONTROL
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
AUTO TOOL EYE
RIGID TAP ON THE MILLING HEAD
CHIP CONVEYOR SIDE DISCHARGE
(3) STANDARD ROTARY HEADS, AND ALL STANDARD STATIC HOLDERS
ALL AVAILABLE MANUALS
C-AXIS POSITIONING 0.0001 DEG.
PROGRAMMABLE TAILSTOCK
MAZAK TAPPING/BORING TORNADO (G130)
THREAD CUTTING FUNCTION, EIA PATTERN CYCLE
10" 3-JAW HYDRAULIC CHUCK SYSTEM
MAZAK NEXUS QTN 250MYII CNC Lathe, 2013 model, features Y-axis control, milling, 26.5" swing over bed, 22.7" turning length, 10" chuck, 4,000 RPM spindle, 12-station turret, and a 19" touchscreen. Equipped with auto tool eye, rigid tap, and chip conveyor.
Imperial
| Swing Over Bed | 26.5" |
| Turning Diameter | 14.7" |
| Turning Length | 22.7" |
| Distance Between Centers | 24" |
| Chuck Size 1 | 10" |
| Spindle Nose 1 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.46" |
| Bar Capacity 1 | 3" |
| Spindle Speeds 1 | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp |
| X1 - Axis Travel | 9" |
| Z1 - Axis Travel | 22.7" |
| Y1 - Axis Travel | 4" |
| C - Axis Indexing 1 | 0.001 |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1299 ipm |
| Rapid Traverse Rate - Y1 | 826 ipm |
| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp |
| Tailstock Quill Diameter | 3.94" |
| Tailstock Taper | MT 4 |
| Tailstock Quill Travel | 4.72" |
| Programmable Tailstock | 'Yes' |
| Tailstock Travel | 21.75 |
| Machine Weight | 11,530 lb |
| Control | CNC (MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL) |
| Weight | 0.00 |
MAZATROL MATRIX 2 CNC COLOR CONTROL
EIA/ISO INPUT FUNCTION
Y AXIS CONTROL
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
AUTO TOOL EYE
RIGID TAP ON THE MILLING HEAD
CHIP CONVEYOR SIDE DISCHARGE
(3) STANDARD ROTARY HEADS, AND ALL STANDARD STATIC HOLDERS
ALL AVAILABLE MANUALS
C-AXIS POSITIONING 0.0001 DEG.
PROGRAMMABLE TAILSTOCK
MAZAK TAPPING/BORING TORNADO (G130)
THREAD CUTTING FUNCTION, EIA PATTERN CYCLE
10" 3-JAW HYDRAULIC CHUCK SYSTEM
