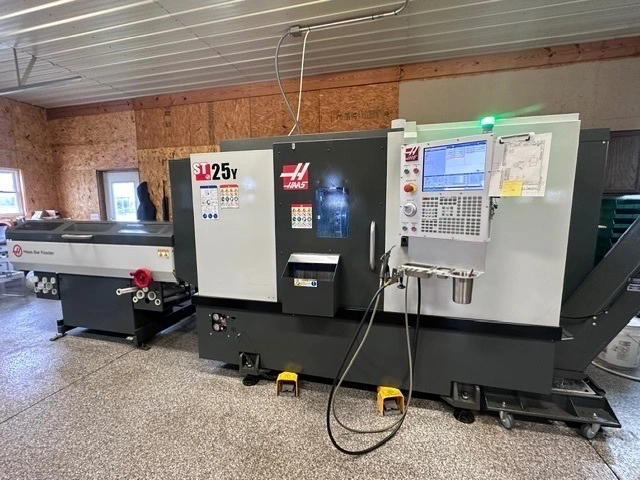

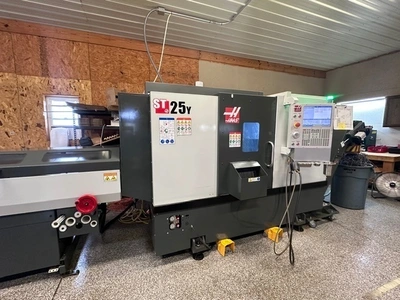

2022 HAAS ST 25YS CNC MULTI TASKING CENTER WITH Y AXIS, SUB SPINDLE & BARFEED
Have one to sell?
ConditionUsed
1 available
HAAS ST 25SY CNC lathe, ideal for precision machining with 21" swing over bed, 11.75" turning diameter, and 3,400 RPM spindle speeds. Includes HAAS CNC control, parts catcher, and 6000 RPM live tooling upgrade. Enhanced with features like WiFi camera and touch screen.
HAAS CNC CONTROL
PARTS CATCHER

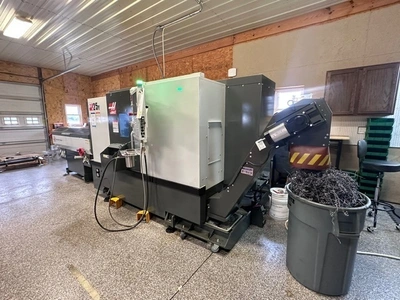

BELT TYPE CHIP CONVEYOR

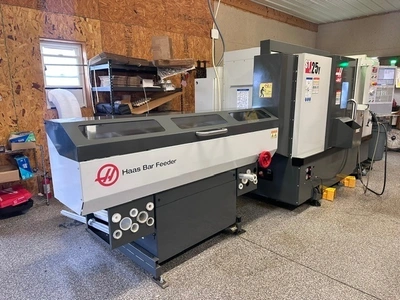

HAAS V2 BAR FEEDER 3"
VISUAL PART PROGRAMMING
USER DEFINED MACROS
55 GALLON COOLANT TANK
BMT TURRET
EARLY POWER FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAAS CONNECT REMOTE MONITORING
HAAS DROP
MEDIA DISPLAY M-CODE M130
RIGID TAPPING
SPINDLE ORIENTATION
TOUCH SCREEN CONTROL
WIFI CONNECTION
CONTROL CABINET COOLER
A2-5 FINISHING SUBSPINDLE
6000 RPM UPGRADE FOR LIVE TOOLING
HIGH PRESSURE COOLANT
AUTO TOOL PRESETTER
CHUCK AIRBLAST
SUB SPINDLE AIRBLAST
WIFI CAMERA
LOW VOLT
AUXILIARY COOLANT FILTER
CHIP TRAY FILTER KIT
COOLANT TANK OIL SKIMMER
HAAS ST 25SY CNC lathe, ideal for precision machining with 21" swing over bed, 11.75" turning diameter, and 3,400 RPM spindle speeds. Includes HAAS CNC control, parts catcher, and 6000 RPM live tooling upgrade. Enhanced with features like WiFi camera and touch screen.
Imperial
| Swing Over Bed | 21" |
| Turning Diameter | 11.75" |
| Turning Length | 22.5" |
| Chuck Size 1 | 10" |
| Spindle Nose 1 | A2-6 |
| Spindle Bore Diameter 1 | 3.5" |
| Bar Capacity 1 | 3" |
| Spindle Speeds 1 | 3,400 RPM |
| Spindle Horsepower 1 | 30 hp |
| Chuck Size 2 | 5.3" |
| Spindle Nose 2 | A2-5 |
| Spindle Speeds 2 | 6,000 RPM |
| X1 - Axis Travel | 8.4" |
| Z1 - Axis Travel | 22.5" |
| Y1 - Axis Travel | -2" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.001 |
| Rapid Traverse Rate - X1 | 945 ipm |
| Rapid Traverse Rate - Z1 | 945 ipm |
| Rapid Traverse Rate - Y1 | 472 ipm |
| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 6,000 RPM |
| Programmable Tailstock | 'No' |
| Machine Weight | 10,000 lb |
| Control | CNC (HAAS CNC CONTROL) |
| Dimensions | 130" x 78" x 77" |
| Weight | 12500 |
HAAS CNC CONTROL
PARTS CATCHER
BELT TYPE CHIP CONVEYOR
HAAS V2 BAR FEEDER 3"
VISUAL PART PROGRAMMING
USER DEFINED MACROS
55 GALLON COOLANT TANK
BMT TURRET
EARLY POWER FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAAS CONNECT REMOTE MONITORING
HAAS DROP
MEDIA DISPLAY M-CODE M130
RIGID TAPPING
SPINDLE ORIENTATION
TOUCH SCREEN CONTROL
WIFI CONNECTION
CONTROL CABINET COOLER
A2-5 FINISHING SUBSPINDLE
6000 RPM UPGRADE FOR LIVE TOOLING
HIGH PRESSURE COOLANT
AUTO TOOL PRESETTER
CHUCK AIRBLAST
SUB SPINDLE AIRBLAST
WIFI CAMERA
LOW VOLT
AUXILIARY COOLANT FILTER
CHIP TRAY FILTER KIT
COOLANT TANK OIL SKIMMER
